Husqvarna CO18H42STA (2004) Tractor

Model: CO18H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

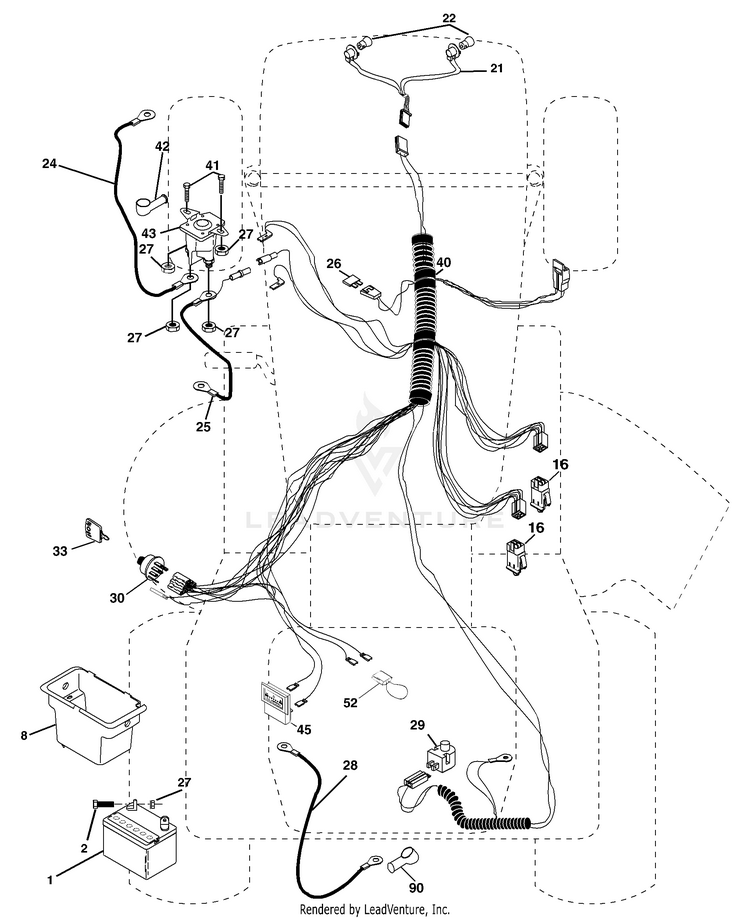

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Hd 1/4-20 Unc x 3/4 HUS-74760412
...
8
Box Battery HUS-176689
...
16
Switch, Interlock HUS-176138
...
21
Harness Asm Light W/4152j HUS-183759
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Battery 6 Ga 11" red HUS-4799J
...
25
Cable Battery 6 Ga w/16 wire red HUS-146147
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
28
Cable Ground 6 Ga 12" black HUS-4207J
...
29
Switch Plunger Normal Op Gray HUS-121305X
...
30
Switch Ign HUS-175566
...
33
Key Ign HUS-140401
...
40
Harness Ign HUS-179720
...
41
Bolt Blk. Fin Hex 1/4-20 Unc x 1/2 HUS-71110408
...
42
Cover Terminal Red HUS-131563
...
43
Solenoid HUS-178861
...
45
Ammeter Rectangular 6 Amp HUS-121433X
...
52
Protection Wire Loop HUS-141940
...
90
Cover Terminal HUS-180449
