Husqvarna CO185H42STA (2004) Tractor

Model: CO185H42STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

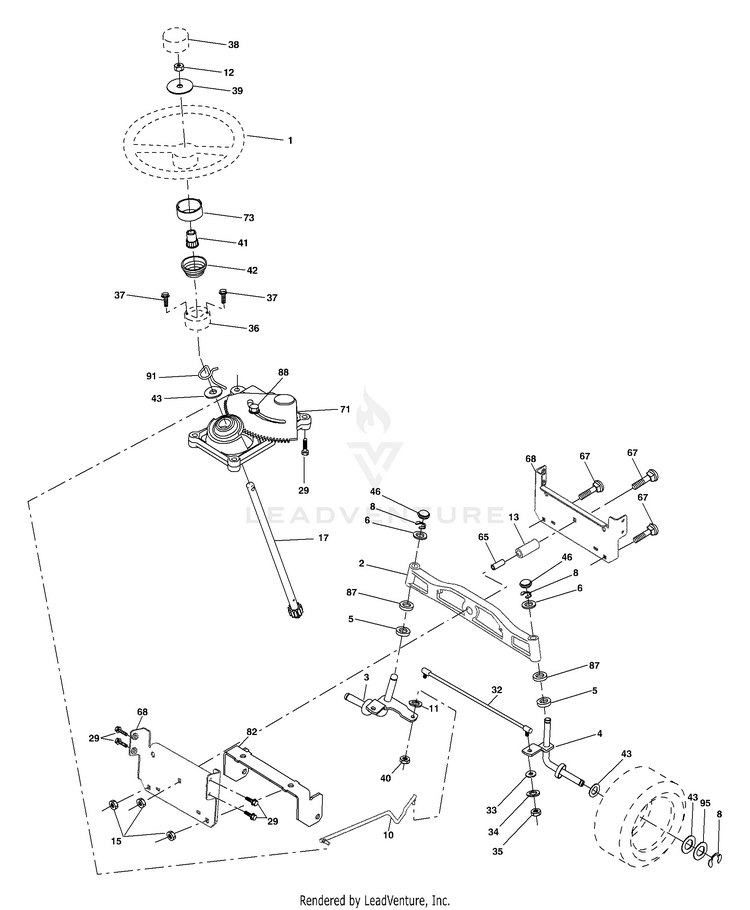

Steering Assembly

...
...
1
Wheel Steering HUS-159944X428
...
2
Axle Asm HUS-184706
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
8
Ring Klip #t5304-75 HUS-12000029
...
10
Link Drag HUS-175121
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
Nut Hex Jam Toplock 1/2-20 unf HUS-73940800
...
13
Spacer Bearing Axle Front HUS-136518
...
15
Nut Hex Flange Lock HUS-145212
...
17
Shaft Asm. Steering HUS-177883
...
29
Screw 3/8-16 x 3/4 HUS-17000612
...
32
Rod Tie HUS-171888
...
33
Washer 11/32 x 3/4 x 16 Ga. HUS-19111216
...
34
Washer Lock Hlcl Spr 5/16 HUS-10040500
...
35
Crownlock Nut 5/16-24 unf HUS-73540500
...
36
Bushing Strg HUS-155105
...
37
Screw HUS-152927
...
38
Insert Cap Strg Wh HUS-159946X428
...
39
Washer 9/16 ID x 1-1/2 OD 11Ga. HUS-19182411
...
40
Nut Crownlock 3/8-24 HUS-73540600
...
41
Adaptor Wheel Strg HUS-159945
...
42
Boot Steering HUS-163888X428
...
43
Washer 25/32 1 1/4 x 16 Ga. HUS-121749X
...
46
Cap Spindle HUS-184946X505
...
65
Spacer Brace Axle HUS-160367
...
67
Bolt, Rdhd Sq 3/8-16 unc x 2-1/4 HUS-72110618
...
68
Axle, Brace HUS-169827
...
71
Steering Asm. HUS-175146
...
73
Extension Steering Stealth HUS-160135X428
...
82
Bracket Susp. Chassis Front HUS-169835
...
87
Washer Flat .781 x 1-1/2 x .15 HUS-173966
...
88
Bolt Shoulder 7/16-20 unc HUS-175118
...
91
Clip Steering HUS-175553
...
95
Washer Harden .793 x 1.637 x .060 HUS-188967
