Husqvarna CO18542STB (2004) Tractor

Model: CO18542STB (2004)

Back To Assemblies

Save Part Not Listed?
product name

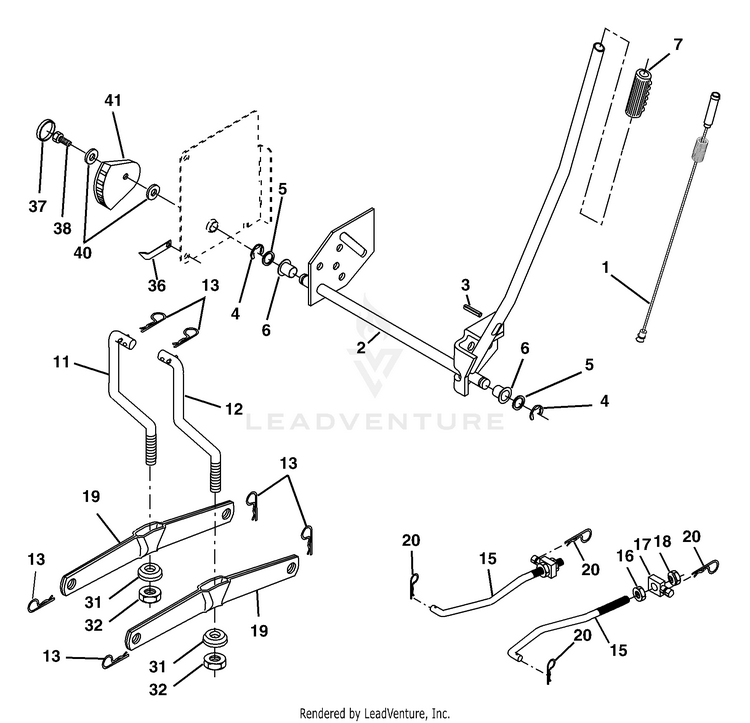

Lift Assembly

...
...
1
Plunger Assembly HUS-184432
...
2
Shaft Assembly, Lift HUS-159476
...
3
Pin, Groove HUS-188822
...
4
E-Ring HUS-12000002
...
5
Washer 21/32 x 1 x 21 Ga. HUS-19211621
...
6
Bearing, Nylon HUS-120183X
...
7
Grip, Handle, Fluted HUS-175830
...
11
Link, Lift, L.H. HUS-139865
...
12
Link, Lift, R.H. HUS-139866
...
13
Retainer Spring HUS-4939M
...
15
Link, Front HUS-173288
...
16
Nut, Hex, Jam 1/2-13 unc HUS-73350800
...
17
Trunnion HUS-175689
...
18
Locknut, Hex, with Washer Insert 1/2-13 unc HUS-73800800
...
19
Arm, Suspension, Rear HUS-139868
...
20
Retainer Spring HUS-163552
...
31
Bearing, Pvt, Lift HUS-169865
...
32
Nut, Crownlock 3/8-24 HUS-73540600
...
36
Pointer Height Indicator HUS-155097
...
37
Plug Hole HUS-123935X
...
38
Screw 5/16-18 x 1 HUS-17060516
...
40
Washer 11/32 x 1-1/2 10 Ga. HUS-19112410
...
41
Indicator Height HUS-155098
