Husqvarna CO18542STA (2004) Tractor

Model: CO18542STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

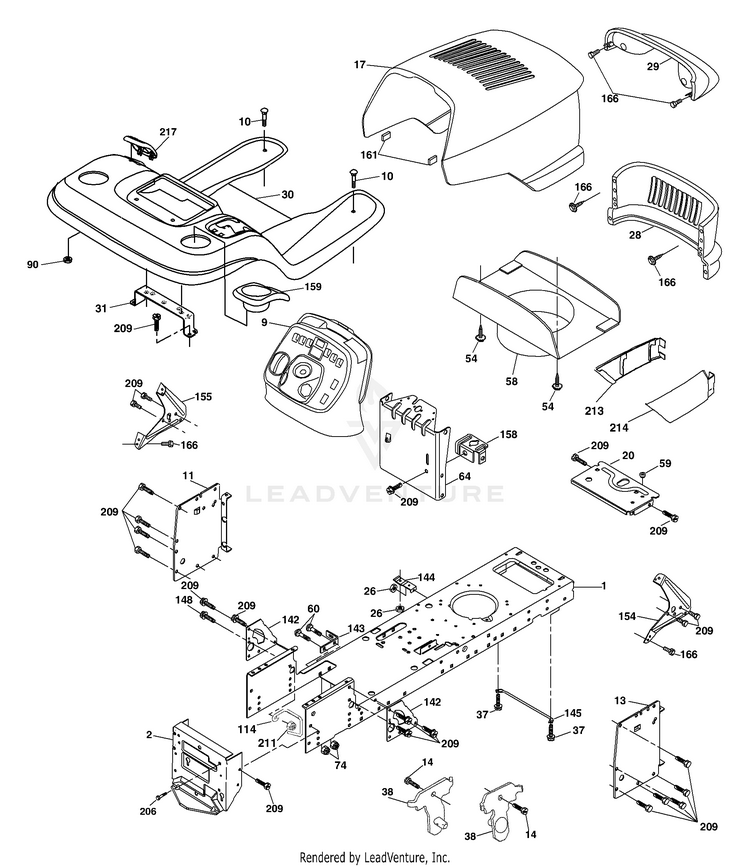

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
9
Dash HUS-161566X428
...
10
Bolt RDHD SQNK 3/8-16 x 1 HUS-72140608
...
11
Panel, Dash, LH HUS-167203
...
13
Panel, Dash, RH HUS-188702X010
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood Assembly HUS-175260X428
...
20
Plate Battery HUS-162026
...
26
Locknut, Hex, with Insert 3/8-16 unc HUS-73800600
...
28
Grille HUS-175289X428
...
29
Lens Bar HUS-161840
...
30
Fender/Footrest HUS-188572X428
...
31
Bracket, Fender/Support HUS-139976
...
37
Screw, Thdrol. 5/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm Pivot Mower Rear HUS-175710
...
54
Screw 8-18 x 7/8 HUS-161464
...
58
Duct Hood HUS-175351
...
59
Bushing HUS-187495
...
60
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 HUS-72140606
...
64
Dash Lower HUS-174997
...
74
Nut Crownlock 3/8-16 unc HUS-73680600
...
90
Nut Self Thrd Wshd 1/4 Zinc HUS-124346X
...
114
Keeper Belt Rear LH HUS-158112
...
142
Plate Reinforcement HUS-175702
...
143
Bracket Swaybar Chassis HUS-186689
...
144
Bracket Footrest HUS-175582
...
145
Rod Pivot Chassis/Hood HUS-156524
...
148
Screw 3/8-16 x 1-1/4 HUS-17060620
...
154
Bracket Dash Rh HUS-161897
...
155
Bracket Dash Lh HUS-161900
...
158
Parking Brake Bkrt HUS-162037
...
159
Cupholder HUS-179950X428
...
161
Bumper HUS-164655
...
166
Screw 10 x 3/4 Single Lead Hex HUS-191611
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
209
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
211
Nut Hexflange Lock HUS-145212
...
213
Skirt Grille LH HUS-169848X428
...
214
Skirt Grille RH HUS-169847X428
...
217
Console Fuel Window HUS-179132X428
