Husqvarna CO18542STA (2004) Tractor

Model: CO18542STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

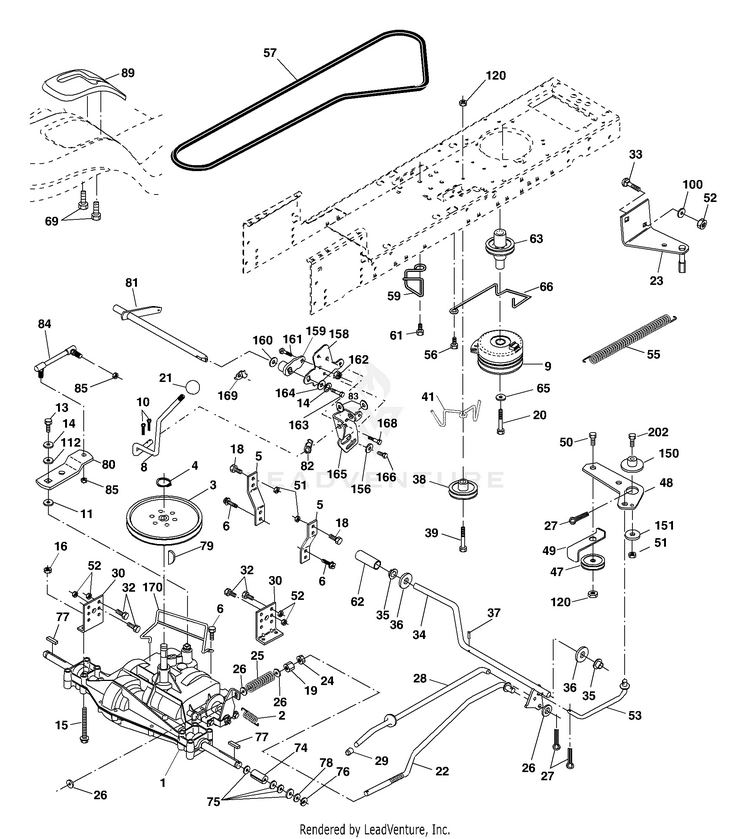

Ground Drive

...
...
2
Spring, Return, Brake HUS-146682
...
3
Pulley, Transaxle HUS-123666X
...
4
Ring, Retainer HUS-12000028
...
5
Strap, Torque HUS-121520X
...
6
Screw 5/16-18 x 3/4 HUS-17060512
...
8
Rod Shifter Fender STLT HUS-165866
...
9
Clutch HUS-160889
...
10
Pin, Cotter HUS-76020416
...
11
Washer, Shift Plate HUS-105701X
...
13
Bolt 1/4-28 UNF W/Patch Gr. 8 HUS-74550412
...
14
Washer Lock Hvy Helical HUS-10040400
...
15
Bolt Hex FLGHD 5/16-18 Gr. 5 HUS-74490544
...
16
Nut Lock Hx W/Ins 5/16-18 unc HUS-73800500
...
18
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 HUS-7478616
...
19
Nut HUS-73350600
...
20
Bolt 7/16-20 x 4-1/4 Gr. 5 HUS-150280
...
21
Knob HUS-106933X
...
22
Rod, Brake HUS-130804
...
23
Bracket Anti-Rotation HUS-171258
...
24
Nut HUS-73800600
...
25
Spring, Brake Rod HUS-106888X
...
26
Washer HUS-19131316
...
27
Pin HUS-76020412
...
28
Rod, Parking Brake HUS-175765
...
29
Cap, Parking Brake HUS-71673
...
30
Bracket, Transaxle HUS-169592
...
32
Bolt HUS-74760512
...
33
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 HUS-72140506
...
34
Shaft Assembly, Foot Pedal HUS-175578
...
35
Bearing, Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Roll Pin HUS-1572H
...
38
Pulley, Composite, Flat HUS-179114
...
39
Bolt Rdhd 3/8-16 unc x 2-3/4 HUS-72110622
...
41
Keeper, Belt, Idler HUS-175556
...
47
Pulley, Idler, V-Groove, Plastic HUS-127783
...
48
Bellcrank Clutch Grnd Drv Stl HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt HUS-72110612
...
51
Nut Crown Lock 3/8-16 unc HUS-73680600
...
52
Nut Crown Lock 5/16-18 unc HUS-73680500
...
53
Link, Clutch HUS-105710X
...
55
Spring, Clutch Return HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt, Ground Drive HUS-130801
...
59
Keeper, Belt, Center Span HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover, Pedal HUS-123533X
...
63
Pulley, Engine HUS-175414
...
65
Washer HUS-10040700
...
66
Keeper, Belt, Engine, Fool Proof HUS-154778
...
69
Screw Hex Wsh Hi-Lo 1/4-1/2 unc HUS-142432
...
74
Spacer, Axle HUS-137057
...
75
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
76
E-Ring HUS-12000001
...
77
Key, Square 2.0 x .1845/1865 HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
79
Key Woodruff HUS-2228M
...
80
Arm, Shift HUS-145090
...
81
Shaft Asm Cross Tapered 20 HUS-165593
...
82
Spring, Torsion HUS-165711
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
84
Link Transaxle HUS-166231
...
85
Nut, Nylock HUS-150360
...
89
Console, Shift, STLT HUS-188310X428
...
96
Retainer Spring 1" HUS-4497H
...
100
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
112
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
113
Strap Torque 90 Degrees HUS-127285X
...
120
Nut Lock Flg. 3/8-16 unc HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
156
Washer Srrted 5/16 ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Shift HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5 HUS-72140406
...
162
Nut Crownlock 1/4-20 unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20Unc x 1 Gr. 5 HUS-74780416
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 TT Yellow HUS-17490510
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening Lt HUS-165580
...
170
Keeper Belt Transaxle Gear HUS-187414
...
197
Nyliner Snap-In 5/8 ID HUS-169613
...
198
Washer Nyliner 7/8 ID x .105 Hd HUS-169593
...
202
Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5 HUS-72110614
