Husqvarna CO18542STA (2004) Tractor

Model: CO18542STA (2004)

Back To Assemblies

Save Part Not Listed?

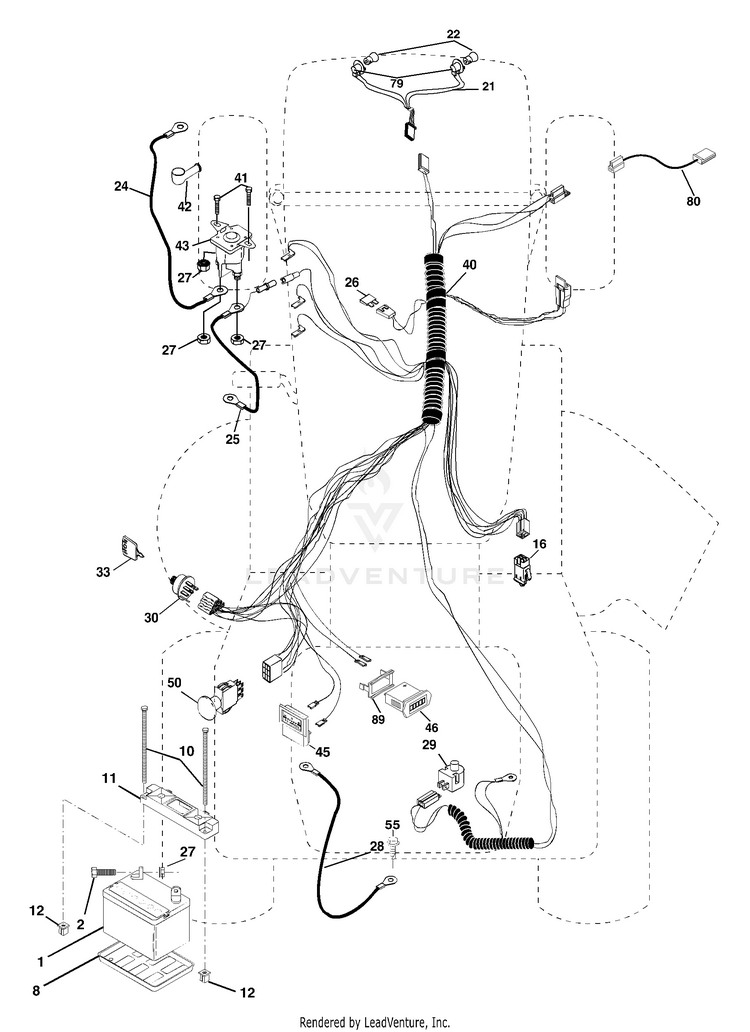

product name

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt, Hex 1/4-20 x 3/4 HUS-74760412
...
8
Tray, Battery HUS-7603J
...
10
Bolt, Battery, Front 1/4-20 x 7-1/2 HUS-145211
...
11
Holddown, Battery, Front HUS-150109
...
12
Nut, Push, Nylon, Battery, Front 1/4 HUS-145769
...
16
Switch, Interlock HUS-176138
...
21
Harness, Light HUS-175688
...
22
Bulb Light #1156 HUS-4152J
...
24
Cable Starter HUS-8860R
...
25
Cable HUS-146148
...
26
Fuse HUS-175158
...
27
Nut, Hex, Keps 1/4-20 unc HUS-73510400
...
28
Cable, Ground HUS-145491
...
29
Switch, Seat HUS-121305X
...
30
Switch, Ignition HUS-175566
...
33
Key HUS-140403
...
40
Harness, Ignition HUS-188031
...
41
Screw Thd Cut 1/4-20 x 1/2 HUS-17720408
...
42
Cover Terminal HUS-131563
...
43
Solinoid w/brass plunger HUS-178861
...
45
Ammeter HUS-122822X
...
46
Hourmeter HUS-169635
...
50
Switch, PTO HUS-174652
...
55
Screw, Thd. Roll. 5/16-18 x 1/2 HUS-17490508
...
79
Socket Asm Bulb Twistlock HUS-175242
...
80
Harness Clutch EXV HUS-146685
...
89
Bracket Snap-In Hourmeter HUS-169639
