Husqvarna CO18542STA (2004) Tractor

Model: CO18542STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

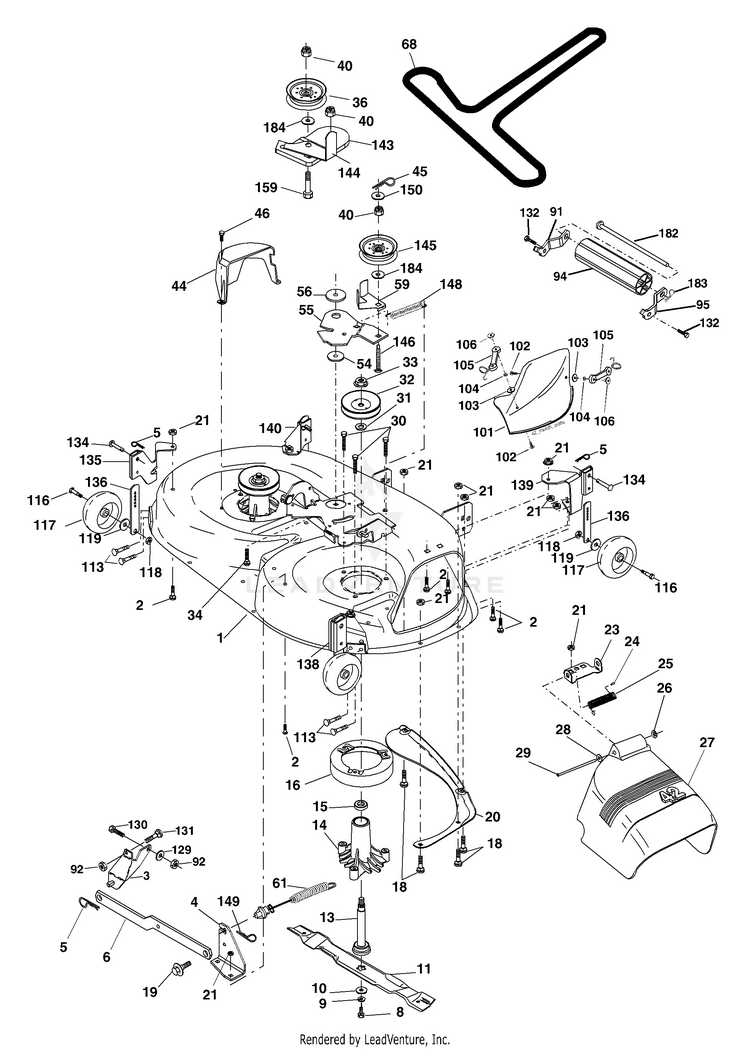

Mower Deck

...
...
1
Mower Housing HUS-182032
...
2
Bolt HUS-72140506
...
3
Bracket Assembly,Sway Bar, Fr. HUS-138017
...
4
Bracket Sway Bar 38/42" HUS-165460
...
5
Retainer Spring HUS-4939M
...
6
Bar Sway Deck HUS-178024
...
8
Bolt, Hex 3/8-24 x 1.25 Gr. 8 HUS-850857
...
9
Washer, Lock HUS-10030600
...
10
Washer, Hardened HUS-140296
...
11
Blade, 42" Mulching STD (For mulching mowers only) HUS-134149
...
11
Blade, 42" Mulching Premium (For better wear when mulching) HUS-139775
...
11
Blade, 42" Hi-Lift (For bagging or discharge) HUS-138971
...
13
Shaft Assembly, Mandrel, Vented (Incl. Key Number 6) HUS-137645
...
14
Housing, Mandrel, Vented HUS-128774
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mower Deck HUS-174493
...
18
Bolt, Carriage 5/16-18 x 5/8 HUS-72140505
...
19
Bolt, Shoulder HUS-132827
...
20
Baffle, Vortex HUS-159770
...
21
Nut, Crownlock 5/16-18 unc HUS-73680500
...
23
Bracket, Deflector HUS-177563
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Deflector HUS-123713X
...
26
Nut, Push HUS-110452X
...
27
Shield, Deflector HUS-130968X428
...
28
Washer 11/32 x 5/8 x 16 Ga. HUS-19111016
...
29
Rod, Hinge HUS-131491
...
30
Screw Thdrol Rolling Wsh Hd HUS-173984
...
31
Washer, Spacer HUS-187690
...
32
Pulley, Mandrel HUS-173436
...
33
Nut, Toplock, Flanged HUS-178342
...
34
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
36
Pulley, Idler, Flat HUS-173438
...
40
Nut, Lock Flg. 3/8-16 unc HUS-73900600
...
44
Guard, Mandrel, L.H. HUS-140088
...
45
Retainer HUS-4497H
...
46
Screw, Thd. Roll 1/4-20 x 5/8 HUS-137729
...
54
Washer, Hardened HUS-178515
...
55
Arm, Idler HUS-155046
...
56
Spacer, Retainer HUS-122052X
...
59
Guard, Tuv Idler HUS-173442
...
61
Spring Ext Elect Clutch HUS-174882
...
68
V-Belt HUS-1748 83
...
91
Bracket Roller Nose LH HUS-180532
...
92
Locknut, Hex W/Wsh 3/8-16 unc HUS-73800600
...
94
Roller Nose HUS-132264
...
95
Bracket Roller Nose RH HUS-180533
...
101
Cover Mulching 42" Black HUS-136420
...
102
Screw Truss Hd Phil10-24 x 5/8 HUS-71081010
...
103
Washer #10 HUS-19061216
...
104
Washer Lock HUS-10071000
...
105
Latch Asm Bagger HUS-160793
...
106
Nut Weld HUS-2029J
...
113
Screw 5/16-18 x 3/4 HUS-17060512
...
116
Bolt, Shoulder HUS-4898H
...
117
Wheel, Gauge HUS-165746
...
118
Nut, Crownlock 3/8-1 HUS-73930600
...
119
Washer 13/32 x 7/8 x 14 Ga. HUS-19121414
...
129
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
130
Bolt, Fin Hex 3/8-16 unc x 1Gr. 5 HUS-74780616
...
131
Bolt Rdhd Sqnk 3/8-16 unc x 1 HUS-72140608
...
132
Screw Hexwsh Th HUS-17000612
...
134
Pin Head Rivet HUS-156941
...
135
Bracket Asm. Wheel Gauge Rear LH HUS-159765
...
136
Bar Adj. Gauge Wheel HUS-155986
...
138
Bracket Asm. Wheel Gauge Rear RH HUS-159763
...
139
Bracket Asm. Wheel Gauge Front RH HUS-159767
...
140
Bracket Asm. Wheel Gauge Front LH HUS-159768
...
143
Bracket Arm Idler 42" HUS-157109
...
144
Keeper Belt 42" Clutch Cable HUS-173441
...
145
Pulley Idler Flat HUS-173437
...
146
Bolt Carraige Idler HUS-173443
...
148
Spring Return Idler HUS-169022
...
149
Retainer Spring Yellow Zinc HUS-165898
...
150
Washer 9/32 x 3/4 x 10 Ga. HUS-19091210
...
159
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 HUS-72140614
...
182
Rod Roller Nose HUS-179126
...
183
Retainer Spring HUS-163552
...
184
Washer 3/8 HUS-19131410
...
xx
Mandrel Assembly (Includes housing, shaft and shaft hardware only-pulley not included) HUS-130794
...
xx
Replacement Mower, Complete (Std. Deck-Order separately mulch cover, guage wheels and nose roller components key nos. 101 - 106, 5, 116 - 119, 134, 136 and 91, 94, 95, 132, 182, 183) HUS-181542
