Husqvarna CO1842STA (2004) Tractor

Model: CO1842STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

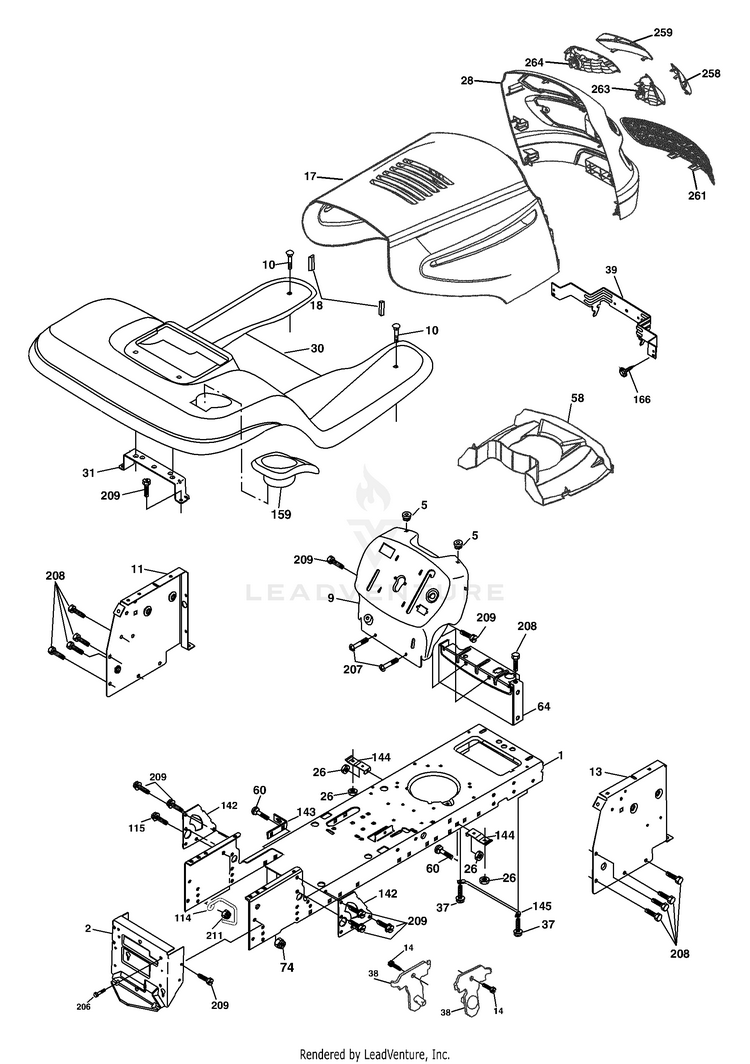

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash HUS-187846X012
...
10
Bolt Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash Lh HUS-174996
...
13
Panel Dash Rh HUS-179174X010
...
14
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490608
...
17
Hood HUS-183394X428
...
18
Bumper Hood HUS-184921
...
26
Nut Lock Hex W/Ins 3/8-16 unc HUS-73800600
...
28
Grille (Includes #'s 258, 259, 261, 263, and 264) HUS-1838 28
...
30
Fender/Footrest HUS-175692X428
...
31
Bracket Support Fender HUS-139976
...
37
Screw Thdrol 6/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-175710
...
39
Bracket Pivot HUS-174714
...
58
Duct Intake HUS-184322
...
60
bolt 3/8-16 unc x 3/4 HUS-72140606
...
64
Dash Lower STLT HUS-154798
...
74
Nut Crownlock 3/8-16 unc HUS-73680600
...
114
Keeper Belt Rear LH HUS-158112
...
115
Screw Thdrol 3/8-16 x 1-1/4 HUS-17490620
...
142
Plate Reinforcement STLT HUS-175702
...
143
Bracket Swaybar Chassis HUS-186689
...
144
Bracket Footrest HUS-175582
...
145
Rod Pivot Chassis/Hood HUS-156524
...
159
Cupholder HUS-155123X428
...
166
Screw 10 x 3/4 Single Lead Hex HUS-191611
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdr. 3/8-16 x 3/4 HUS-17000612
...
211
Nut Hexflange Lock HUS-145212
...
258
Lens RH HUS-183835X599
...
259
Lens LH HUS-183834X599
...
261
Insert Grille HUS-183829X428
...
263
Bezel Grille RH HUS-183833
...
264
Bezel Grille LH HUS-183832
...
xx
Plug Btn Blk .359 HUS-5479J
...
xx
Plug Dome Plastic HUS-187801
