Husqvarna CN1842STA (2004) Tractor

Model: CN1842STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

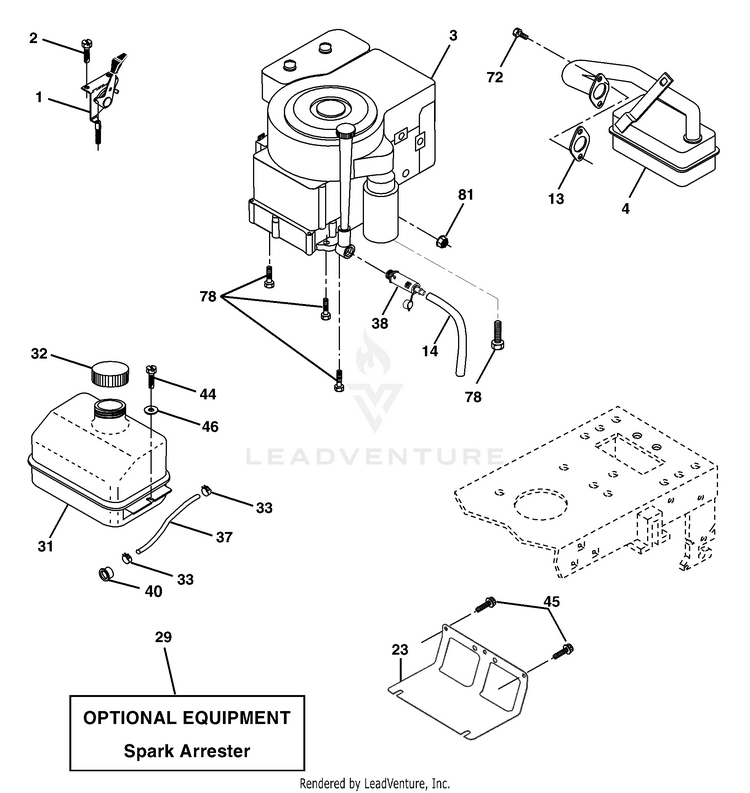

Engine

...
...
1
Control, Throttle HUS-170551
...
2
Screw, Hex Head, Thread Cutting 1/4-20 x 1/2 HUS-17720408
...
4
Muffler HUS-137352
...
13
Gasket HUS-165291
...
14
Tube Drain Oil Easy HUS-148456
...
23
Shield Brn/Dbr Guard HUS-169837
...
29
Arrestor, Spark HUS-137180
...
31
Tank, Fuel HUS-184900
...
32
Cap Assembly, Fuel HUS-140527
...
33
Clamp, Hose HUS-123487X
...
37
Line, Fuel HUS-137040
...
38
Plug Drain Oil Easy HUS-181654
...
40
Bushing, Snap, Fuel Line HUS-124028X
...
44
Screw, Hex Washer Head, Thd., Roll. 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hxwsh Thdr 3/8-16 x 3/4 HUS-17000612
...
46
Washer 9/32 x 7/8 x 16 Ga HUS-19091416
...
72
Screw Socket Head 5/16-18 x 1 HUS-183906
...
78
Screw 3/8-16 x 1-1/4 HUS-17060620
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
