Husqvarna CN1842STA (2004) Tractor

Model: CN1842STA (2004)

Back To Assemblies

Save Part Not Listed?
product name

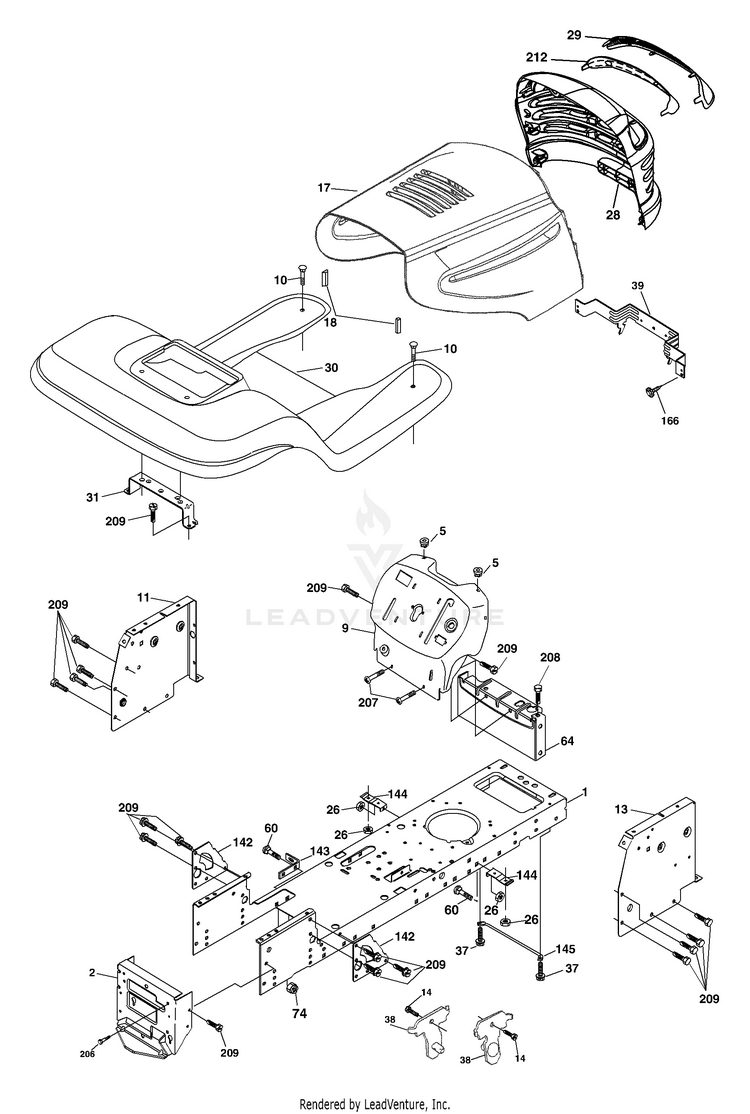

Chassis And Enclosures

...
...
1
Chassis HUS-174619
...
2
Drawbar HUS-176554
...
5
Bumper Hood/Dash HUS-155272
...
9
Dash HUS-187846X012
...
10
Bolt, Carriage 3/8-16 x 3/4 HUS-72140608
...
11
Panel, Dash, L.H. HUS-174996
...
13
Panel, Dash, R.H. HUS-179174X010
...
14
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
17
Hood HUS-183393X428
...
18
Bumper Hood HUS-184921
...
26
Nut HUS-73800600
...
28
Grille/Lens Asm. (Includes Key Nos. 29 and 212) HUS-183826
...
29
Lens Grille HUS-183824X599
...
30
Fend/Ftrest HUS-188571X428
...
31
Bracket, Fender Support HUS-139976
...
37
Screw Thdrol 5/16-18 x 1/2 HUS-17490508
...
38
Pivot Bracket Assembly, Rear HUS-175710
...
39
Bracket Pivot Laser Lt HUS-174714
...
60
Bolt Rdhd Sqnk 3/8-16 UNC x 1 HUS-72140606
...
64
Dash Lower STLT HUS-154798
...
74
Nut Crownlock 3/8-16 UNC HUS-73680600
...
142
Plate Reinforcement STLT HUS-175702
...
143
Bracket Swaybar Chassis HUS-186689
...
144
Bracket Pnt Footrest STLT HUS-175582
...
145
Rod Pivot Chassis/Hood HUS-156524
...
166
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
206
Bolt Shoulder 5/16-18 TT HUS-170165
...
207
Screw Thdrol 5/16-18 x 1/2 Tytt HUS-17670508
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hexwsh Thdr. 3/8-16 x 3/4 HUS-17000612
...
212
Insert Lens Reflective HUS-183823
...
xx
Plug, Button HUS-5479J
...
xx
Plug, Dome Plastic HUS-187801
