Husqvarna CH14542B (1996) Tractor

Model: CH14542B (1996)

Back To Assemblies

Save Part Not Listed?
product name

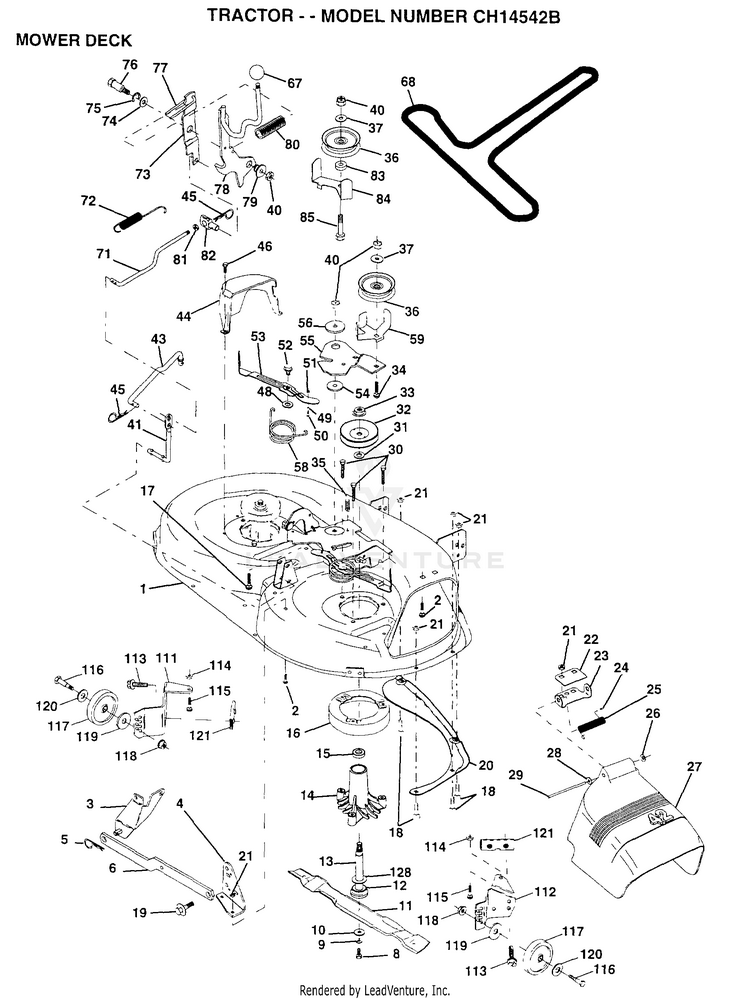

MOWER DECK

...
...
1
DECK.WELD.42. HUS-144393
...
2
BOLT HUS-72140506
...
3
BRKT ASM SWAY BAR HUS-138017
...
4
BRKT DECK SW BAR HUS-138440
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE.42"" HIPERF" HUS-138498
...
12
BEARING.BALL HUS-129895
...
13
SUB= 137646 HUS-137645
...
14
HSG ASM MANDREL HUS-128774
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
17
BOLT RDHD 3/8-16 HUS-72110610
...
18
BOLT HUS-72140505
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
SUB= 918136888 HUS-136888
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRKT HUS-134753
...
23
DEFLECTOR BRKT HUS-131267
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SPRING TORSION HUS-123713X
...
26
NUT PUSH M HUS-110452X
...
27
DEFLECTOR.SHIELD HUS-130968
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
SUB= 157722 HUS-138776
...
31
WASHER HUS-129963
...
32
PULLEY.MANDREL.42 HUS-153535
...
33
SUB= 139729 HUS-137266
...
34
BOLT HUS-72110614
...
35
XMAS TREE FASTNER HUS-133835
...
36
FLAT IDLER PULLEY HUS-131494
...
37
WASHER HUS-19131316
...
40
SUB= 73690600 HUS-73680600
...
41
PIVOT ROD HUS-133551
...
43
ROD CLUTCH W/NIBS HUS-140083
...
44
GUARD MAND LH BLK HUS-140088
...
45
RETAINER M HUS-4497H
...
46
SCREW.1/4-20X5/8 HUS-137729
...
48
HARD SMALL WASHER HUS-133944
...
49
SUB= 151785 HUS-133940
Schematic Image Zoomed
