Husqvarna CH1136A (1999 & Before) Tractor

Model: CH1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

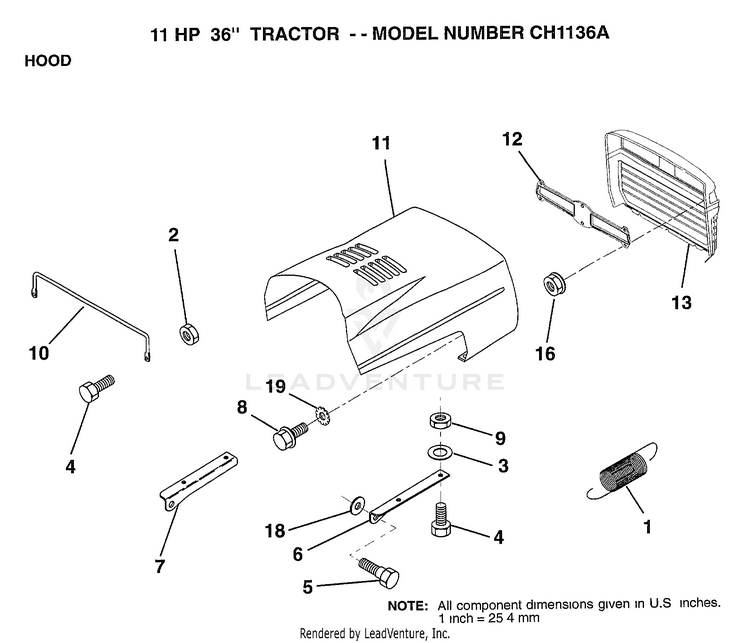

11HP 36" TRACTOR/HOOD

...
...
1
EXT SPRING HUS-124657X
...
2
NUT HUS-73510400
...
3
WASHER HUS-19091416
...
4
SUB= 74780414 HUS-74780412
...
5
SUB= 139888 HUS-126675X
...
6
BRKT HOOD RH HUS-122549X
...
7
BRKT HOOD LH HUS-122548X
...
8
SUB= 17521312 HUS-17521310
...
9
NUT HUS-73800400
...
10
"BRACE,HOOD" HUS-123693X
...
11
HOOD HUS-132918X505
...
12
LENS T HUS-127178
...
13
GRILL (BLACK) HUS-134232X428
...
16
NUT HUS-124346X
...
18
WASHER HUS-19111116
...
19
LOCKWASHER GT HUS-11030400
