Husqvarna CEORA Robotic Lawn Mower

Model: CEORA

Back To Assemblies

Save Part Not Listed?
product name

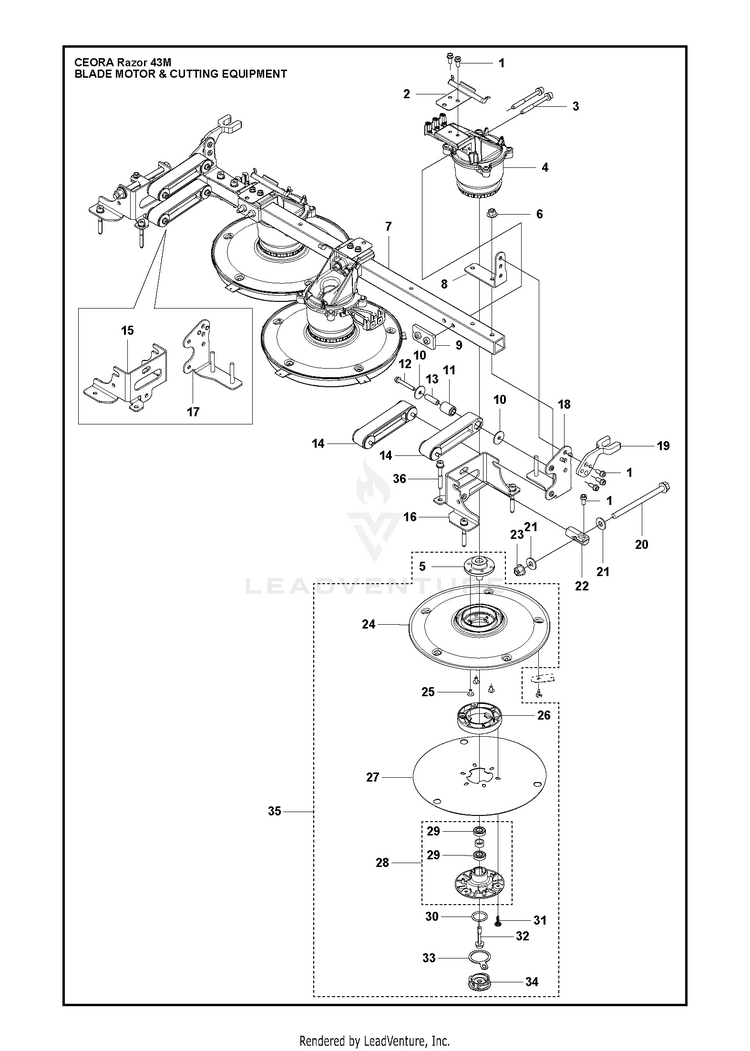

BLADE MOTOR & CUTTING EQUIPMENT

...
...
15
BRACKET HEIGHT ADJUSTMENT RIGH Bracket height adjustment right HUS-599936402
...
17
BRACKET GABLE RIGHT Bracket Gable right HUS-599936504
...
3
SCREW ISO 10644 M6X60-10.9-S1 Screw HUS-529791403
...
7
BEAM 25X25X3 Beam HUS-531022402
...
29
BALL BEARING 2 RS,TIGHT CLEAR Ball bearing HUS-535075703
...
10
WASHER 5.5X22X1.5 ST ZPB Washer HUS-503230072
...
9
PLATE SUPPORT WITH NUTS Plate support with nuts HUS-531022701
...
11
BUSHING SILENTBLOCK Bushing silentblock HUS-599690301
...
13
SLEEVE D8-D5 L=25 Sleeve HUS-529856201
...
32
RETAINER SCREW - CUTTING DISC Retainer HUS-599535101
...
5
HUB, CUTTING MOTOR Hub HUS-599412302
...
27
SKID PLATE P3 Skid plate HUS-599412901
...
16
BRACKET HEIGHT ADJUSTMENT LEFT Bracket height adjustment left HUS-599936401
...
12
SCREW Screw HUS-525755109
...
22
BRACKET LINK NUT ANGLE ADJUSTM Bracket link nut angle adjustment HUS-599605901
...
14
LINK ARM HEIGHT ADJUSTMENT PAR Link arm HUS-598028101
...
26
RING SKID PLATE Ring skidplate HUS-598409301
...
31
SCREW 14MM Screw HUS-575543314
...
8
SUPPORT GABLE Support Gable HUS-531022602
...
6
NUT FLANGE Nut HUS-576645703
...
29
BALL BEARING BALL BEARING 535 Ball bearing, Tube 50 pcs HUS-593080801
...
4
MOTOR ASSY MOTOR ASSY 14.5 STA Cutting motor HUS-597599301
...
36
SCREW ISO 10644 M6X45-10.9-S1 Screw HUS-529791402
...
35
NEEDS DESCRIPTION US HUS-536326210
...
30
O-RING 20X2,5 MM O-ring HUS-585297501
...
34
CAP SKID HUB Cap HUS-598409201
...
18
BRACKET GABLE LEFT Bracket gable left HUS-599936503
...
24
CUTTING DISC P3 Blade disc HUS-598408801
...
35
NEEDS DESCRIPTION HUS-536326201
...
33
STRAP CAP Strap Cap HUS-599533701
...
20
SCREW ISO 15071 M8X110 8.8 ZN/ Screw HUS-529948901
...
21
WASHER ROUND 8.4X20X2 NYLON Washer HUS-531093601
...
2
BRACKET MOTOR ASSY Bracket HUS-599568801
...
19
BRACKET HEIGHT ADJUSTMENT LIFT Bracket height adjustment lifter HUS-599304301
...
28
BEARING HOUSING ASSY SKID PLAT Bearing housing assy HUS-599412401
...
25
SCREW HEXAGON SOCKET BUTTON HE Screw HUS-590508701
...
1
SCREW KIT 4 PACK Screw HUS-575532001
...
23
NUT FLANGE Nut HUS-576645704
