Husqvarna CEORA Robotic Lawn Mower

Model: CEORA

Back To Assemblies

Save Part Not Listed?

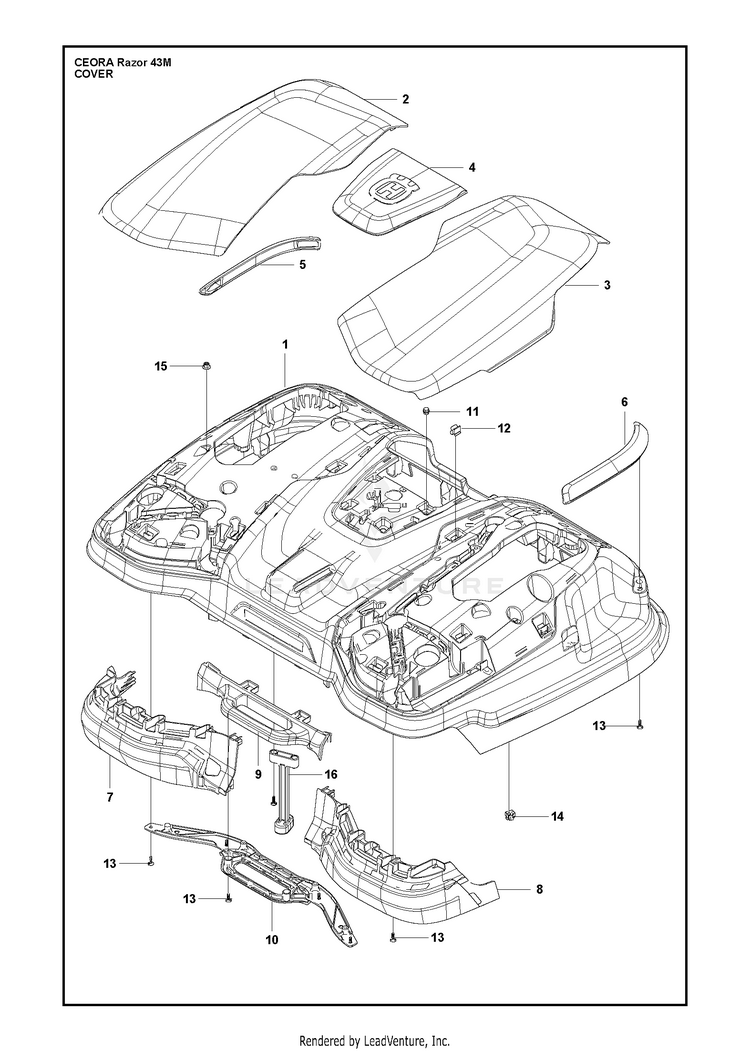

product name

COVER

...
...
12
Clips Clip HUS-593778401
...
8
BUMPER Bumper front left HUS-598003801
...
4
COVER ASSY LOGO PLATE Top cover center HUS-598004001
...
6
HANDLE Side handle left HUS-598003301
...
10
HANDLE Front handle HUS-598003201
...
2
COVER Top cover right HUS-598004201
...
11
MAGNET Magnet HUS-593778501
...
3
COVER Top cover left HUS-598004101
...
7
BUMPER Bumper front right HUS-598003901
...
13
SCREW ITXPANT Screw HUS-574450101
...
9
HANDLE Front handle HUS-598003101
...
5
HANDLE Side handle right HUS-598003401
...
16
SUPPORT PROTECTION PLATE Support HUS-599679801
...
15
NUT FLANGE Nut HUS-576645703
...
14
INSERT SCREW BLOCK Insert HUS-598004501
...
1
BODY CUTTING DECK Body HUS-598002901
