Husqvarna CEORA Robotic Lawn Mower

Model: CEORA

Back To Assemblies

Save Part Not Listed?
product name

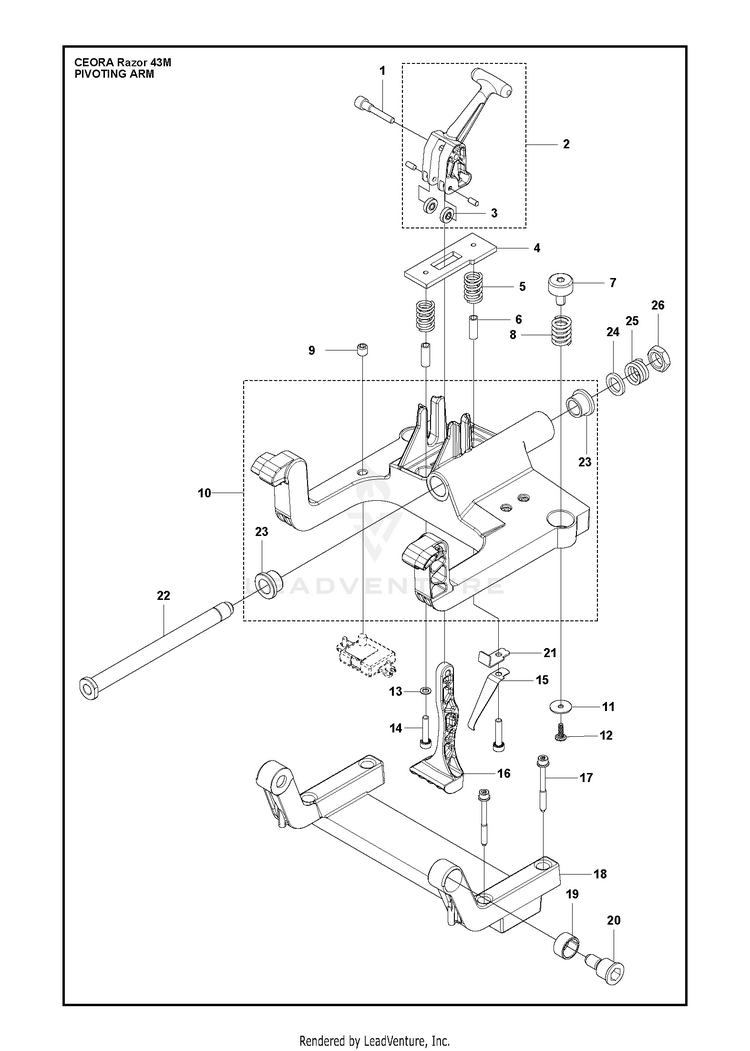

PIVOTING ARM

...
...
17
SCREW ISO 10644 M6X60-10.9-S1 Screw HUS-529791403
...
2
BRACKET LOCKING LEVER ASSY Lever HUS-599606201
...
9
SCREW IHSETM HEXAGON SOCKET SE Screw HUS-599831001
...
25
SPRING AXIAL DAMPER Spring HUS-534998801
...
3
WHEEL Wheel HUS-534209601
...
8
SPRING HORIZONTAL DAMPER COLOU Spring HUS-531249501
...
11
WASHER 5.5X22X1.5 ST ZPB Washer HUS-503230072
...
20
SCREW Bearing Hinge Interface HUS-597909302
...
18
BRACKET INTERFACE CUTTING UNIT Bracket interface cutting unit HUS-597907301
...
13
WASHER 6.5X11 Washer HUS-503230005
...
19
BUSHING PIVOT INTERFACE Bushing HUS-598008201
...
12
SCREW ITXPANT Screw HUS-574450101
...
26
HEXAGON THIN NUT Nut HUS-731432401
...
16
HOOK LOCK TO EXCENTER Hook lock to excenter HUS-597908501
...
21
SUPPORT SPRING LIMITER Support HUS-535589401
...
7
COVER HORIZONTAL DAMPER Cover HUS-599154001
...
6
SLEEVE EXCENTER PLATE Sleeve HUS-598024101
...
15
SPRING EXCENTER HOOK Spring excenter hook HUS-599504601
...
24
WASHER ISO 8738 16X24X3 200HV Washer HUS-535014601
...
14
SCREW ITXSCM M6X30 T27 10.9 Z Screw HUS-525762503
...
1
JOINT PIN TO EXCENTER Joint HUS-598014401
...
4
PLATE EXCENTER SUPPORT PLATE Excenter support plate HUS-597951301
...
23
BUSHING 16X22X16 PLASTIC Bushing HUS-536813401
...
22
SHAFT Shaft HUS-599504301
...
5
SPRING EXCENTER PLATE COLOUR Spring HUS-531249401
...
10
BRACKET INTERFACE + BUSHING Bracket HUS-599606102
