Husqvarna CEORA (CEORA 546 EPOS) Robotic Lawn Mower

Model: CEORA (CEORA 546 EPOS)

Back To Assemblies

Save Part Not Listed?
product name

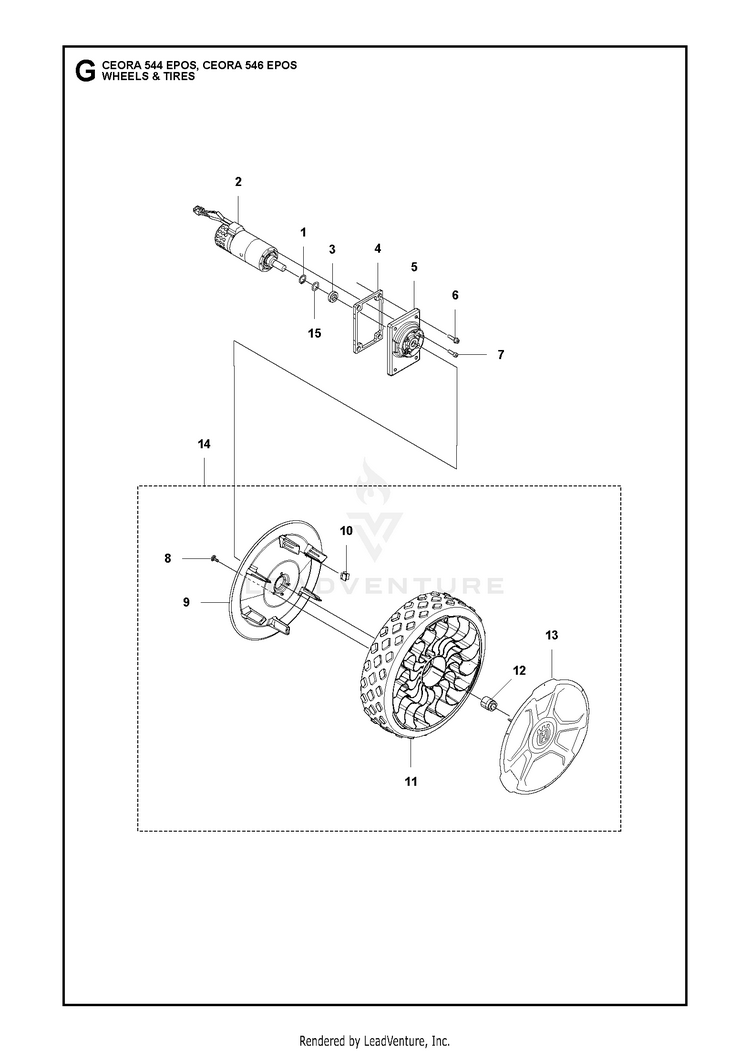

WHEELS & TIRES

...
...
6
SCREW Screw HUS-598570801
...
1
RETAINING RING SGA 15 Circlip HUS-735311700
...
11
WHEEL DIAM 355 STD TREAD Drive wheel HUS-536888701
...
2
WHEEL MOTOR 2 STEP DRIVE MOTOR Wheel motor HUS-597497501
...
10
Clips Clip HUS-593778401
...
3
RADIAL SEAL 15X25X7 Radial seal HUS-599714401
...
9
COVER WHEEL Cover HUS-597976101
...
7
SCREW Screw HUS-725532901
...
4
GASKET MOTOR FLANGE Gasket HUS-599142701
...
12
COLLET TRANTORQUE MINI 15MM Collect HUS-599786001
...
14
WHEEL KIT REAR STD TREAD Drive wheel kit HUS-535590201
...
5
FLANGE DRIVE MOTOR Flange HUS-598867601
...
8
SCREW ITXPANT Screw HUS-574450101
...
13
HUB CAP Hub cap wheel HUS-597976201
...
15
O-RING O-ring HUS-740431300
