Husqvarna CD52PZT - 967019201 (2012-03) Accessories And Tool

Model: CD52PZT - 967019201 (2012-03)

Back To Assemblies

Save Part Not Listed?
product name

MOWER DECK / CUTTING DECK

...
...
1
w /DECALS ORG HUS-579412101
...
2
HUS-575658402
...
3
BLADE REAR DISCHARGE/MULCH C13 HUS-586198810
...
4
BRKT, L.H. CORNER BLK HUS-575647802
...
5
BRKT, R.H. CORNER BLK HUS-575647902
...
6
HUS-579226901
...
7
AXLE HUS-535428702
...
8
PULLEY, 52 HUS-539112506
...
9
GSPW PULLEYS HUS-597087101
...
10
PULLEYS HUS-525598202
...
11
Pulleys HUS-510015102
...
12
IDLER.ARM.BLACK HUS-525464402
...
13
HUS-575729602
...
14
PLUG HUS-544166201
...
15
BEARING HOUSING HUS-535428901
...
16
BEARING, BALL HUS-539112050
...
17
BALL BEARING HUS-738220519
...
18
BEARING, IDLER ARM HUS-510263701
...
19
BEARING, IDLER PIVOT HUS-522729701
...
20
SPRING, TORSION, IDLER HUS-525310901
...
21
BELT.GUIDE.BLACK HUS-574262102
...
22
Belt Keepers HUS-574262202
...
23
BELT SHIELD LT HUS-539112508
...
24
BELT SHIELD RT HUS-539112509
...
25
ROLLER HUS-539002472
...
26
ROLLER, GAUGE .635 BORN HUS-574169601
...
27
SHIELD DUST HUS-510254502
...
28
Shields HUS-596840301
...
29
KEY HUS-506533501
...
30
SPACER HUS-535428801
...
31
KEY RETAINER HUS-539112609
...
32
SPACER, IDLER BEARINGS HUS-510264201
...
33
SPACER, IDLER PIVOT HUS-525465601
...
34
BUSHING, BLADE HUS-539132778
...
35
IDLER BUSHING HUS-539103295
...
36
HUS-575782202
...
37
STRAP, SHORT BLACK HUS-575558702
...
38
Tubes HUS-574196402
...
39
TOP DUST CAP HUS-539108450
...
40
DECAL.DECK.6MIL.EURO.NOSTEP NO STEP HUS-581724301
...
41
DECAL, BELT DRIVE BELT DRIVE WARN HUS-539105744
...
42
DECAL, EURO SEVERING SEVERING HUS-539105746
...
43
DECAL, 132 132 HUS-539112536
...
44
DECAL, BELT ROUTING BELT ROUTING HUS-574437301
...
45
HUS-575789801
...
46
Screws HUS-510022302
...
47
Bolts HUS-595901501
...
48
Bolts HUS-596435701
...
49
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
50
Bolts HUS-596435401
...
51
Bolts HUS-596564401
...
52
HCS 7/16-14 X 7 GR5 ZD HUS-539132470
...
53
HCS M12 X 1.75 X 50 GR8.8 ZD HUS-539132480
...
54
HCS M12 X 1.75 X 60 GR5 ZD HUS-539132479
...
55
HCS M8 X 1.25 X 50 GR8.8 ZD HUS-539132494
...
56
SCREW 1/4 X 5/8 HUS-539990362
...
57
HHFS 5/16-18 X 3/4 HUS-525464701
...
58
Hardware HUS-574202002
...
59
Bolts HUS-596337801
...
60
HUS-579227001
...
61
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
62
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
63
GSPW Nuts HUS-521996502
...
64
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
65
NUT 7/16C CENTERLOCK HUS-539990839
...
66
BLIND RIVET NUT HUS-506916203
...
67
WASHER, 3/8 THICK HUS-522023401
...
68
WASHER-.533IDX1.37OD HUS-539115550
...
69
WASHER-1.06IDX1.63ODX.06 HUS-539127099
...
70
Washers HUS-596770301
...
71
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
73
WASHER HUS-506792302

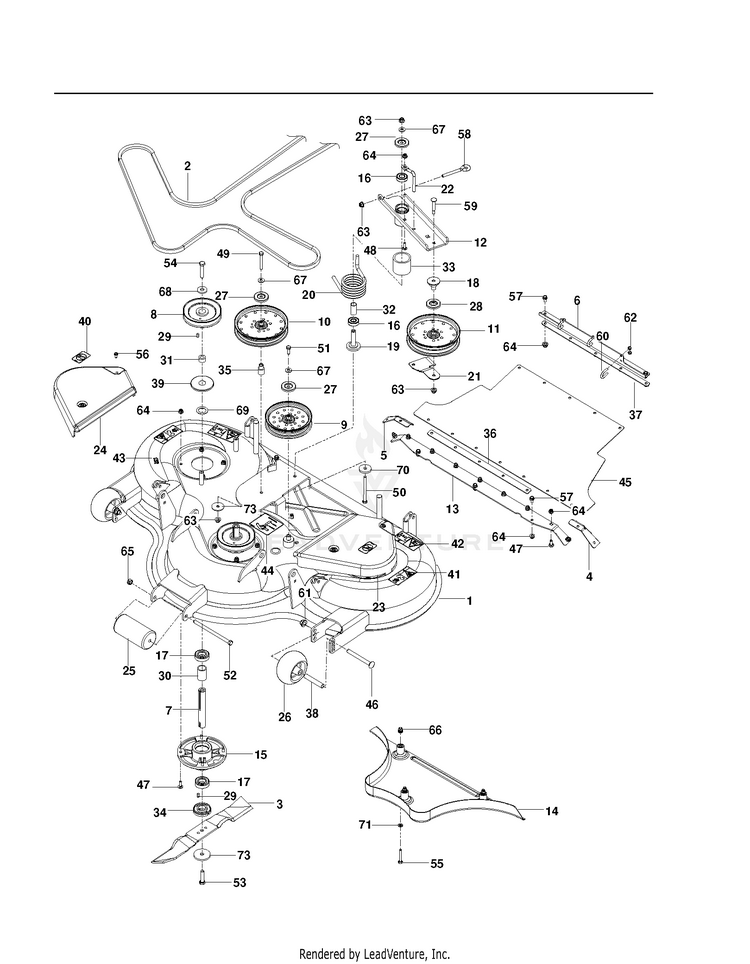

Schematic Image Zoomed
