Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

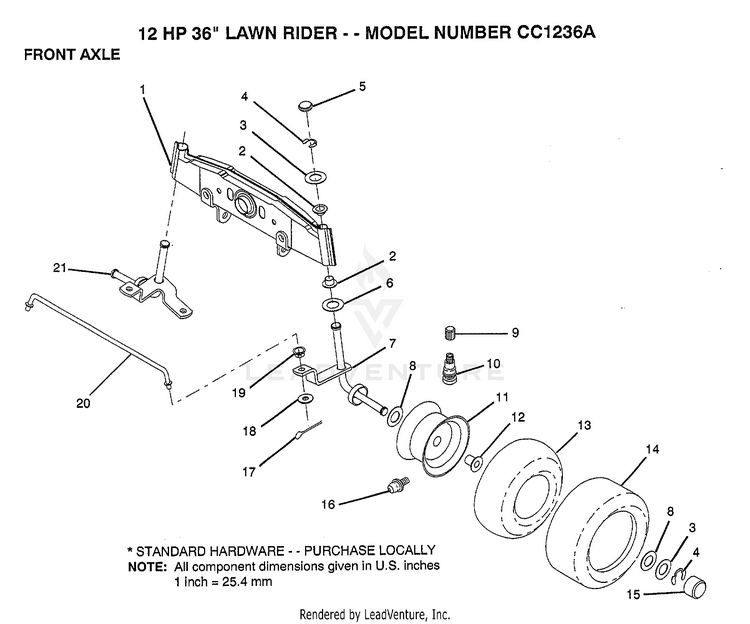

12HP 36" LAWN RIDER/FRONT AXLE

...
...
1
"AXLE,FRT" HUS-128543
...
2
NYLINER HUS-121922X
...
3
WASHER HUS-121748X
...
4
RING HUS-12000029
...
5
CAP HUS-121232X
...
6
WASHER .T HUS-6266H
...
7
SPINDLE RH HUS-121919X
...
8
WASHER HUS-121749X
...
9
VALVE CAP HUS-59192
...
10
VALVE STEM LT HUS-65139
...
11
SUB= 137237X427 HUS-122394X311
...
12
"FLANGE, BEARING" HUS-9040H
...
13
TUBE.5.3/4.5/6 HUS-59904
...
14
SUB= 123410X HUS-124142X
...
15
HUB CAP HUS-104757X
...
16
FITTING LT HUS-278H
...
17
COTTER PIN HUS-76020412
...
18
WASHER HUS-19131316
...
19
BUSHING.DRAGLINK HUS-126847X
...
20
ROD TIE HUS-121924X
...
21
SPINDLE LH HUS-121916X
