Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

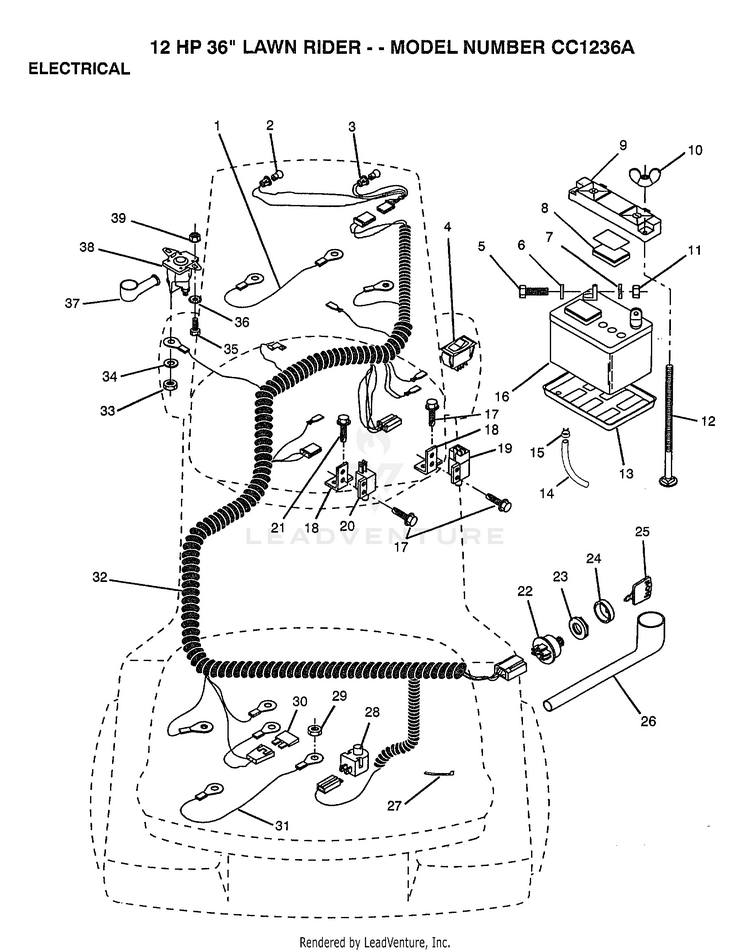

12HP 36" LAWN RIDER/ELECTRICAL

...
...
1
CABLE LTV HUS-105002X
...
2
SUB= 4152J HUS-7662J
...
3
SUB= 136850 HUS-127441X
...
4
SWITCH LT HUS-110712X
...
5
BOLT LT HUS-74760412
...
6
WASHER HUS-19091016
...
7
LOCKWASHER HUS-10040400
...
8
CAP BATTERY HUS-121300X
...
9
SUB= 150109 HUS-102476X
...
10
SUB= 146525 HUS-123198X
...
11
SUB= 50675 HUS-73220400
...
12
BOLT HUS-72240460
...
13
"TRAY T, BATTERY" HUS-7603J
...
14
SUB= 109238X HUS-105687X
...
15
HOSE CLAMP T HUS-109596X
...
16
SUB= 123888X HUS-121310X
...
17
SCREW HUS-17021008
...
18
BRACKET LT HUS-108236X
...
19
SWITCH INTERLOCKT HUS-109553X
...
20
SWITCH-INTER. GT HUS-104445X
...
21
SCREW HUS-17211008
...
22
SUB= STD365402 HUS-4406R
...
23
NUT IGNITION HUS-124211X
...
24
SUB= 141226 HUS-123620X
...
25
KEY HUS-122147X
...
26
COVER IGNITION SW HUS-124083X
...
27
WIRE TIE HUS-7192 J
...
28
SWITCH SEAT HUS-121305X
...
29
NUT HUS-73510500
...
30
FUSE HYT HUS-108824X
...
31
SUB= 2955J HUS-596J
...
32
HARNESS IGNITION HUS-124190X
...
33
NUT HUS-73350400
...
34
SUB= 10040400 HUS-10090400
...
35
BOLT HUS-74780408
...
36
LOCKWASHER HUS-11050400
...
37
SUB= 154336 HUS-719J
...
38
SUB= 146154 HUS-109081X
...
39
NUT HUS-73510400
...
xx
MANUAL NLA HUS-131572
...
xx
SUB= 127661 HUS-127661X
...
xx
SHEET INSTR LT HUS-101539X
