Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

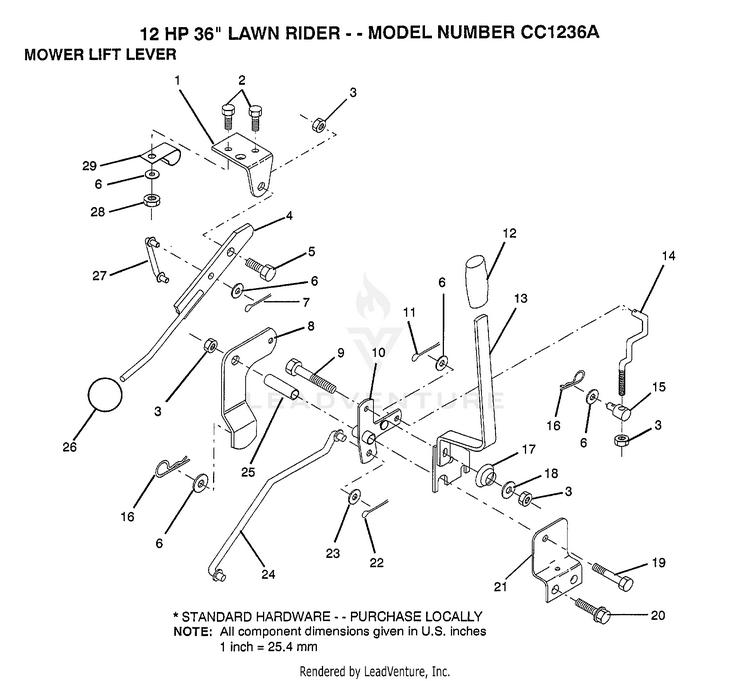

12HP 36" LAWN RIDER/MOWER LIFT LEVER

...
...
1
BRKT CLUTCH HUS-122018X
...
2
BOLT HUS-74780408
...
3
SUB= 73690600 HUS-73680600
...
4
CLUTCH LEVER AS HUS-123417X
...
5
"BOLT, SHOULDER LT" HUS-106451X
...
6
WASHER HUS-19131316
...
7
SUB= 3145 HUS-76020312
...
8
CLUTCH ARM ASS'Y HUS-123491X
...
9
BOLT HUS-74760636
...
10
"BELLCRANK,LIFT" HUS-121930X
...
11
COTTER PIN HUS-76020412
...
12
GRIP HANDLE HUS-122027X
...
13
"HDLE,LIFT T" HUS-127028
...
14
"LINK,LIFT FRT" HUS-127359
...
15
SUB= 142028 HUS-7078J
...
16
SPRING.RETAINER HUS-4921H
...
17
SPRING COMPRESSIO HUS-123496X
...
18
WASHER T HUS-19131212
...
19
BOLT HUS-74760644
...
20
SCREW LT HUS-17490508
...
21
"BRKT,MOWER HGT" HUS-121929X
...
22
PIN COTTER 1/8 HUS-76020416
...
23
WASHER HUS-19171616
...
24
"ROD,MOWER LIFT " HUS-121934X
...
25
TUBE SPACER HUS-121933X
...
26
KNOB T(3/8 HOLE) HUS-106932X
...
27
"LINK,MOWER LIFT" HUS-123671X
...
28
SUB= 73690400 HUS-73680400
...
29
"CLIP,INSULATOR" HUS-126470X
