Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

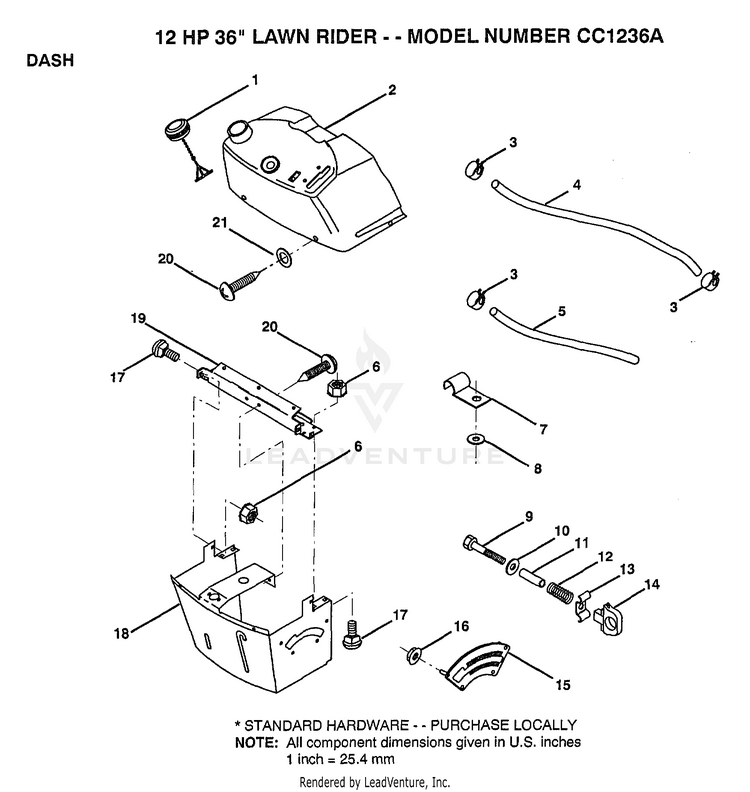

12HP 36" LAWN RIDER/DASH

...
...
1
SUB= 141523 HUS-122015X
...
2
SUB= 138392 HUS-130914
...
3
HOSE CLAMP HUS-123487X
...
4
SUB= 295J HUS-8544R
...
5
FUEL LINE T HUS-8548R
...
6
NUT, HEX HUS-7351048
...
7
CLIP T HUS-2751R
...
8
WASHER PM HUS-19091216
...
9
BOLT HUS-74760428
...
10
WASHER HUS-19091413
...
11
SPACER SPLIT HUS-121249X
...
12
SPRING M HUS-3720R
...
13
"KNOB,HGT RETAINER" HUS-126450X
...
14
KNOB HUS-126115X
...
15
ADJUSTER QUAD HUS-122023X
...
16
NUT HUS-124346X
...
17
BOLT HUS-72110404
...
18
SUPT ASSY DASH HUS-130745
...
19
SUB= 134744 HUS-130722
...
20
SUB= 818000408 HUS-130052
...
21
WASHER HUS-19090816
