Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

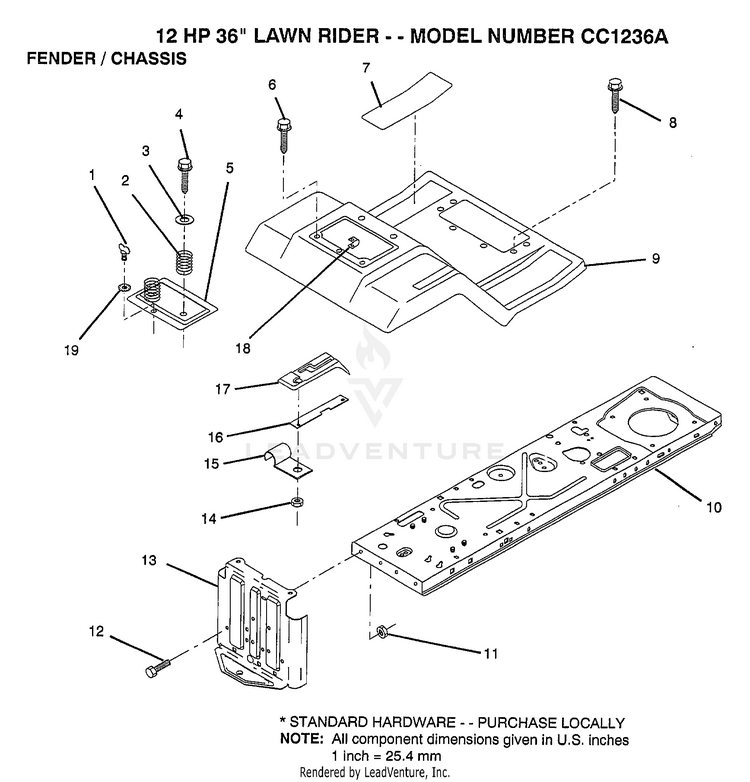

12HP 36" LAWN RIDER/FENDER/CHASSIS

...
...
1
STUD.1/4.TURN HUS-123650X
...
2
SPRING COMPRESSIO HUS-124181X
...
3
WASHER HUS-19132012
...
4
SCREW HUS-17490612
...
5
FENDER DOOR HUS-122008X496
...
6
SCREW LT HUS-17490508
...
7
PAD FOOTREST HUS-124144X
...
8
SCREW HUS-17490512
...
9
FENDER/FOOTREST HUS-124332X496
...
10
FRAME ASS'Y HUS-123645X
...
11
SUB= 73690500 HUS-73680500
...
12
BOLT HUS-74760512
...
13
DRAWBAR HUS-127880
...
14
NUT HUS-124346X
...
15
"CLIP,INSULATOR" HUS-126470X
...
16
SUB= 139783 HUS-124602X
...
17
SUB= 126995X428 HUS-126995X
...
18
RECEPTACLE LT HUS-105839X
...
19
RETAINER LT HUS-105838X
...
xx
SUB= 133796 HUS-106974X
...
xx
SUB= 138272 HUS-126712X
