Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

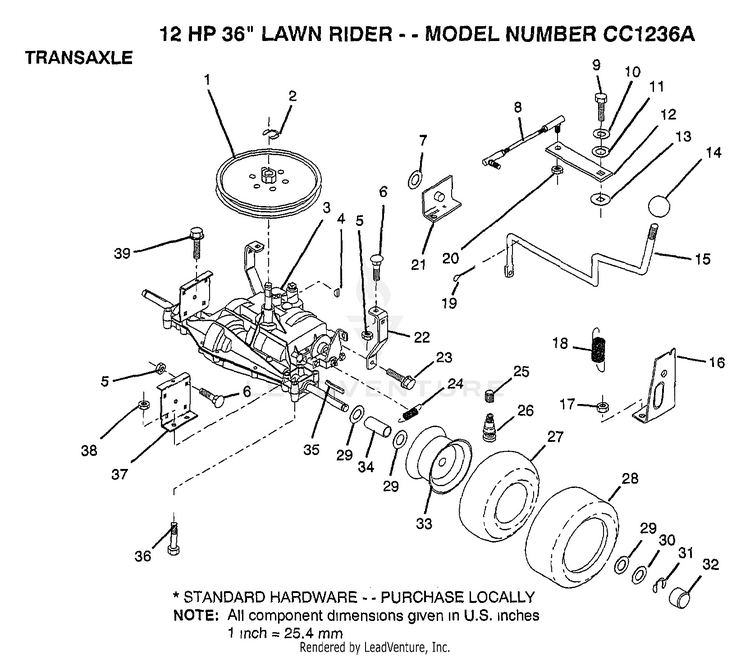

12HP 36" LAWN RIDER/TRANSAXLE

...
...
1
PULLEY HUS-123385X
...
2
SUB= 2267J HUS-12000028
...
3
SUB= 137366 HUS-123655X
...
4
SUB= 2228M1 HUS-2228M
...
5
SUB= 73690500 HUS-73680500
...
6
BOLT HUS-72140506
...
7
WASHER HUS-19171616
...
8
"LINK,SHIFT" HUS-123632X
...
9
SUB= 74550412 HUS-71040412
...
10
LOCKWASHER HUS-10040400
...
11
WASHER LT HUS-19091210
...
12
ARM SHIFT HUS-123484X
...
13
WASH-SHFT PLT LT HUS-105701X
...
14
KNOB T (1/2-HOLE) HUS-106933X
...
15
"ROD,SHIFT" HUS-128215
...
16
"SUPT,HDLE RH" HUS-128084
...
17
NUT HUS-73510500
...
18
"SPRING,EXT" HUS-128085
...
19
PIN COTTER 1/8 HUS-76020416
...
20
NUT.LOCK.5/16-24 HUS-73810500
...
21
"SUPT,HDLE SHT LH" HUS-124600X
...
22
"STRAP,TORQUE" HUS-123378X
...
23
SCREW HUS-17490512
...
24
SUB= 146682 HUS-110422X
...
25
VALVE CAP HUS-59192
...
26
VALVE STEM LT HUS-65139
...
27
TUBE.16X6.5/7.5-8 HUS-8134H
...
28
SUB= 122075X HUS-124143X
...
29
WASHER HUS-121749X
...
30
WASHER HUS-121748X
...
31
E-RING LT HUS-12000001
...
32
HUB CAP HUS-104757X
...
33
SUB= 123412X427 HUS-123412X311
...
34
SPACER HUS-123409X
...
35
SQUARE KEY HUS-123583X
...
36
BOLT HUS-74760644
...
37
"BRKT,TRANSAXLE" HUS-123377X
...
38
SUB= 73690600 HUS-73680600
...
39
SCREW LT HUS-17490508
