Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

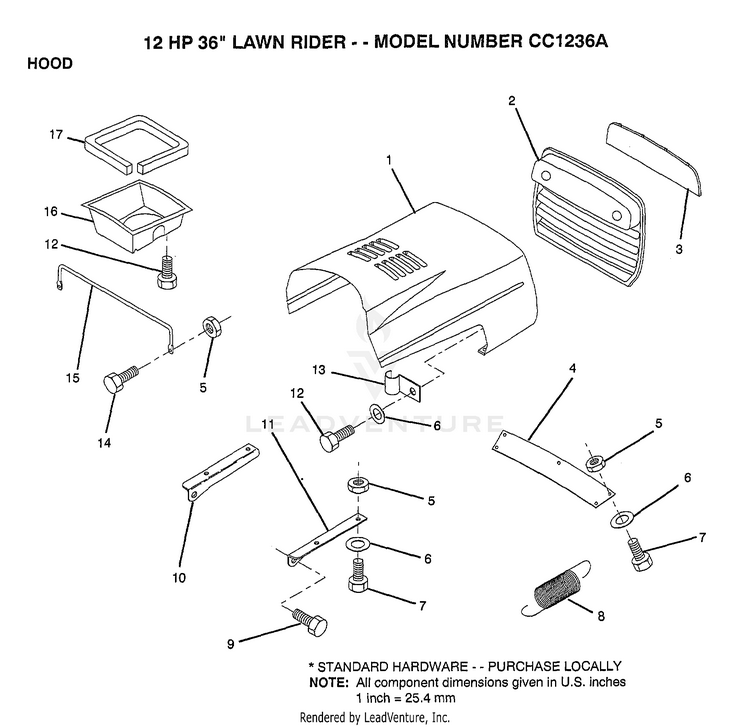

12HP 36" LAWN RIDER/HOOD

...
...
1
SUB= 132918X496 HUS-122032X497
...
2
GRILL HUS-127029X
...
3
LENS HUS-122035X
...
4
GRILL STRAP HUS-122550X497
...
5
NUT HUS-73510400
...
6
WASHER HUS-19091016
...
7
BOLT HUS-74780410
...
8
EXT SPRING HUS-124657X
...
9
SUB= 139888 HUS-126675X
...
10
BRKT HOOD LH HUS-122548X
...
11
BRKT HOOD RH HUS-122549X
...
12
SUB= 17521312 HUS-17411310
...
13
CLIP T HUS-2751R
...
14
SUB= 74780414 HUS-74780412
...
15
"BRACE,HOOD" HUS-123693X
...
16
"DUCT,AIR" HUS-123840X
...
17
FOAM STRIP LT HUS-120537X
...
xx
"DECAL,LIGHT BOX" HUS-126860X
