Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

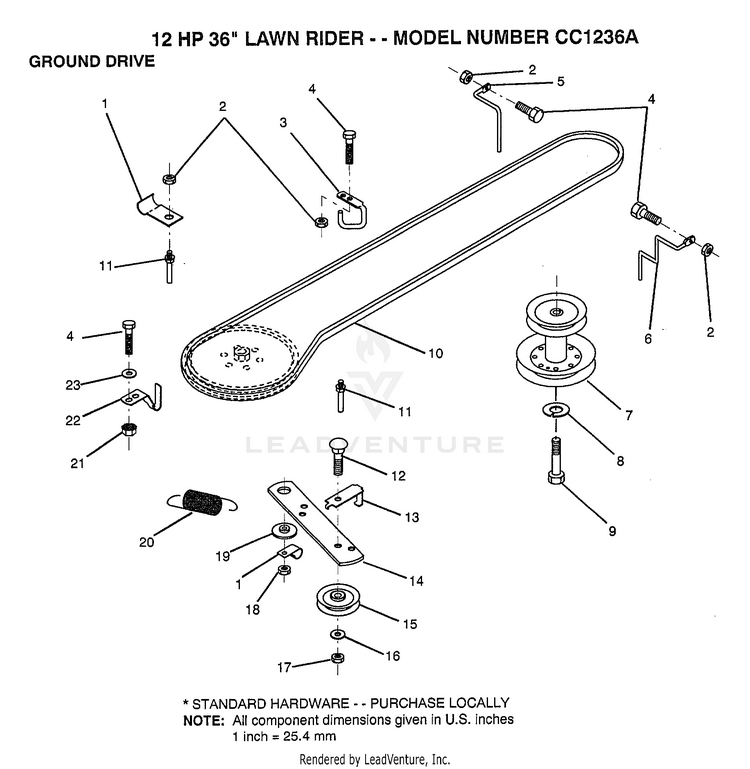

12HP 36" LAWN RIDER/GROUND DRIVE

...
...
1
"CLIP,INSULATOR" HUS-126471X
...
2
SUB= 73690500 HUS-73680500
...
3
"KEEPER,FRA DR BEL" HUS-123404X
...
4
BOLT HUS-74760512
...
5
SUB= 532131204 HUS-131204
...
6
SUB= 532131205 HUS-131205
...
7
SUB= 135893 HUS-123400X
...
8
LOCKWASHER HUS-10040700
...
9
BOLT HUS-71130720
...
10
BELT HUS-124525X
...
11
"KEEPER,DRIVE BELT" HUS-123405X
...
12
BOLT HUS-72140612
...
13
"KEEP,IDLER DR BEL" HUS-123396X
...
14
SUB= 140911 HUS-123395X
...
15
SUB= 123674X HUS-4859J
...
16
WASHER HUS-19131316
...
17
LOCKNUT HUS-73930600
...
18
SUB= 73690600 HUS-73680600
...
19
SPACER RETAINER HUS-122052X
...
20
SUB= 532131459 HUS-131459
...
21
NUT HUS-73510500
...
22
"KEEPER,DR BELT " HUS-123891X
...
23
WASHER HUS-19111016
