Husqvarna CC1236A (1991) Tractor

Model: CC1236A (1991)

Back To Assemblies

Save Part Not Listed?
product name

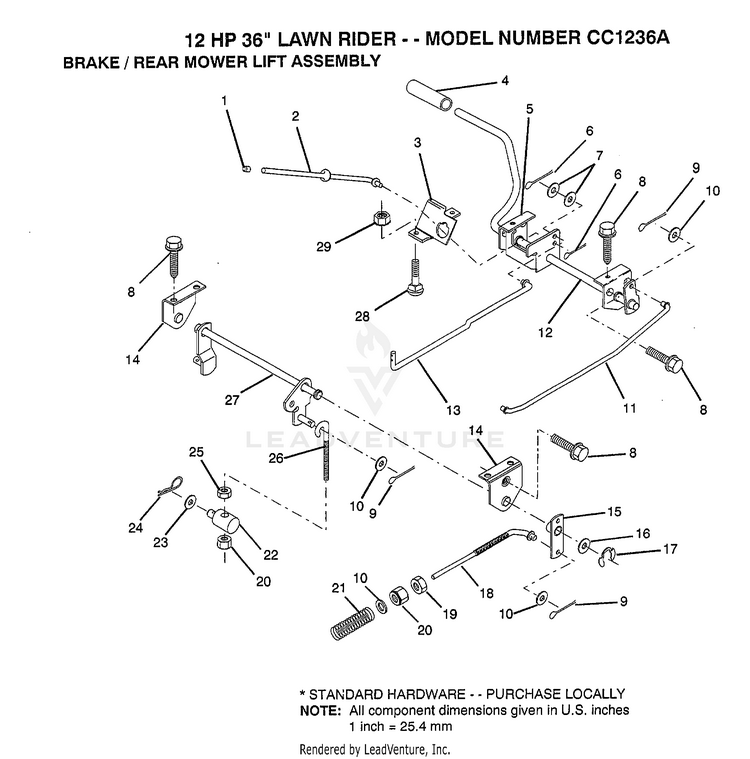

12HP 36" RIDER/BRAKE/REAR MOWER LIFT

...
...
1
PLUNGER CAP T HUS-71673
...
2
"ROD,PARK BRAKE" HUS-123436X
...
3
"BRKT,PARK BRAKE" HUS-123437X
...
4
PEDAL COVER T HUS-8883R
...
5
"BRKT,CLU PEDAL LH" HUS-122504X
...
6
SUB= 3145 HUS-76020312
...
7
WASHER HUS-19131016
...
8
SCREW LT HUS-17490508
...
9
COTTER PIN HUS-76020412
...
10
WASHER HUS-19131316
...
11
"ROD,FRT BRAKE" HUS-123543X
...
12
SUB= 139933 HUS-129567
...
13
"ROD,CLUTCH" HUS-123394X
...
14
"BRKT,LIFT SHAFT" HUS-121978X
...
15
BRAKE PIVOT ARM HUS-123641X
...
16
WASHER T HUS-19251816
...
17
KLIP RING HUS-12000034
...
18
SUB= 532131460 HUS-131460
...
19
NUT HUS-73350600
...
20
SUB= 73690600 HUS-73680600
...
21
SPRING ROD LT HUS-106888X
...
22
SUB= 144585 HUS-127378
...
23
WASHER HUS-19132012
...
24
SPRING.RETAINER HUS-4921H
...
25
LOCKNUT HUS-73930600
...
26
"LINK, MOWER REAR" HUS-127369
...
27
SUB= 140776 HUS-127358
...
28
SUB= 72270506 HUS-72110506
...
29
NUT HUS-73510500
