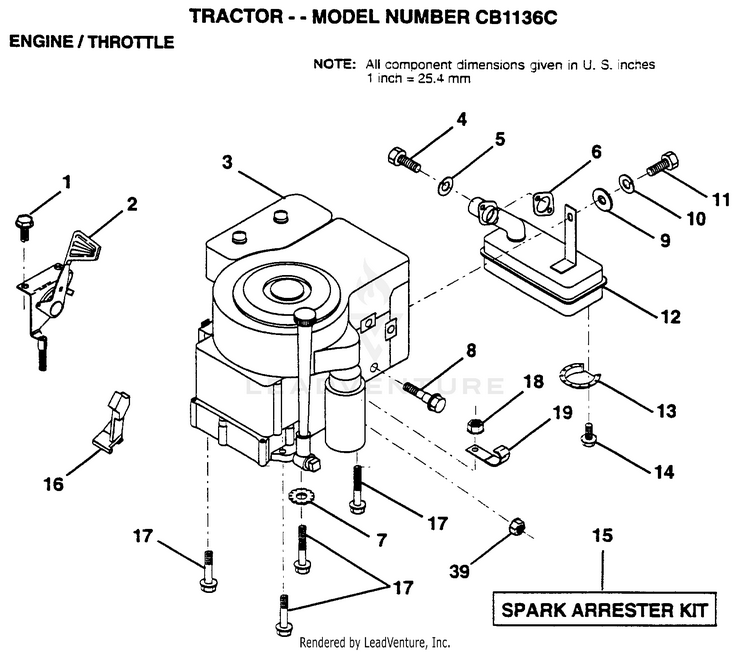

Husqvarna CB1136C (1999 & Before) Tractor

Model: CB1136C (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE/THROTTLE

...
...
1
SCREW.1/4-20X1/2 HUS-17060408
...
2
SUB= 532133025 HUS-133025
...
3
ENGINE, B&S, 11HP HUS-28C707
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
7
LOCKWASHER HUS-11050600
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
11
BOLT HUS-74760416
...
12
MUFFLER HUS-137437
...
13
DEFLECTOR.222573 HUS-101326L
...
14
SUB= 17030814 HUS-17030808
...
15
SUB= 532137180 HUS-137180
...
16
"STOP,DASH THROTT" HUS-127951
...
17
SCREW LT HUS-17490624
...
18
NUT HUS-73510600
...
19
CLIP T HUS-2751R
...
39
NUT HUS-73510400
