Husqvarna C38D (2002) Attachment

Model: C38D (2002)

Save Part Not Listed?
product name

Grass Catcher

...
...
2
Nut, Crownlock #10-24 HUS-532069180
...
3
Screen, Cover HUS-532127533
...
4
Cover Assembly (Incl. 3, 38, 39) HUS-532171061
...
5
Chute, Upper HUS-532139569
...
6
Screw, Special HUS-818021008
...
7
Dump Bag Indicator HUS-532140572
...
8
SCREW.PAN.HEAD HUS-874981024
...
9
Washer 3/16x3/4x16 Ga. HUS-819061216
...
10
Spacer, Split HUS-532007206
...
11
NUT.#10-24 ACORN.ZD HUS-539108086
...
12
Washer, lock HUS-810071000
...
13
Latch, Chute HUS-532109808
...
14
NUT.WELD.#10-24 HUS-532002029
...
15
Bolt, Hex Head 3/8-16 x 1-1/4 HUS-874930620
...
16
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
17
LOCKNUT 3/8-16 NLA HUS-873770600
...
18
Chute, Lower HUS-532131970
...
19
Wingnut 3/8-16 HUS-532135651
...
20
Screw #10-24 x 5/8 HUS-871081010
...
21
Spring, Cover L.H. (black) HUS-532132796
...
22
Spacer, Cover HUS-532133235
...
23
Spring, Cover R.H. (gray) HUS-532132983
...
24
POST.SUPPORT.BAGGER.2BIN HUS-532180925
...
25
Locknut 5/16 x 18 HUS-532063124
...
26
RETAINER SPRING HUS-532085902
...
27
HCS.5/16-18X3/4 HUS-539976934
...
28
Bracket, Mounting HUS-532170053
...
30
Pin, Support Post HUS-532131137
...
31
Plug, Tubing End HUS-532174083
...
32
Bagger, Frame HUS-532126919
...
33
Pin, Hinge HUS-532192786
...
34
Gasket, Cover HUS-532127534
...
35
Container, Top HUS-532183286
...
36
Container, Bottom HUS-532129586
...
38
Latch Handle, Cover HUS-532130895
...
39
Strip, Reinforcement HUS-532155042
...
40
Carriage Bolt 5/16-18 x 3/4 HUS-872110506
...
41
Shoulder Bolt Hex, Self Tapping HUS-532170165
...
xx
Bag, 3.0 mil. 30 Gallon Trash (Not included with bagger) HUS-532104419
...
xx
Owner's Manual HUS-532140603

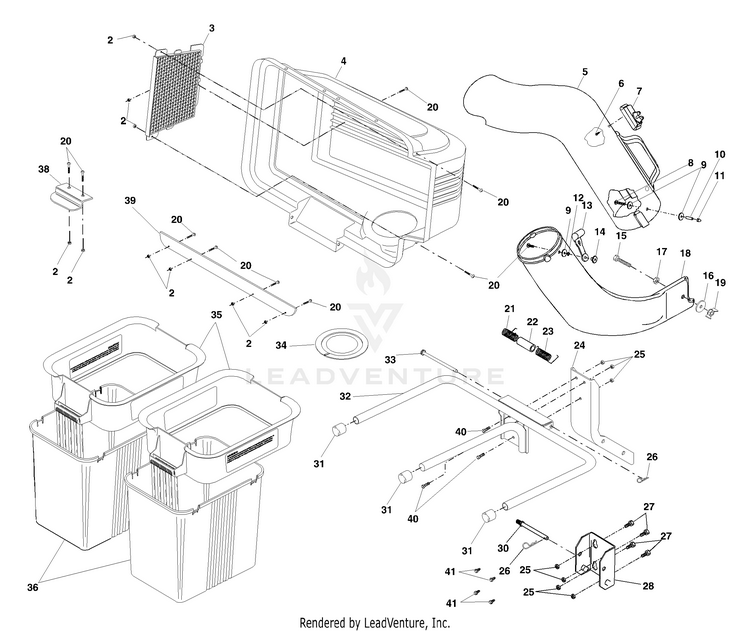

Schematic Image Zoomed
