Husqvarna C20H42YT, 96042002600 (2006-01) Tractor/Ride Mower

Model: C20H42YT, 96042002600 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

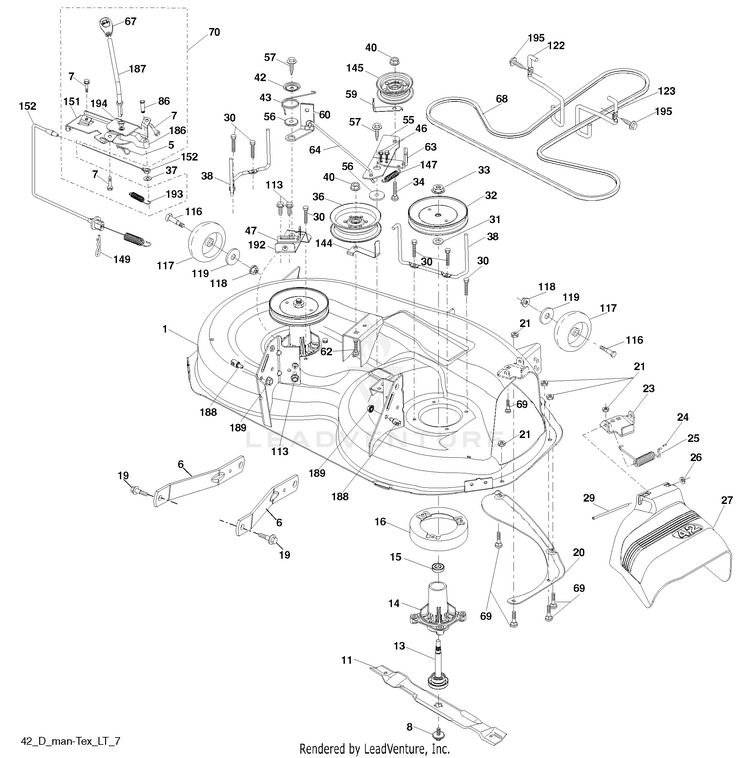

Mower Deck

...
...
1
Deck Weldment Mower HUS-196495
...
5
Retainer Spring HUS-4939M
...
6
Arm Suspension HUS-195186
...
7
Screw 10 x 3/4 Single Lead Hex HUS-191611
...
8
Bolt/Washer asm 7/16-20 unf HUS-193003
...
11
Blade, 42" Hi-Lift (For bagging or discharge) HUS-138971
...
11
Blade, 42" Mulching Std (For mulching mowers only) HUS-134149
...
11
Blade, 42" Mulching Premium (For better wear when mulching) HUS-139775
...
13
Shaft Assembly, Mandrel HUS-192872
...
14
Housing, Mandrel HUS-187281
...
15
Bearing, Ball, Mandrel HUS-110485X
...
16
Stripper, Mower Deck HUS-174493
...
19
Bolt, Shoulder HUS-196539
...
20
Baffl e, Vortex HUS-159770
...
21
Nut, Crownlock 5/16-18 unc HUS-73680500
...
23
Bracket, Defl ector HUS-192557
...
24
Cap, Sleeve HUS-105304X
...
25
Spring, Torsion, Defl ector HUS-197026
...
26
Nut, Push HUS-110452X
...
27
Shield, Defl ector HUS-193108X428
...
29
Rod, Hinge HUS-131491
...
30
Screw Thdrol Rolling Wsh Hd HUS-173984
...
31
Washer, Spacer HUS-187690
...
32
Pulley, Mandrel HUS-197473
...
33
Nut, Toplock, Flanged HUS-400234
...
34
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 HUS-72110612
...
36
Pulley, Idler, Flat HUS-197379
...
37
Washer HUS-19131316
...
38
Keeper Belt LH Mandrel HUS-199189
...
40
Nut, Lock Flg. 3/8-16 unc HUS-73900600
...
42
Spring Torsion Brake HUS-198410
...
43
Spring Torsion Retainer HUS-197256
...
46
Screw Thd Roll 1/4-20 x 5/8 HUS-137729
...
47
Bracket Clutch Cable HUS-197250
...
54
Washer, Hardened HUS-178515
...
55
Arm, Idler HUS-197249
...
56
Spacer, Retainer HUS-199092
...
57
Screw 3/8-16 x 1 HUS-17000616
...
59
Guard, Tuv Idler HUS-141043
...
60
Arm Brake Mower HUS-197261
...
62
Bolt Rd Hd Sq Nk 3/8-16 unc x 2 HUS-72110616
...
63
Arm Brake Mower HUS-199477
...
64
Link Brake Asm HUS-199790
...
65
Spacer Retainer HUS-199092
...
67
Handle Clutch Cable HUS-198398X428
...
68
V-Belt HUS-197253
...
69
Bolt HUS-72140505
...
70
Clutch Asm Manual HUS-199779
...
86
Pin Attachment Cable HUS-197798
...
87
Switch Interlock Clutch Cable HUS-197802
...
88
Screw 10-24 x 5/8 HUS-193232
...
113
Bolt 5/16-18 HUS-17000510
...
116
Bolt, Shoulder HUS-4898H
...
117
Wheel, Gauge HUS-188606
...
118
Nut, Crownlock 3/8-1 HUS-73930600
...
119
Washer 13/32 x 7/8 x 14 Ga. HUS-19121414
...
122
Keeper Belt Engine LH HUS-197258
...
123
Keeper Belt Engine RH HUS-197259
...
144
Keeper Belt HUS-199204
...
145
Pulley Idler HUS-193197
...
147
Spring Return HUS-401971
...
149
Retainer Spring HUS-165898
...
151
Bracket Clutch HUS-199778
...
152
Manual Clutch Cable HUS-197257
...
186
Arm Actuator HUS-197799
...
187
Lever Control HUS-400426
...
188
Stud Fastener HUS-195161
...
189
Nut Lock Hex Flange HUS-73900500
...
192
Bracket Brake Stand LH HUS-197260
...
193
Spring Plunger Activator HUS-197801
...
194
Bearing Control Lever Clutch HUS-197797
...
195
Screw Hex Wsh THDR 3/8-16 x 3/4 HUS-17000612
...
195
Mandrel Assembly (Includes housing, shaft and shaft hardware only-pulley not included) HUS-192870
...
195
Replacement Mower, Complete HUS-199608
