Husqvarna C20H42YT, 96042002600 (2006-01) Tractor/Ride Mower

Model: C20H42YT, 96042002600 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

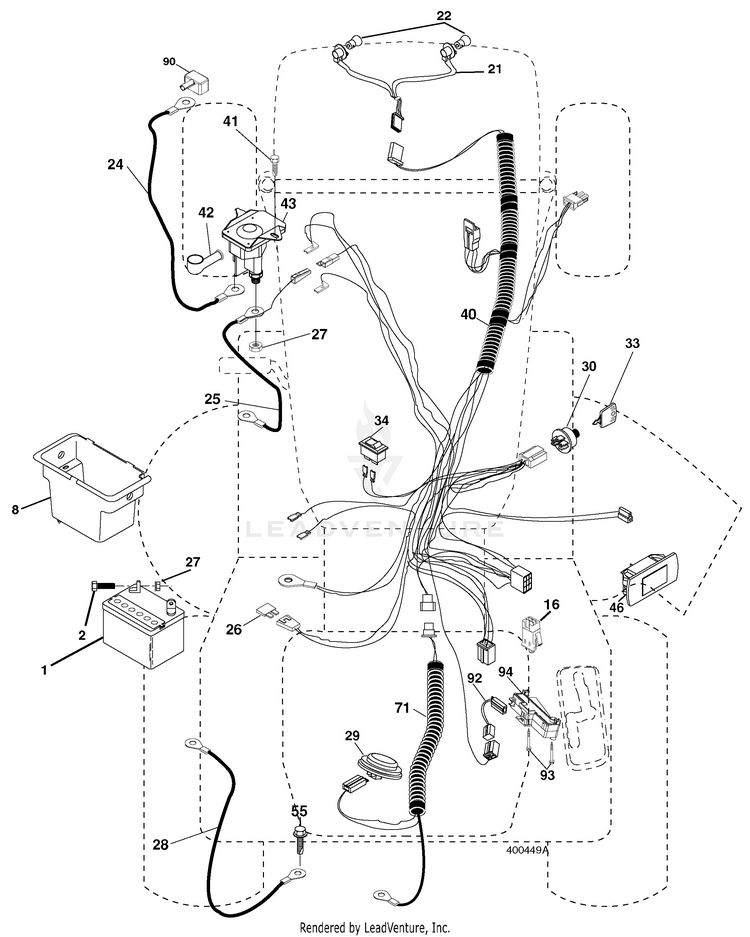

Electrical

...
...
1
Battery HUS-163465
...
2
Bolt Hex Head 1/4-20 x 3/4 HUS-74760412
...
8
Box Battery HUS-193228
...
16
Switch Interlock Push-In HUS-176138
...
21
Harness Socket Light W/4152J HUS-183759
...
22
Bulb Light HUS-4152J
...
25
Cable Starter HUS-401662
...
26
Fuse HUS-175158
...
27
Nut Keps Hex 1/4-20 unc HUS-73510400
...
28
Cable, Ground HUS-198885
...
29
Switch, Seat HUS-401545
...
30
Switch, Ignition HUS-193350
...
33
Key, Ignition HUS-140401
...
34
Switch Light / Reset HUS-110712X
...
40
Harness Ignition HUS-400449
...
41
Screw Thd Cut 1/4-20 x 1/2 HUS-17720408
...
42
Cover, Terminal HUS-131563
...
43
Solenoid HUS-192507
...
46
Gauge Servicereminder Hrmtr Rect. HUS-198138
...
55
Screw Thdrol 5/16-18 x 3/4 TYTT HUS-17490512
...
71
Harness Ignition Dash HUS-400451
...
90
Cover Terminal Battery HUS-400275
