Husqvarna C20H42YT, 96042002600 (2006-01) Tractor/Ride Mower

Model: C20H42YT, 96042002600 (2006-01)

Back To Assemblies

Save Part Not Listed?
product name

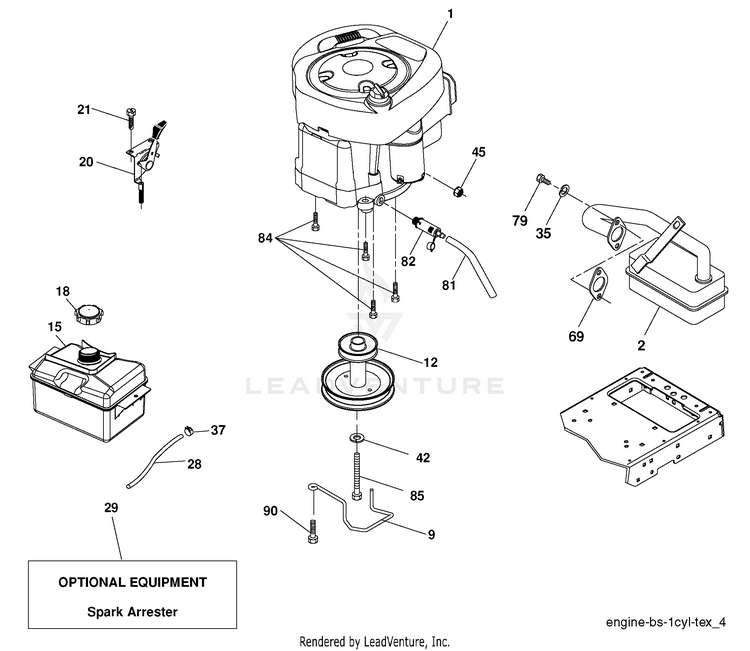

Engine

...
...
2
Muffl er HUS-137352
...
9
Keeper Belt Engine HUS-194319
...
12
Pulley Engine HUS-194332
...
15
Tank Fuel HUS-194266
...
18
Cap Asm HUS-197725
...
20
Control Throttle HUS-176636X428
...
21
Screw 10 x 3/4 Single Lead-Hex HUS-191611
...
28
Fuel Line HUS-401137
...
29
Spark Arrester Kit HUS-137180
...
35
Washer, Split HUS-10010500
...
37
Clamp Hose HUS-123487X
...
42
Washer Lock 7/16 HUS-10040700
...
45
Nut Keps Hex 1/4-20 unc HUS-73510400
...
69
Gasket HUS-165391
...
79
Screw Socket Head 5/16-18 x .75 HUS-192334
...
81
Tube Drain Oil Easy HUS-148456
...
82
Plug Drain Oil HUS-181654
...
84
Screw 3/8-16 x 1-1/4 HUS-17060620
...
85
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr. HUS-173937
...
90
Screw 3/8-16 x 1 HUS-17060616
