Husqvarna BZ 7234 D BF (968999370) Ride Mower (Turf Care)

Model: BZ 7234 D BF (968999370)

Back To Assemblies

Save Part Not Listed?
product name

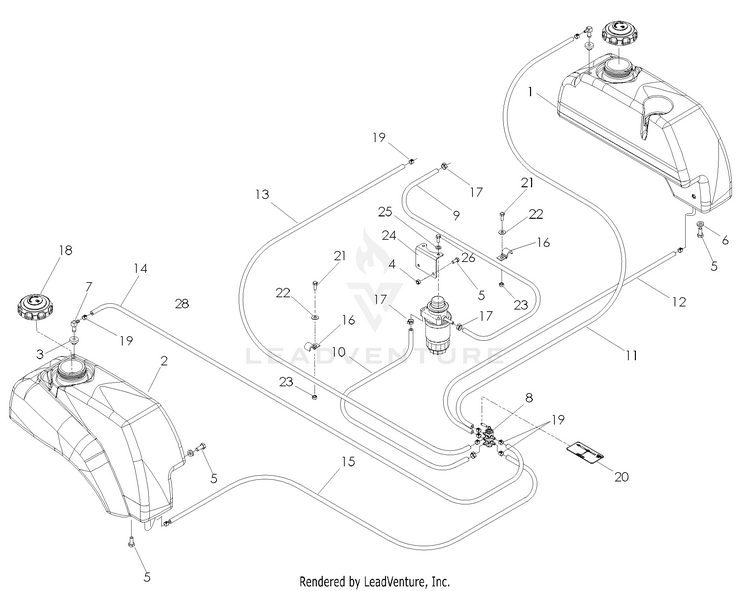

Fuel System

...
...
1
FUEL TANK DIESEL LT HUS-539105329
...
2
FUEL TANK DIESEL RT HUS-539105330
...
3
RUBBER GROMMET HUS-539105245
...
4
Nuts HUS-596583702
...
5
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
6
WASHER HUS-539101704
...
7
ELBOW HUS-539105244
...
8
FUEL VALVE HUS-539105331
...
9
FUEL LINE 38" HUS-539108206
...
10
FUEL LINE 35" HUS-539108207
...
11
FUEL LINE 79" HUS-539108208
...
12
FUEL LINE 57" HUS-539108209
...
13
FUEL LINE 54" HUS-539108210
...
14
FUEL LINE 34" HUS-539108211
...
15
FUEL LINE 13" HUS-539108212
...
16
CLIP HUS-539107863
...
17
CLAMP HUS-539105529
...
18
TANK CAP - DIESEL HUS-539106330
...
19
HOSE CLAMP HUS-539912222
...
20
FUEL VALVE DECAL HUS-539105334
...
21
Screws HUS-596230901
...
22
Washers HUS-597338501
...
23
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
24
MOUNTING BRACKET HUS-539107840
...
25
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
26
BOLT HUS-539300600
