Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

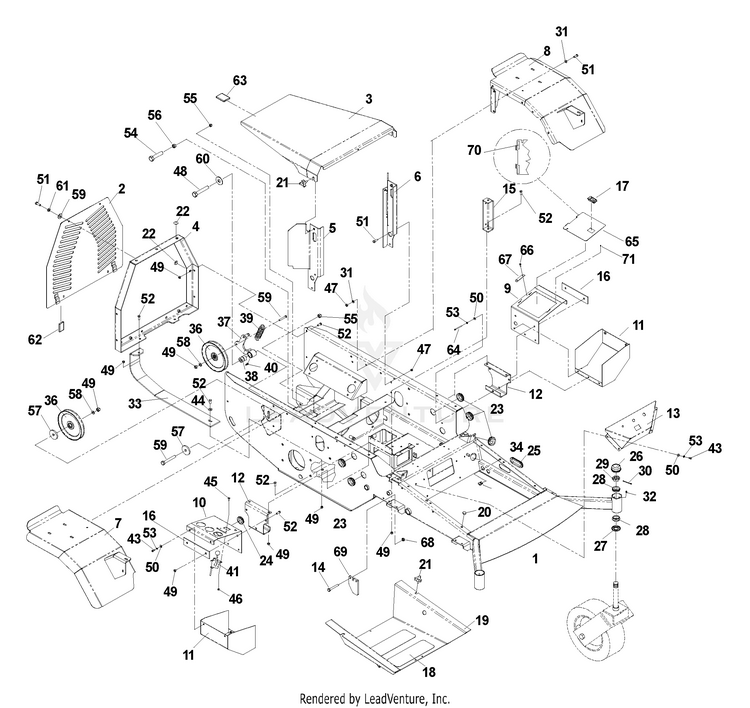

Main Frame Assembly

...
...
1
FRAME W/DECALS HUS-539110941
...
2
PANEL W/ DECALS HUS-539108362
...
3
HOOD ORANGE HUS-539107853
...
4
REAR FRAME HUS-539107847
...
5
SUPPORT WLDMT, RT HUS-539106405
...
6
SUPPORT WLDMT, LT HUS-539106406
...
7
FENDER WELDMT, RH HUS-539107205
...
8
FENDER WELDMT, LH HUS-539107206
...
9
CONSOLE TOP-FINISHED ORANGE HUS-539110904
...
10
CONTROL PANEL HUS-539110907
...
11
CONSOLE BOTTOM HUS-539107776
...
12
CONSOLE SUPPORT HUS-539110934
...
13
CONSOLE HUS-539110925
...
14
CAPSCREW HUS-539976938
...
15
SUPPORT WELDMENT HUS-539108055
...
16
BLACK-STIFFNER-PAINTED HUS-539107867
...
17
LATCH HUS-539110923
...
18
ANTI-SKID PAD HUS-539977778
...
19
FOOTPLATE W/DECALS HUS-539111574
...
20
GROMMET, BUMPER HUS-539102587
...
21
GSPW Knobs HUS-597783101
...
22
GROMMET BUMPER HUS-539107858
...
23
GROMMET HUS-539103684
...
24
GROMMET HUS-539107656
...
25
GROMMET HUS-539107210
...
26
Caps HUS-595281301
...
27
SEAL HUS-539102851
...
28
TAPERED ROLLER BRG HUS-539102543
...
29
Nuts HUS-596241501
...
30
COTTER PIN 1/8 X 2 HUS-539124704
...
31
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
32
Zerks HUS-596623501
...
33
SKID PLATE HUS-539106300
...
34
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
36
IDLER HUS-539111568
...
37
ARM WELDMENT HUS-539106418
...
38
BUSHING HUS-539106417
...
39
SPRING HUS-539103256
...
40
ZERK HUS-539103300
...
41
THROTTLE HUS-597524002
...
43
SCREW 1/4 X 5/8 HUS-539990362
...
44
GSPW Washers HUS-596433701
...
45
Screws HUS-596582801
...
46
Hardware HUS-596040801
...
47
Nuts HUS-596583702
...
48
HEX SCREW 1/2-13 X 2.5" GR 5 HUS-539108346
...
49
GSPW Nuts HUS-596240901
...
50
Washers HUS-597338501
...
51
Bolts HUS-596580801
...
52
Bolts HUS-596564401
...
53
Washers HUS-596564801
...
54
HCS 1/2-13X2 GR 8 HUS-539107026
...
55
GSPW NUTS HUS-596135601
...
56
NUT HEX 1/2 HUS-539990258
...
57
Washers HUS-596770301
...
58
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
59
GSPH HUS-596134901
...
60
Washers HUS-595316401
...
61
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
xx
TIE, PLASTIC (Not shown) HUS-539976856
...
62
SLEEVE HUS-539110850
...
63
SLEEVE HUS-539110851
...
64
HCS 1/4-20 X 3 GR 5 ZD HUS-539108391
...
65
DOOR - FINISHED HUS-539110920
...
66
Screws HUS-596917001
...
67
RETAINER HUS-539110922
...
68
GSPW Hardware HUS-596039201
...
69
STOP HUS-539110927
...
70
FOAM STRIP HUS-539111824
...
71
PLUG HUS-539111823
