Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

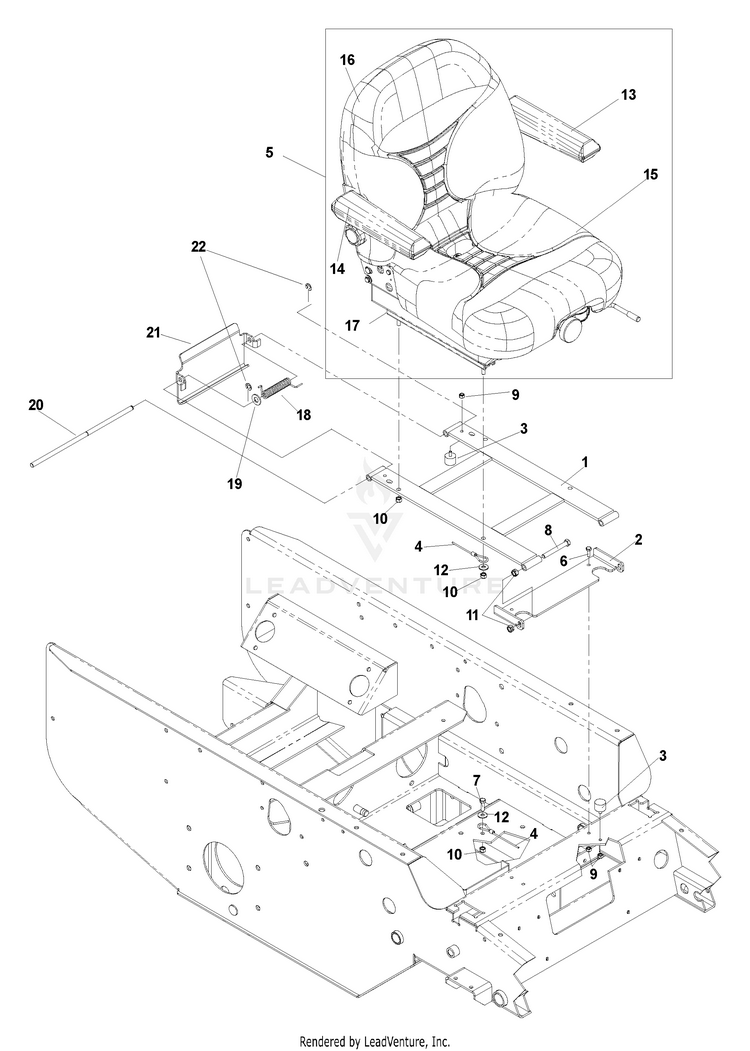

Seat Assembly

...
...
1
SEAT MOUNT WLDMT HUS-539111564
...
2
SEAT BRKT W/DECAL HUS-539105224
...
3
STUD/PLATE MOUNT HUS-539105039
...
4
SEAT LANYARD HUS-539103247
...
5
SEAT for units produced before Serial No. 074439861 HUS-539130874
...
6
Screws HUS-596230901
...
7
Bolts HUS-596580801
...
8
HCS 3/8C X 3 HUS-539101341
...
9
NUT 1/4-20 HEX FLG LK ZD HUS-539108735
...
10
Nuts HUS-596583702
...
11
Nuts HUS-595305901
...
12
GSPH HUS-596134901
...
13
ARMREST KIT, LH HUS-539108716
...
14
ARMREST KIT, RH HUS-539108717
...
15
SEAT CUSHION KIT HUS-539108718
...
16
BACK CUSHION KIT HUS-539108719
...
17
SLIDE KIT, SEAT ADJ HUS-539108720
...
18
TORSION SPRING (SEAT) HUS-539110645
...
19
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
20
PIN HUS-539111563
...
21
LATCH HUS-539111562
...
22
E RING 3/8" HUS-539990870
...
xx
SWITCH-SNAP MOUNT KIT (Not shown) HUS-539108745
...
xx
BACK, HARD PLASTIC PREM SEAT (Not shown) HUS-539111434
