Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

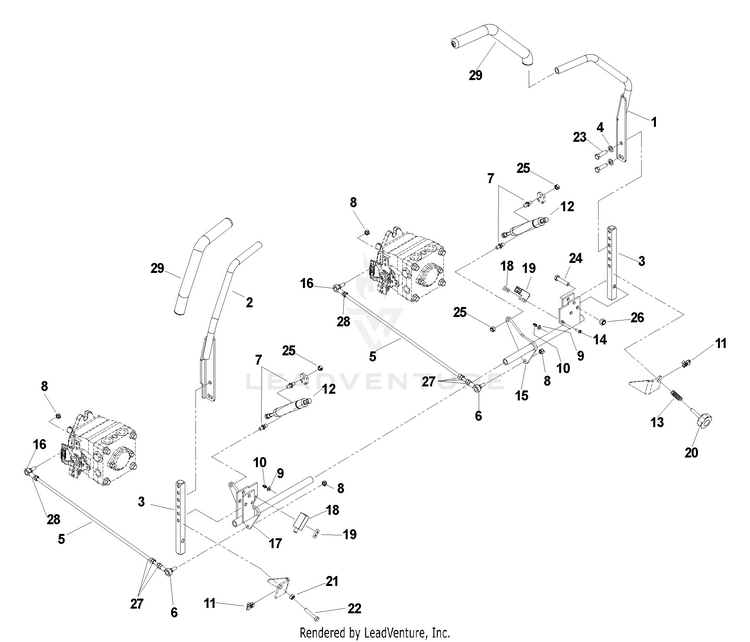

Motion Control

...
...
1
LT DRIVE LEVER WLDMT HUS-539110827
...
2
RT DRIVE LEVER WLDMT HUS-539110826
...
3
CONTROL ARM HUS-539110638
...
4
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
5
LINK HUS-539110896
...
6
SPHERICAL ROD END, RH HUS-539110603
...
7
Studs HUS-594056301
...
8
NUT 5/16F NYLOC HUS-539110943
...
9
WASHER HUS-539103547
...
10
GSPW Zerks HUS-596899901
...
11
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
12
DAMPENER W/EXT SEAL HUS-539131932
...
13
COMPRESSION SPRING HUS-539111039
...
14
Screws HUS-596039001
...
15
CONTROL WLDMT, LT HUS-539110897
...
16
SPHERICAL ROD END, LH HUS-539110604
...
17
CONTROL WLDMT, RT HUS-539110898
...
18
TAPPED PLATE HUS-539102678
...
19
SWITCH HUS-539106269
...
20
ADJUSTMENT KNOB HUS-539103003
...
21
Nuts HUS-596582601
...
22
HCS 5/16-18X1-3/4 TPBLT HUS-539108394
...
23
Bolts HUS-596564401
...
24
Bolts HUS-596583901
...
25
Nuts HUS-596580701
...
26
GSPW Nuts HUS-596240901
...
27
Hardware HUS-596040901
...
28
Nuts HUS-596584101
...
29
GRIP HUS-539102592
