Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

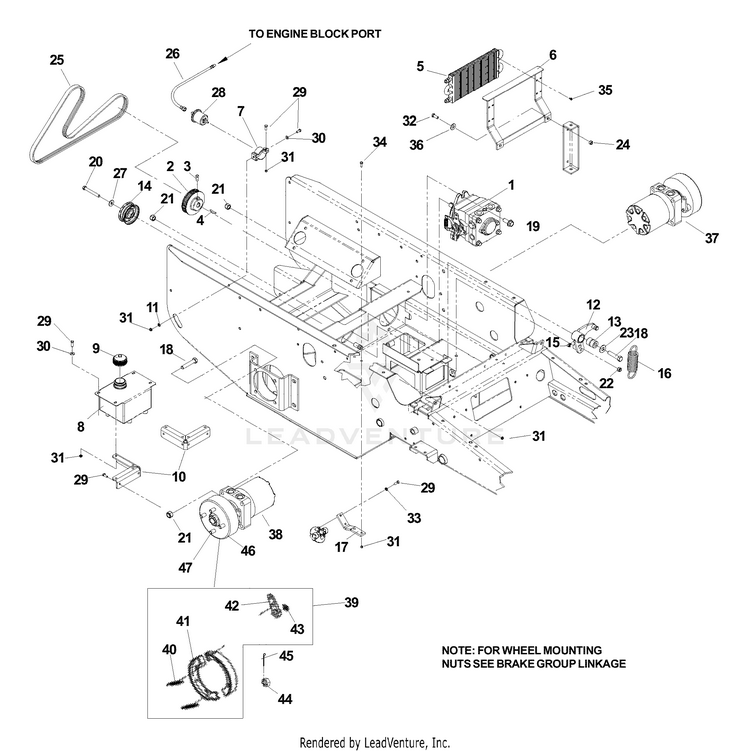

Hydraulic Assembly

...
...
1
HG_PUMP HUS-539110910
...
2
PUMP SHEAVE HUS-539106334
...
3
SCREW 5/16C X 1 SQ HEAD SET HUS-539102716
...
4
KEY, METRIC HUS-539109178
...
5
COOLER HUS-539106356
...
6
COOLER WLDMT MT HUS-539107810
...
7
CLAMP-OIL SENDER HUS-539107844
...
8
TANK, OIL = PAINTED HUS-539105891
...
9
HYDRAULIC CAP HUS-539101202
...
10
SUPPORT HUS-539110912
...
11
WASHER 1/4 EXTLW STAR ZD HUS-539109347
...
12
ARM WELDMENT HUS-539106425
...
13
BUSHING HUS-539106417
...
14
IDLER PULLEY HUS-539919078
...
15
ZERK HUS-539912758
...
16
SPRING HUS-539102666
...
17
FILTER MOUNT - PAINTED HUS-539106290
...
18
HEX SCREW 1/2-13 X 2.5" GR 5 HUS-539108346
...
19
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
20
HCS 3/8C X 3 HUS-539101341
...
21
GSPW NUTS HUS-596135601
...
22
GSPW Nuts HUS-596240901
...
23
Washers HUS-595316401
...
24
Nuts HUS-596583702
...
25
PUMP BELT HUS-539106341
...
26
HOSE HUS-539108053
...
27
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
28
SENDER,OIL PRESS HUS-539106382
...
29
Screws HUS-596230901
...
30
Washers HUS-597338501
...
31
NUT 1/4-20 HEX FLG LK ZD HUS-539108735
...
32
Bolts HUS-596580801
...
33
Washers HUS-596564801
...
34
HCS 1/4 X 1 HUS-539990548
...
35
Screws HUS-596917001
...
36
GSPH HUS-596134901
...
37
WHEEL MTR ASM HUS-539106266
...
38
WHEEL MTR ASM, RT HUS-539106267
...
39
SHOE ASSY HUS-539108524
...
40
RETURN SPRING HUS-539108523
...
41
SHOE ASSY HUS-539108524
...
42
LEVER HUS-539108525
...
43
CLIP HUS-539108526
...
44
CASTLE-NUT HUS-539105277
...
45
COTTER PIN HUS-539990297
...
46
DRUM HUS-539111807
...
47
WHEEL STUD 1/2-20X1-3/8 GR8 ZN HUS-539110039
