Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

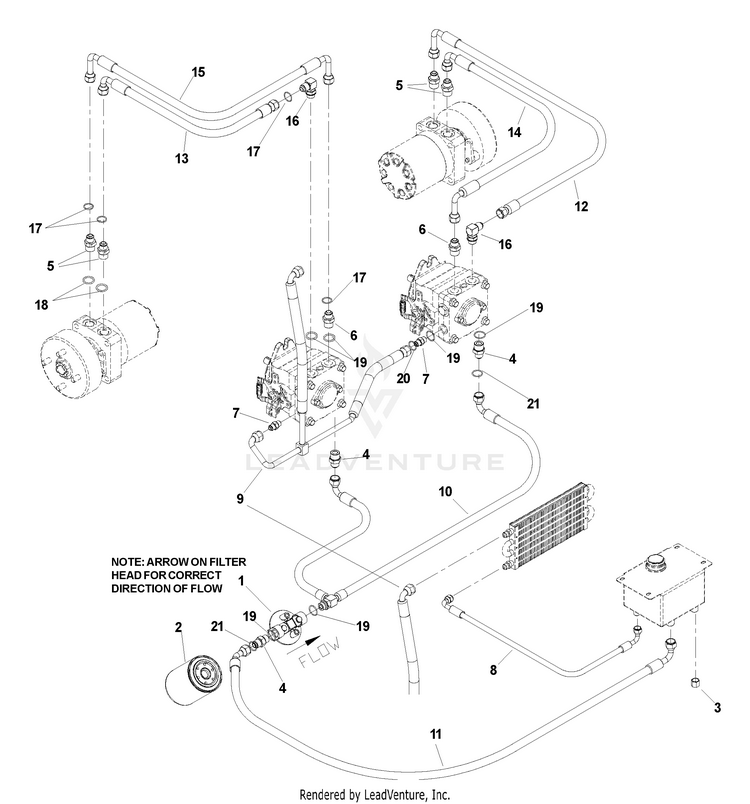

Hydraulic Hoses And Fittings

...
...
1
FILTER HEAD HUS-539105892
...
2
HYDRAULIC OIL FILTER HUS-539105893
...
3
NUT 9/16-18 JIC CAP HUS-539105168
...
4
FITTING, STRAIGHT F6400-8-8-0 HUS-539101237
...
5
FITTING HUS-539106357
...
6
FITTING HUS-539106358
...
7
FITTING HUS-539106359
...
8
HOSE HUS-539106360
...
9
HOSE, T HUS-539110930
...
10
T-HOSE HUS-539106362
...
11
HOSE HUS-539106363
...
12
HOSE HUS-539106364
...
13
HOSE HUS-539106365
...
14
HOSE HUS-539106366
...
15
HOSE HUS-539106367
...
16
FITTING HUS-539106370
...
17
O-RING HUS-539108983
...
18
O-RING HUS-539103114
...
19
O RING HUS-539103115
...
20
O RING HUS-539103118
...
21
O RING HUS-539103119
