Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

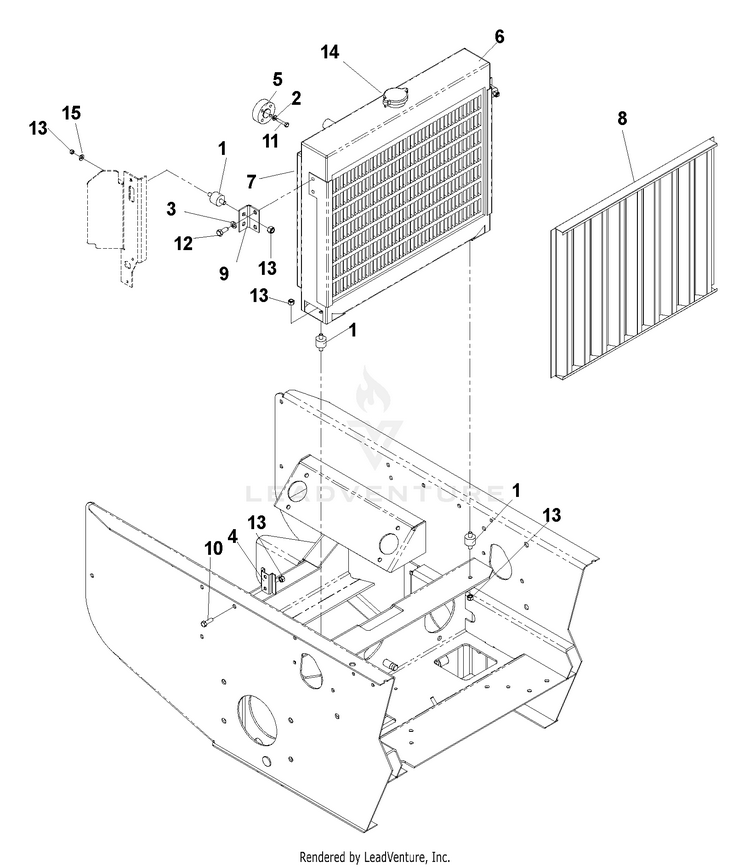

Radiator

...
...
1
ISOLATOR HUS-539106310
...
2
Washers HUS-596564801
...
3
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
4
MOUNTING BRACKET HUS-539107855
...
5
SPACER FAN HUS-539107995
...
6
RADIATOR HUS-539106316
...
7
SHROUD HUS-539106317
...
8
DEBRIS GUARD HUS-539106318
...
9
BRACKET ISO HUS-539106297
...
10
Bolts HUS-596580801
...
11
BOLT HUS-539300599
...
12
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
13
Nuts HUS-596583702
...
14
RADIATOR CAP HUS-539106320
...
15
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
xx
CLAMP (not shown) HUS-539106321
...
xx
LOWER HOSE (not shown) HUS-539106326
...
xx
TOP HOSE (not shown) HUS-539106325
...
xx
OVERFLOW TANK ASM (not shown) HUS-539106402
...
xx
DRAIN (not shown) HUS-539106322
