Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

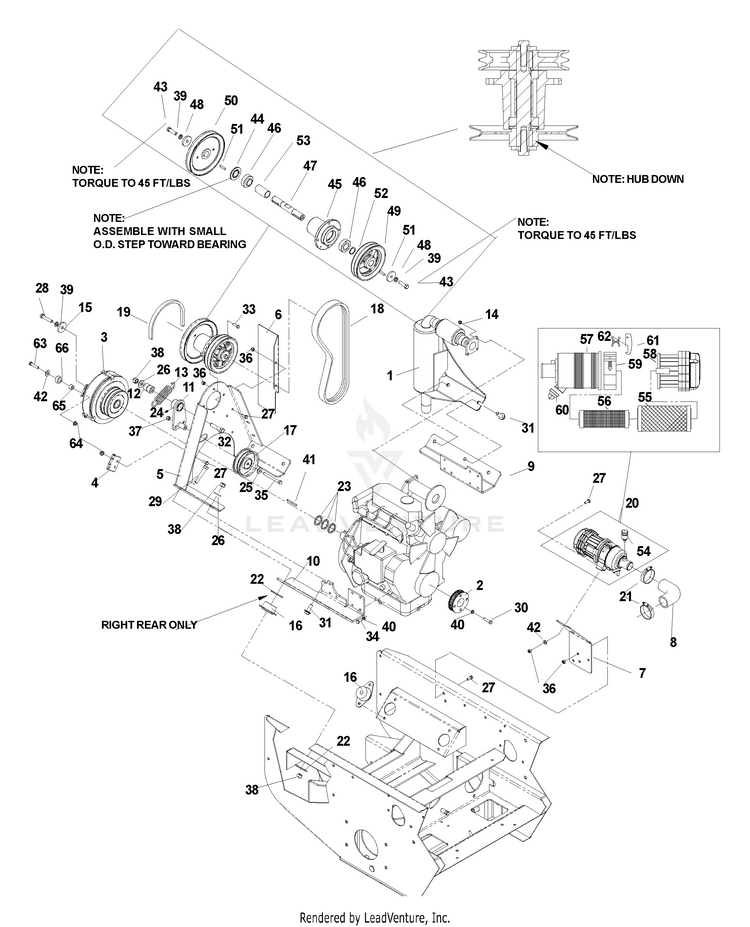

Engine Assembly

...
...
1
MUFFLER TURBO HUS-539111834
...
2
ENGINE SHEAVE HUS-539106335
...
3
ELECTRIC CLUTCH HUS-539110668
...
4
CLUTCH STOP KIT HUS-539111433
...
5
JACKSHAFT MOUNT WELDMENT HUS-539106306
...
6
HEAT SHIELD HUS-539107864
...
7
MOUNTING BRACKET HUS-539107841
...
8
AIR FILTER HOSE HUS-539106381
...
9
ENGINE MOUNT-LT HUS-539107861
...
10
ENGINE MOUNT-RT HUS-539107862
...
11
ARM WELDMENT HUS-539106422
...
12
BUSHING HUS-539106417
...
13
SPRING HUS-539110655
...
14
NUT M8-1.25 STOVER HUS-539109801
...
15
Washers HUS-596770301
...
16
ISO MOUNT HUS-539106291
...
17
IDLER HUS-539111567
...
18
BELT, PRIMARY BZ HUS-539111582
...
19
ENGINE, BELT MULE HUS-539106339
...
20
AIR FILTER ASSY HUS-539106315
...
21
CLAMP, AIR HOSE HUS-539106383
...
22
WASHER, HEAVY HUS-539111844
...
23
BUSH 1-1/8 X 10 GA ZD HUS-539108052
...
24
GREASE ZERK LONG HUS-539104761
...
25
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
Washers HUS-595316401
...
27
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
28
BOLT 7/16F X 2 1/2 HUS-539991120
...
29
HCS 1/2C X 2 3/4 HUS-539101332
...
30
HTB M8-1.125 X 25MM HUS-539977692
...
31
HCS 1/2C X 1 1/4 SERRATED HEAD HUS-539990622
...
32
HEX SCREW 1/2-13 X 2.5" GR 5 HUS-539108346
...
33
Bolts HUS-596580801
...
34
BOLT HUS-539300600
...
35
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
36
Nuts HUS-596583702
...
37
GSPW Nuts HUS-596240901
...
38
GSPW NUTS HUS-596135601
...
39
Washers HUS-596238901
...
40
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
41
KEY 1/4 SQ X 2-1/2 HUS-539917033
...
42
GSPH HUS-596134901
...
43
HCS 7/16F X 1 1/2 HUS-539100141
...
44
COMBO SPACER HUS-539107272
...
45
HOUSING, DIE CAST HUS-539104852
...
46
BEARING-ECC LOCK W/COLLAR HUS-539115279
...
47
SPINDLE HUS-539106344
...
48
Washers HUS-596770301
...
49
SHEAVE HUS-539106347
...
50
PULLEY HUS-539105485
...
51
KEY 1/4 SQ X 1 1/8 HUS-539101995
...
52
BUSHING.MACHINE.18.GAUGE HUS-539102244
...
53
SPACER HUS-539102676
...
54
INDICATOR HUS-539106375
...
55
AIR FILTER HUS-539106313
...
56
SAFETY ELEMENT HUS-539106377
...
57
BODY, STRAIGHT HUS-539108471
...
58
PRECLEANER ASM HUS-539108473
...
59
MOUNTING BRACKET HUS-539108474
...
60
NLA S-DRAIN HUS-539108472
...
61
CLAMP HUS-539108475
...
62
HINGE HUS-539108476
...
xx
STUB SHAFT (Not shown) HUS-539106327
...
xx
MANIFOLD GASKET (Not Shown) HUS-539109177
...
63
HCS 5/16C X 1 1/4 HUS-539990627
...
64
GSPW Hardware HUS-596039201
...
65
BUSHING HUS-539110900
...
66
SLEEVE HUS-539110901
