Husqvarna BZ 7234 (BAM) (2005-01) Ride Mower (Turf Care)

Model: BZ 7234 (BAM) (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

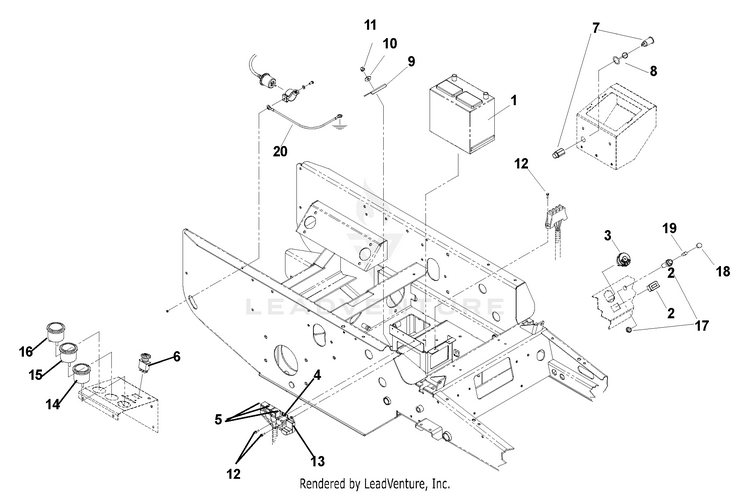

Electrical Group

...
...
1
BATTERY HUS-539102423
...
2
HOUR METER HUS-576179401
...
3
IGNITION SWITCH HUS-532175566
...
4
RELAY HUS-539108361
...
5
RELAY HUS-539102914
...
6
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
7
POWER SOURCING HSG HUS-539107856
...
8
POWER SOURCE CAP HUS-539107857
...
9
CLAMP HUS-539107755
...
10
GSPH HUS-596134901
...
11
Nuts HUS-596583702
...
12
Screws HUS-596917001
...
13
TIMER/GLOW PLUG HUS-539108348
...
14
TEMP GAUGE DATCON #100182 HUS-539105246
...
15
GAUGE, AMPMETER DATCON 100160 HUS-539106388
...
16
GAUGE, OIL PRES DATCON 100172 HUS-539106387
...
17
LAMP SPROCKET HUS-539107920
...
18
LENS HUS-539108174
...
19
LAMP HUS-539108175
...
20
GROUND HUS-539109346
...
xx
FUSE, 20 AMP 32 VOLT ATO (Not Shown) HUS-539102086
...
xx
FUSE 10 AMP 32 VOLTS (Not Shown) HUS-539108978
...
xx
FUSE 30 AMP 32 VOLTS (Not Shown) HUS-539108979
...
xx
FUSE 50 AMP 30 VOLTS (Not Shown) HUS-539108980
