Husqvarna BVM200VS (2009-03) Blower

Model: BVM200VS (2009-03)

Back To Assemblies

Save Part Not Listed?
product name

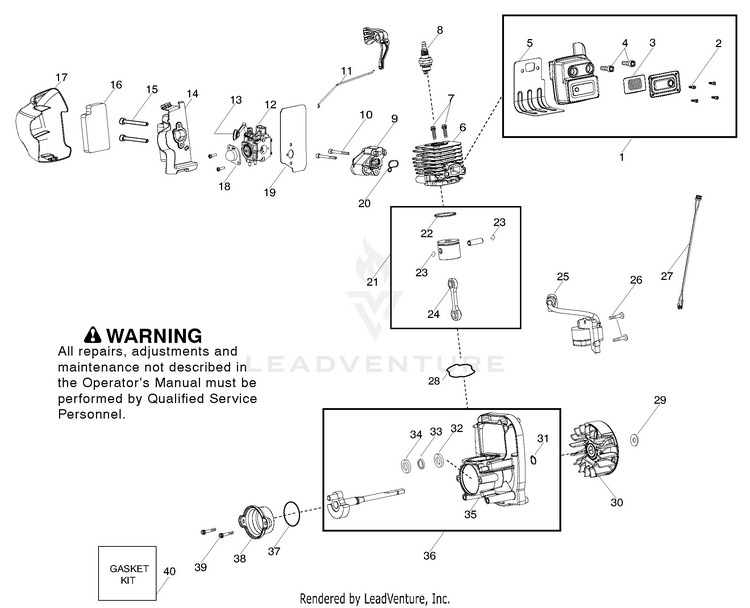

Engine

...
...
1
ASSY MUFFLER WELDED (Incl. 2,3,4,5) HUS-525592801
...
2
Screw HUS-530015241
...
3
ASSY MUFFLER WELDED HUS-525592801
...
4
Bolt HUS-530058982
...
5
Gasket-Muffler (gasket kit) HUS-545081832
...
6
Cylinder HUS-545115301
...
7
Bolt HUS-530015953
...
8
Spark Plug (RCJ-6Y) HUS-952030249
...
9
Adapter - Carb. HUS-545084901
...
10
Screw HUS-530016441
...
11
Linkage - Throttle HUS-545115501
...
12
Kit - Carb. Assy (WT847) (Incl. 13,18) HUS-545081831
...
13
Lever- Choke (Gold) HUS-545157102
...
14
Base - Airbox HUS-545112603
...
15
Screw HUS-530016429
...
16
Filter HUS-545116801
...
17
Cover - Air Box Filter HUS-545112702
...
18
Bulb - Purge (walbro 188-16) HUS-530035497
...
19
Gasket (Carb / Adapter) (gasket kit) HUS-545081832
...
20
O-Ring (Adapter / Cylinder) (gasket kit) HUS-545081832
...
21
Kit - Piston / Connecting Rod (Incl. 22,23,24) HUS-545081864
...
22
Ring - Piston HUS-530012472
...
23
Retainer - Wrist Pin HUS-530015162
...
24
KIT PISTON CONN ROD FORGED HUS-545156002
...
25
KIT MODULE W/O INTERRUPT HUS-545081826
...
26
Screw HUS-530016357
...
27
Assy - Wire Harness HUS-545127601
...
28
O-Ring (Cyl/Crankcase) (gasket kit) HUS-545081832
...
29
Washer HUS-530015828
...
30
Assy - Flywheel HUS-530054115
...
31
Retainer - Crankshaft HUS-530015941
...
32
Bearing - Outer HUS-530055728
...
33
Seal HUS-530019264
...
34
BEARING BALL 6001 HUS-738210101
...
35
Assy - Crankcase (Incl. 32,33,34) HUS-530012582
...
36
Assy - Crankcase & Crankshaft (Incl. 31,35) HUS-545102102
...
37
O-Ring (Rear Plug) (gasket kit) HUS-545081832
...
38
Assy - Rear Plug (Incl. 37) HUS-530057954
...
39
Screw HUS-530016386
...
40
Kit - Gasket (Incl. 5,19,20,28,37) HUS-545081832
