Husqvarna BV2000 LE Type 1 (2006-12) Blower

Model: BV2000 LE Type 1 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

Housing - Type 1

...
...
1
Air Dam (kit) HUS-530071459
...
2
Gasket-Adapter (kit) HUS-530071458
...
3
Carburetor Adaptor HUS-530035502
...
4
Screw HUS-530016309
...
5
Gasket-Carburetor (kit) HUS-530071458
...
6
Kit-Carb Ass'y. (C1Q-W11) HUS-530071465
...
7
Air Box HUS-530055103
...
8
Screw-Carb. HUS-530016340
...
9
Filter-Air HUS-530049383
...
10
Cover-Air Filter HUS-530055104
...
11
Screw-Air Box Cover HUS-530016354
...
12
Screw HUS-530015880
...
13
Assy-Muffler Cover HUS-530056257
...
14
Handle HUS-530095469
...
15
Screw HUS-530015886
...
16
Isolator HUS-530049323
...
17
Foam 25.4mm (kit) HUS-530071459
...
18
Clamp-Blower Tube HUS-530016324
...
19
Knob-Tube Clamp HUS-530016322
...
20
Housing-Right HUS-530055146
...
21
Spring-Cover Latch HUS-530402044
...
22
Guide-Starter Rope HUS-530049617
...
23
Housing-Left HUS-530055145
...
24
Nut HUS-530016207
...
25
Isolator-Crankcase HUS-530036792
...
26
Assy-Fuel Tank HUS-545058007
...
27
Gasket-Fuel Tank HUS-530049527
...
28
Assy-Fuel Cap HUS-530057973
...
29
Grommet-Shroud HUS-530049656
...
30
Kit-Line Carb/Purge HUS-530069247
...
31
Kit-Line Tank/Purge HUS-530069216
...
32
Assy-Fuel Pick-up HUS-530095646
...
33
Grommet-Fuel line (kit) HUS-530071459
...
33
Operator Manual Not Shown HUS-530086692
...
33
Warning Decal Not Shown HUS-530084404
...
33
Decal-Start Inst. Not Shown HUS-530055358

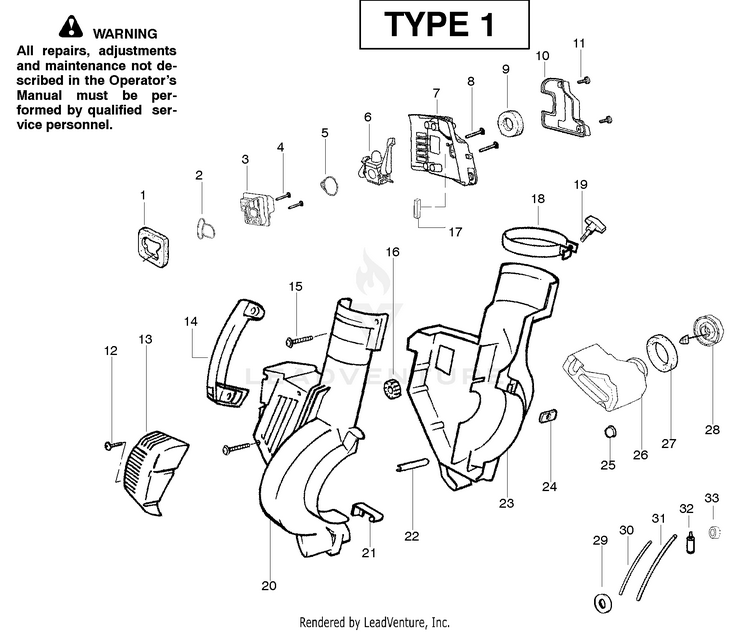

Schematic Image Zoomed
