Husqvarna BV1850LE Type 2 (2006-12) Blower

Model: BV1850LE Type 2 (2006-12)

Save Part Not Listed?
product name

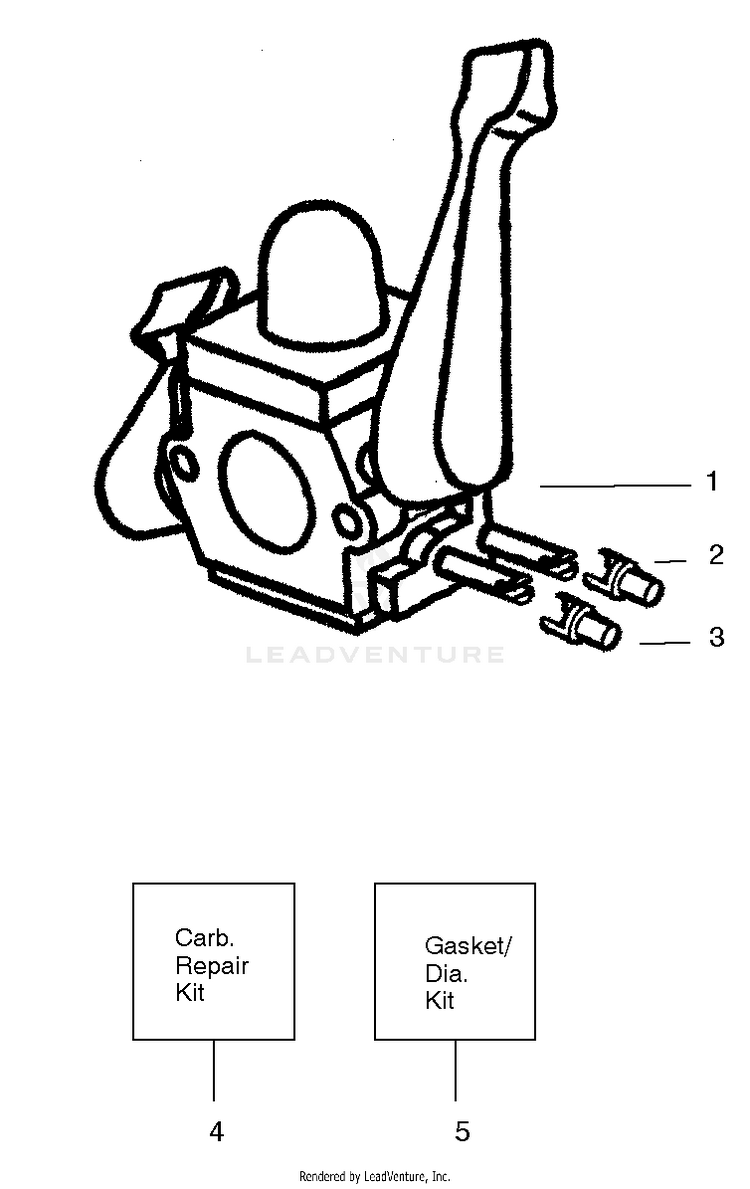

Carburetor

...
...
1
Assy-Carb. Zama (C1Q--W11) HUS-530071465
...
2
Cap-Limiter (high) brown HUS-530038479
...
3
Cap-Limiter (low) tan HUS-530038478
...
4
Kit-Carb. Repair HUS-530071475
...
5
Gasket/Diaphragm Kit ( • = CONTENTS) HUS-530071442

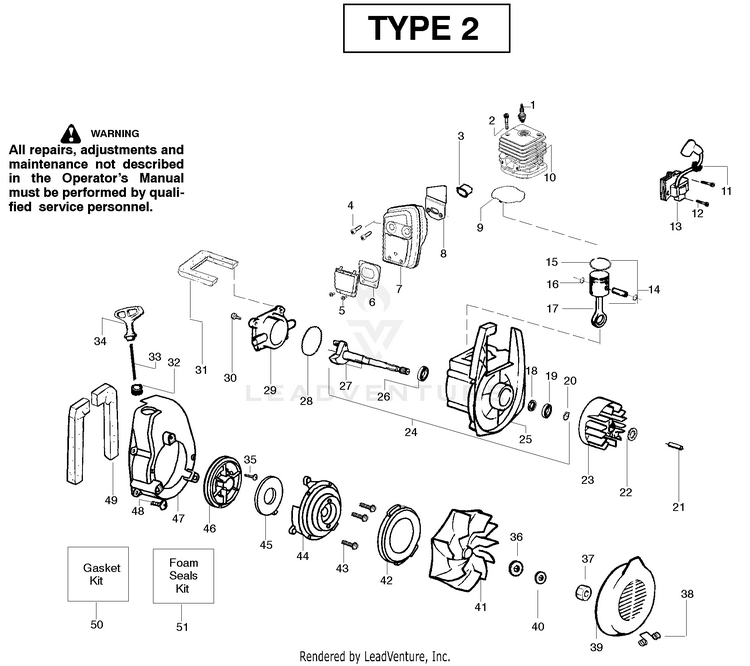

Engine - Type 2

...
...
1
Spark Plug (RCJ-6Y) HUS-952030249
...
2
Screw HUS-530015953
...
3
Insulator-Heat HUS-530055191
...
4
Screw-Muffler-Internal HUS-530016387
...
5
Screw HUS-530015241
...
6
Kit-Spark Screen (incl. #5) HUS-530071593
...
7
Kit-Muffler (Incl. 4,5,6, & 8) HUS-530071599
...
8
Gasket-Baffle (kit) HUS-530071458
...
9
Gasket-Cylinder (kit) HUS-530071458
...
10
Kit-Cylinder HUS-530071457
...
11
Grommet-Ign. Module HUS-530019182
...
12
Screw-Ignition Module HUS-530016357
...
13
Ignition Module HUS-530035505
...
14
Kit-Piston (Incl. 15 & 16) HUS-530071833
...
15
RING PISTON HUS-545154001
...
16
Retainer-Piston Pin HUS-530015162
...
17
CONNECTING ROD ASSY HUS-530049817
...
18
Kit-Crankcase Seal HUS-530071615
...
19
Bearing-Outer HUS-530055728
...
20
Retainer Ring-C'chaft HUS-530015941
...
21
Spacer-Flywheel HUS-530016190
...
22
Washer HUS-530015149
...
23
FLYWHEEL HUS-530063575
...
24
Assy-Crankcase/Crank shaft (incl. 20,25,27) HUS-530071456
...
25
Assy-Crankcase (Incl. 18,19,26) HUS-530012492
...
26
BEARING BALL 6001 HUS-738210101
...
27
Assy-Crankshaft HUS-530012452
...
28
O-ring-C/case (kit) HUS-530071458
...
29
Cover-Crankcase HUS-530012443
...
30
Screw HUS-530016386
...
31
Foam-219mm (kit) HUS-530071459
...
32
Eyelet-Flange HUS-530029182
...
33
Kit-Rope HUS-530071467
...
34
Handle-Starter HUS-530049488
...
35
Screw-Rope HUS-530016391
...
36
Washer-Belleville HUS-530016240
...
37
Nut HUS-530626605
...
38
Spring-Return Cover HUS-530402043
...
39
Inlet Door HUS-530049313
...
40
Washer HUS-530016279
...
41
Assy-Impeller HUS-530069817
...
42
Seal-Ring HUS-530056625
...
43
Screw HUS-530016349
...
44
Housing-Pulley HUS-530055101
...
45
KIT STARTER SPRING HUS-545008011
...
46
PULLEY, STARTER HUS-530054425
...
47
Fan Housing HUS-530055102
...
48
Screw HUS-530016386
...
49
Foam-182mm (kit) HUS-530071459
...
50
Kit-Gasket (page 2 incl. 2,5 & 19 ) (page 6 incl. 8,9, & 28 ) HUS-530071458
...
51
Kit-Foam Seals (page 2 incl. 1, 14, 32) (page 6 incl. 31 & 49) HUS-530071459

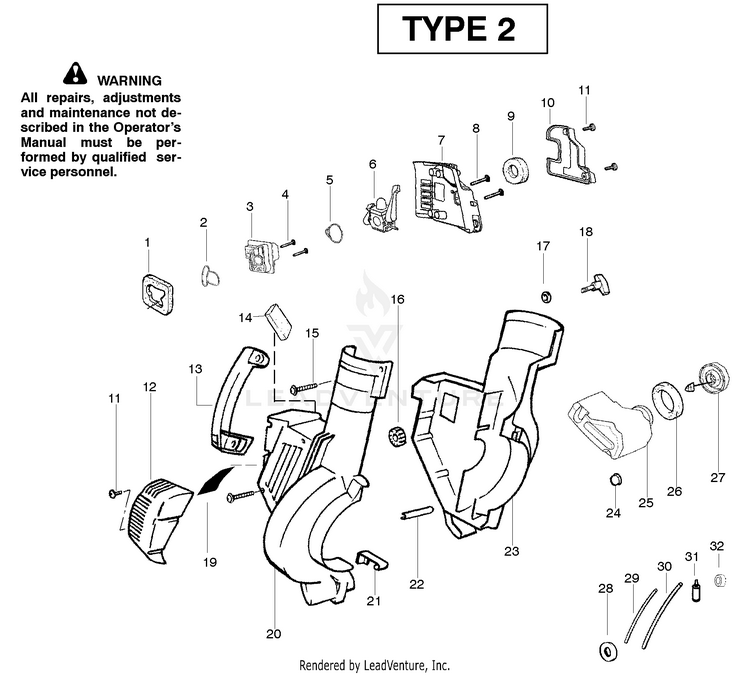

Housing - Type 2

...
...
1
Air Dam (kit) HUS-530071459
...
2
Gasket-Adapter (kit) HUS-530071458
...
3
Carburetor Adaptor HUS-530035561
...
4
Screw HUS-530016309
...
5
Gasket-Carburetor (kit) HUS-530071458
...
6
Kit-Carb Ass’y. Walbro-(WT-606) HUS-530071775
...
7
Air Box HUS-530056629
...
8
Screw-Carb. HUS-530015849
...
9
Filter-Air HUS-530049383
...
10
Cover-Air Filter HUS-530056581
...
11
Screw HUS-530016349
...
12
Guard-Muffler HUS-545085001
...
13
Handle HUS-530095469
...
14
Foam - 71.12mm (kit) HUS-530071459
...
15
Screw HUS-530015886
...
16
Isolator HUS-530049323
...
17
Nut HUS-530015197
...
18
Knob-Tube Clamp HUS-530016322
...
19
Reflector-Heat (kit) HUS-530071458
...
20
Housing-Right HUS-530056682
...
21
Spring-Cover Latch HUS-530402044
...
22
Guide-Starter Rope HUS-530049617
...
23
Housing-Left HUS-530056683
...
24
Isolator-Crankcase HUS-530036792
...
25
Assy-Fuel Tank HUS-545058007
...
26
Gasket-Fuel Tank HUS-530049527
...
27
Assy-Fuel Cap HUS-530057973
...
28
Grommet-Shroud HUS-530049656
...
29
Kit-Line Carb/Purge HUS-530069247
...
30
Kit-Line Tank/Purge HUS-530069216
...
31
Assy-Fuel Pick-up HUS-530095646
...
32
Grommet-Fuel line (kit) HUS-530071459
...
32
Operator Manual Not Shown HUS-530165752
...
32
Warning Decal Not Shown HUS-530057414
...
32
Decal-Start Inst. Not Shown HUS-530057215

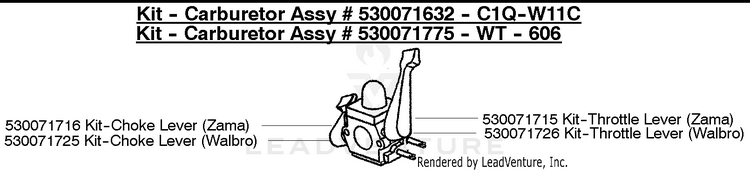

Kit - Carburetor Assy

...
...
530071775
KIT CARB ASSY C1Q-W11 HUS-530071775
...
530071632
Kit-Carb Ass’y. Walbro-(WT-606) HUS-530071775
...
530071716
HUS-530071716
...
530071725
HUS-530071725
...
530071715
HUS-530071715
...
530071726
HUS-530071726

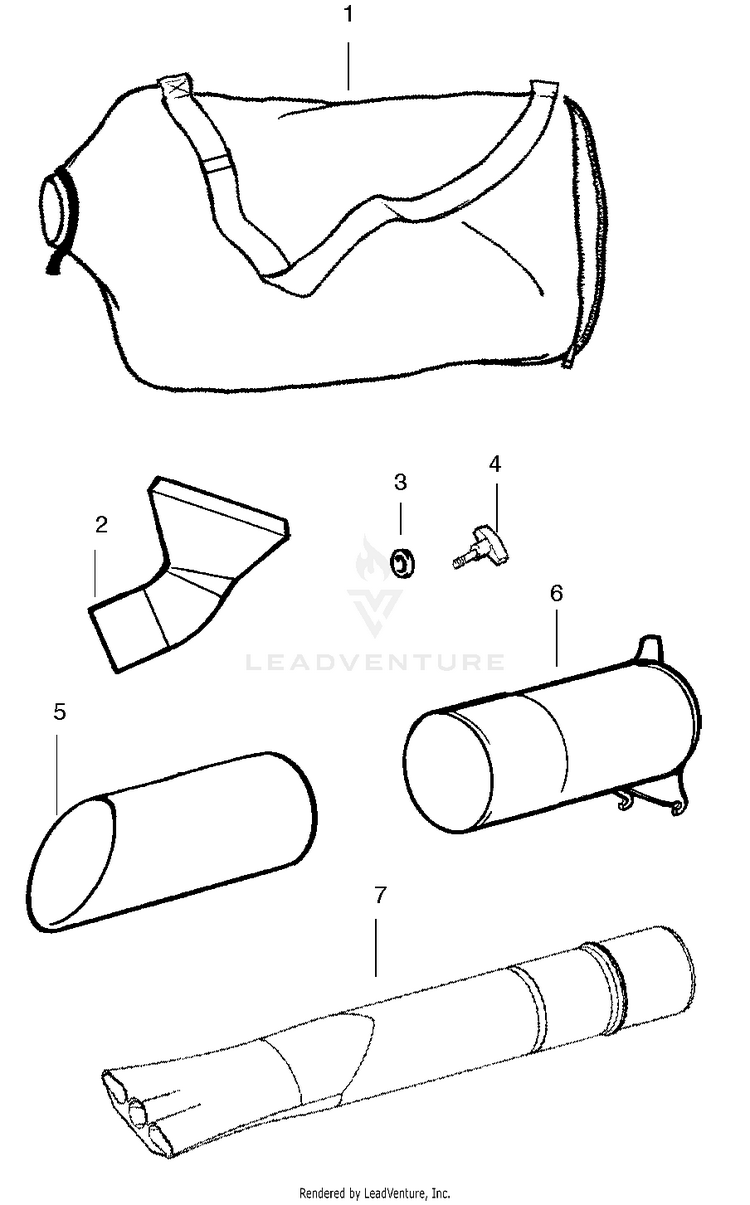

Tube

...
...
1
Assy-Vac. Bag w/strap HUS-530095564
...
2
Tube-Elbow Vac HUS-530095470
...
3
Retainer-Vac Tube Knob HUS-530049686
...
4
Knob HUS-530016322
...
5
Tube-Lower Vac HUS-530094476
...
7
Tube-Blower HUS-530095593
