Husqvarna BV1850LE Type 1 (2006-12) Blower

Model: BV1850LE Type 1 (2006-12)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Engine - Type 1

...
...
1
Spark Plug (RCJ-6Y) HUS-952030249
...
2
Screw HUS-530015953
...
3
Insulator-Heat HUS-530055191
...
4
Screw HUS-530055240
...
5
Deflector-Muffler HUS-530055241
...
6
Kit-Spark Screen (incl. #4) HUS-530071461
...
7
Bolt-Muffler-external HUS-530016369
...
8
Screw-Muffler-Internal HUS-530016341
...
9
Kit-Muffler (Incl. 4-6,8,10) HUS-530071460
...
10
Gasket-Baffle (kit) HUS-530071458
...
11
Gasket-Cylinder (kit) HUS-530071458
...
12
Kit-Cylinder HUS-530071457
...
13
Grommet-Ign. Module HUS-530019182
...
14
Screw-Ignition Module HUS-530016357
...
15
Ignition Module HUS-530035505
...
16
Kit-Piston (Incl. 17 & 18) HUS-530071833
...
17
RING PISTON HUS-545154001
...
18
Retainer-Piston Pin HUS-530015162
...
19
CONNECTING ROD ASSY HUS-530049817
...
20
Seal-Crankcase HUS-530019264
...
21
Bearing-Outer HUS-530055728
...
22
Retainer Ring-C'chaft HUS-530015941
...
23
Spacer-Flywheel HUS-530016190
...
24
Washer HUS-530015149
...
25
FLYWHEEL HUS-530063575
...
26
Assy-Crankcase/Crank shaft (incl. 22,27,29) HUS-530071456
...
27
Assy-Crankcase HUS-530012440
...
28
BEARING BALL 6001 (Incl. 20,21,28) HUS-738210101
...
29
Assy-Crankshaft HUS-530012452
...
30
O-ring-C/case (kit) HUS-530071458
...
31
Cover-Crankcase HUS-530012443
...
32
Screw HUS-530016386
...
33
Foam-219mm (kit) HUS-530071459
...
34
Eyelet-Flange HUS-530029182
...
35
Kit-Rope HUS-530071467
...
36
Handle-Starter HUS-530049488
...
37
Screw-Rope HUS-530016326
...
38
Washer HUS-530016279
...
39
Nut HUS-530626605
...
40
Spring-Return Cover HUS-530402043
...
41
Inlet Door HUS-530049313
...
42
Washer-Belleville HUS-530016240
...
43
Assy-Impeller HUS-530069817
...
44
Seal-Ring HUS-530055106
...
45
Screw HUS-530016349
...
46
Housing-Pulley HUS-530055101
...
47
KIT STARTER SPRING HUS-545008011
...
48
PULLEY, STARTER HUS-530054425
...
49
Fan Housing HUS-530055102
...
50
Screw HUS-530016386
...
51
Foam-365mm (kit) HUS-530071459
...
52
Kit-Gasket (includes #10,11,31, adaptor gas ket, & carb. gasket) HUS-530071458
...
53
Kit-Foam Seals (includes #34,52, air dam & Fuel line grommet) HUS-530071459

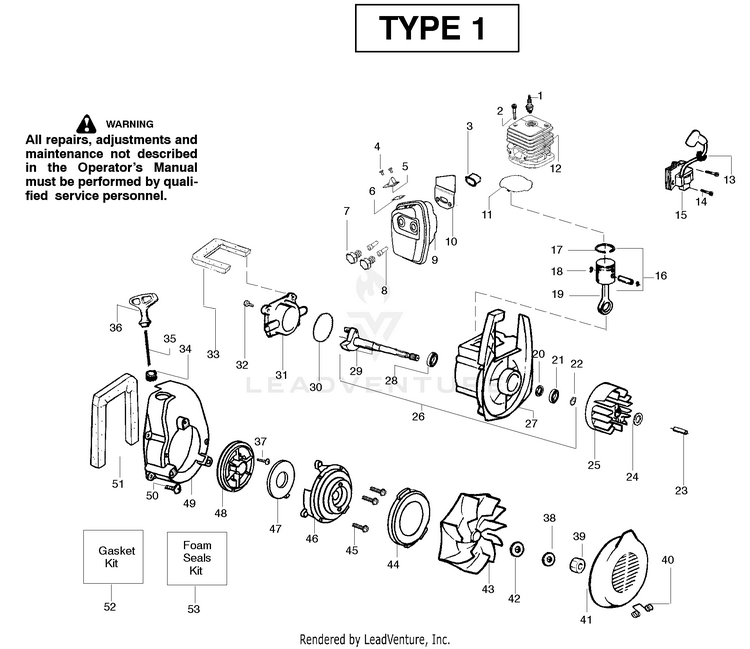

Schematic Image Zoomed
