Husqvarna BS1960AR (1999 & Before) Tractor

Model: BS1960AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

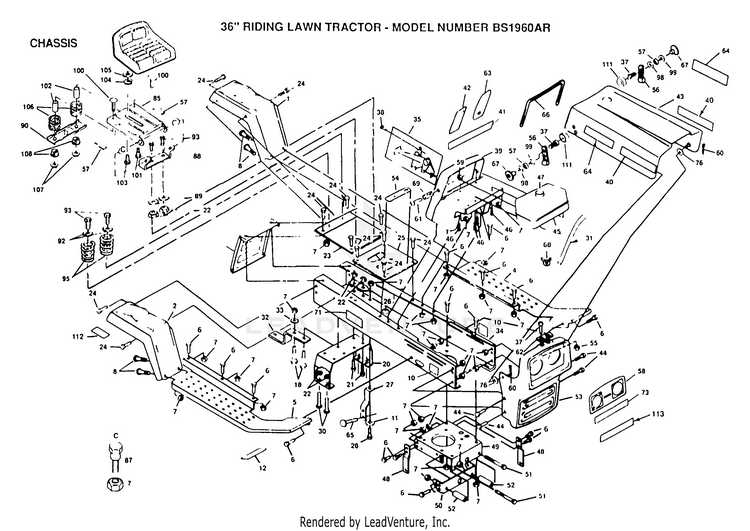

CHASSIS, ENCLOSURES, SEAT

...
...
1
FENDER HUS-388390
...
2
FENDER HUS-389390
...
3
REAR COVER T HUS-120019X
...
4
SUB= 1539J363 HUS-1539J
...
5
SUB= 1540J363 HUS-1540J
...
6
BOLT HUS-74760512
...
7
SUB= 73690500 HUS-73680500
...
8
BOLT HUS-74760508
...
10
DECAL HUS-121847X
...
11
WASHER HUS-19112410
...
12
DECAL T HUS-4900J
...
13
SUB= 140119 HUS-110839X
...
18
BOLT HUS-74780520
...
20
SUPPORT LT HUS-5929J
...
21
BOLT HUS-74760616
...
22
SUB= 73690600 HUS-73680600
...
23
SUB= 122464X HUS-121783X
...
24
SCREW LT HUS-17490508
...
25
CHASSIS CVR W/S HUS-120435X011
...
26
PLATE HUS-5930J
...
27
AXLE LT HUS-120821X
...
28
SUB= 77394 HUS-74760516
...
30
BOLT HUS-74760644
...
31
SUB= 295J HUS-7119J
...
32
TOW HITCH HUS-71205
...
33
WASHER HUS-19122006
...
34
CHASSIS HUS-120394X
...
35
SUB= 132768 HUS-121733X
...
37
SCREW HUS-74191008
...
38
SUB= 17080408 HUS-1708408
...
39
DASH T HUS-120016X
...
40
SUB= 126338X HUS-120626X
...
41
DECAL HUS-655J
...
42
NLA HUS-120086X
...
43
HOOD WELDMENT HUS-104355X390
...
44
NLA HUS-98000131
...
45
TANK.FUEL.LT HUS-73427
...
46
SCREW LT HUS-17760412
...
47
FUEL CAP HUS-74145
...
48
BRAKE ROD BRA T HUS-71190
...
49
ENGINE BASE HUS-1839J
...
50
ROCKER BAR SUPP HUS-71178
...
51
SUB= 64606 HUS-74760848
...
52
ROCKER PIVOT LT HUS-67151
...
53
GRILL T HUS-109734X390
...
54
NLA HUS-74307
...
55
NUT STD HUS-4632H
...
56
HOOD LATCH T HUS-109808X
...
57
STRIP FORM HUS-121251X
...
58
DECAL HEADLIGHT HUS-120755X
...
59
NUT HUS-73731000
...
60
SUB= 3145 HUS-76020312
...
61
SCREW HUS-74981020
...
62
HOOD BUMPER HUS-470J
...
63
DECAL HUS-110788X
...
64
DECAL HUS-111836X
...
65
SCREW HUS-17490512
...
66
SUB= 892J HUS-8937R
...
67
WELDNUT HUS-2029J
...
68
SUB= 123487X HUS-6999R
...
69
SPACER LT HUS-7206J
...
71
DECAL HUS-105833X
...
73
DECAL LT HUS-104290X
...
76
WASHER M HUS-19111216
...
85
SUB= 155925 HUS-121247X
...
87
SUB= 139888 HUS-105529X
...
88
SUB= 140551 HUS-105513X
...
90
BRKT SWITCH HUS-121246X
...
92
WASHER HUS-19131614
...
93
SCREW GTV HUS-17490616
...
95
SPRING T HUS-121067X
...
98
NLA HUS-19060716
...
99
WASHER LT HUS-110357X
...
100
BOLT HUS-72170410
...
101
SUB= 127018X HUS-121144X
...
102
SPACER SPLIT HUS-121249X
...
103
BOLT HUS-74780816
...
104
LOCKWASHER HUS-10040800
...
105
WASHER HUS-19171912
...
106
SPRING HUS-121250X
...
107
NUT T HUS-73900400
...
108
BUSHING HUS-121248X
...
111
SNAP CAP LT HUS-110356X
...
112
SUB= 133796 HUS-106974X
...
113
NAME PLATE HUS-111705X
