Husqvarna BS1960AR (1999 & Before) Tractor

Model: BS1960AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

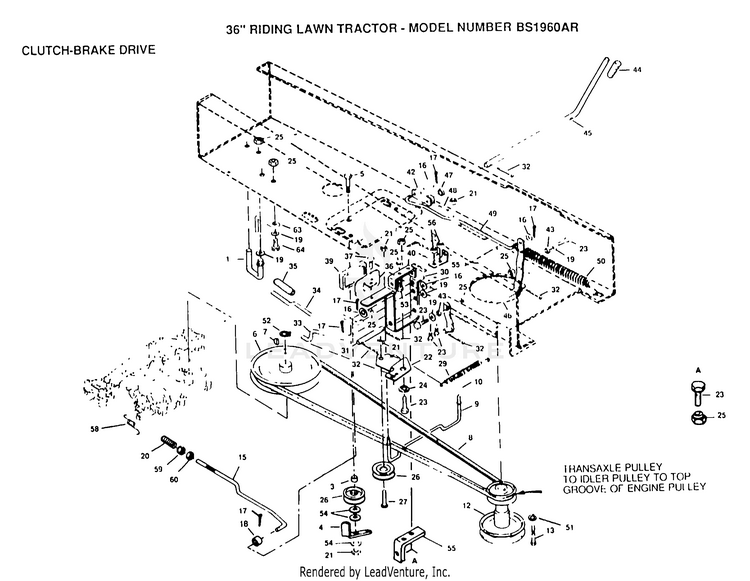

CLUTCH-BRAKE DRIVE, BELT

...
...
1
BELT GUIDE T HUS-5942J
...
3
SPACER HUS-122086X
...
4
BELT KEEPER T HUS-6278J
...
5
SUB= 74930624 HUS-74760624
...
6
PULLEY-TRANS T HUS-5925J
...
7
SUB= 2228M1 HUS-2228M
...
8
SUB= 144200 HUS-121979X
...
9
MID BELT GUIDE LT HUS-71241
...
10
WASHER HUS-19131416
...
12
SUB= 139417 HUS-121351X
...
13
BOLT RER HUS-74770728
...
15
NLA HUS-120297X
...
16
WASHER HUS-19131216
...
17
SUB= 3145 HUS-76020312
...
18
WASHER HUS-19111212
...
19
WASHER M HUS-19111216
...
20
SPRING ROD LT HUS-106888X
...
21
SUB= 73690600 HUS-73680600
...
22
IDLER BRACKET HUS-71201
...
23
BOLT HUS-74760512
...
24
BUSHING HUS-71202
...
25
SUB= 73690500 HUS-73680500
...
26
SUB= 104679X HUS-67400
...
27
SUB= 74930624 HUS-74760624
...
29
IDLER SPRING HUS-2044J
...
30
FOOT PEDAL LT HUS-6048J
...
31
NLA HUS-71223
...
32
PIN COTTER 1/8 HUS-76020416
...
33
CLUTCH ROD HUS-7717J
...
34
PARK BRK ROD T HUS-373J
...
35
GRIP HUS-121860X
...
36
PEDAL PLATE LT HUS-71222
...
37
BOLT HUS-72140506
...
39
FOOT PAD LT HUS-67365
...
40
PEDAL BRACKET T HUS-71199
...
42
NLA HUS-73229
...
43
NLA HUS-71195
...
44
GRIP HUS-121861X
...
45
CLUTCH HANDLE L HUS-71242
...
46
NLA HUS-71191
...
47
WASHER HUS-19171616
...
48
SUB= 2882J HUS-2364J
...
49
BALDE ROD LT HUS-74474
...
50
NLA HUS-71248
...
51
LOCKWASHER HUS-10040700
...
52
SUB= 2267J HUS-12000028
...
53
BOLT HUS-74780512
...
54
WASHER HUS-19131210
...
55
SWITCH BRKT HUS-71204
...
56
SUB= 73690500 HUS-73680500
...
58
SUB= 146682 HUS-110422X
...
59
SUB= 73690600 HUS-73680600
...
60
NUT HUS-73350600
...
63
BELT RETAINER GT HUS-105597X
...
64
BOLT HUS-74760652
