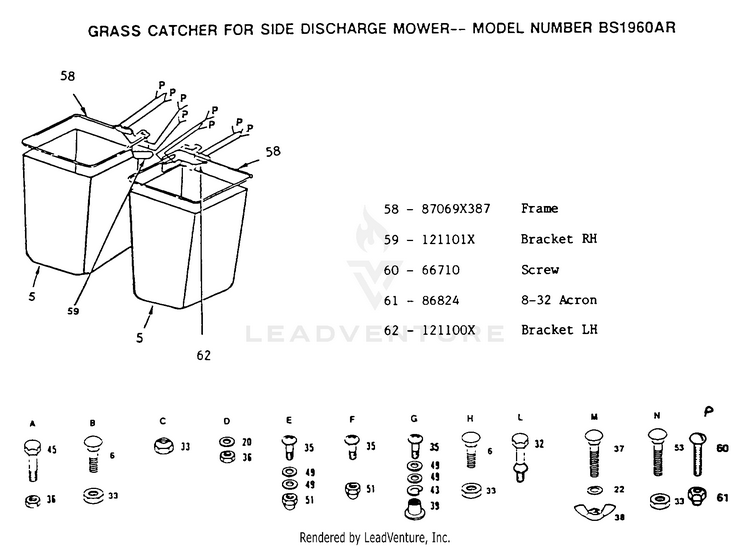

Husqvarna BS1960AR (1999 & Before) Tractor

Model: BS1960AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

HARDWARE

...
...
5
GRASS BAG RB HUS-86575
...
6
BOLT HUS-72110505
...
20
WASHER HUS-19091016
...
22
WASHER HUS-19091408
...
32
LATCH RB HUS-120203X
...
33
SUB= 73690500 HUS-73680500
...
35
TRUSS HEAD MACHINE SCREW HUS-13328
...
36
SUB= 73690400 HUS-73680400
...
37
BOLT HUS-72110404
...
38
SUB= 146525 HUS-123198X
...
39
WELDNUT HUS-2029J
...
43
LOCKWASHER HUS-10071000
...
45
SUB= 74780414 HUS-74780412
...
49
WASHER HUS-19070818
...
51
NUT HUS-123195X
...
53
BOLT CRT HUS-72110508
...
58
FRAME HUS-87069X387
...
59
BRACKET.FRAME HUS-121101X
...
60
PAN HEAD SCREW HUS-66710
...
61
NUT ACORN RB HUS-86824
...
62
BRACKET FRAME HUS-121100X
