Husqvarna BC3150 (2007-02) Trimmer/Edger

Model: BC3150 (2007-02)

Save Part Not Listed?
product name

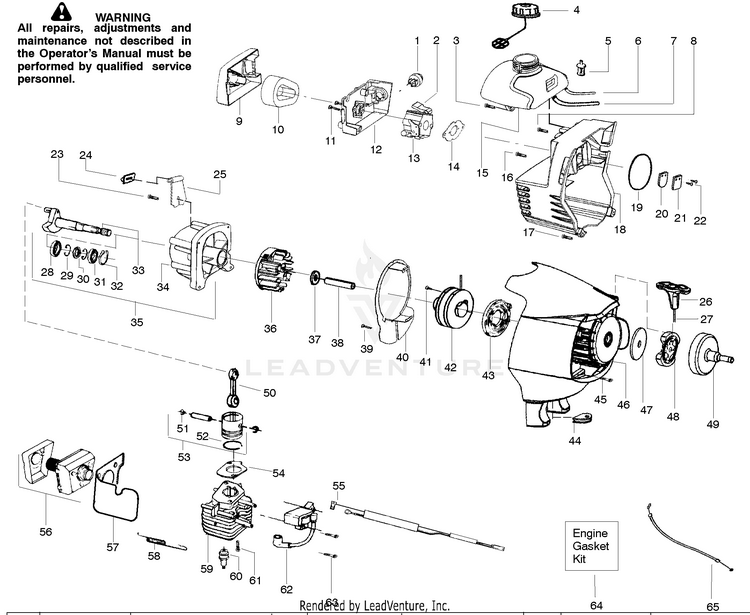

Engine

...
...
1
Bulb-Purge HUS-530047721
...
2
Kit-Choke Lever HUS-530071717
...
3
Screw-tank HUS-530015843
...
4
Cap-Fuel w/ret. HUS-530057736
...
5
Assy-Fuel pickup HUS-530095646
...
6
Kit-Fuel line HUS-530069247
...
7
Kit-Fuel/Purge line HUS-530069216
...
8
Screw HUS-530015775
...
9
Cover-Air box HUS-530150088
...
10
Filter-Air HUS-530054946
...
11
Screw-Carb. HUS-530015849
...
12
Box-Air HUS-530150080
...
13
Assy-Carb(WT628) HUS-530071637
...
14
Gasket-Carb.(kit) HUS-530071401
...
15
Assy-Fuel Tank HUS-545075305
...
16
Screw-Crankcase HUS-530015771
...
17
Screw-Shroud HUS-530015952
...
18
Shroud HUS-530150089
...
19
O-ring-Shroud (kit) HUS-530071401
...
20
Valve-Reed HUS-530027593
...
21
Stop-Reed HUS-530054596
...
22
SCREW 6-19X.437 HUS-545227101
...
23
Screw-Retainer HUS-530015875
...
24
Isolator-Tank HUS-530055492
...
25
Ret.-Tank HUS-530054941
...
26
Handle-Starter HUS-530058742
...
27
Kit-Rope HUS-530071325
...
28
Bearing-Inner HUS-530032103
...
29
Retainer HUS-530015787
...
30
Seal HUS-530019158
...
31
Bearing-Outer HUS-530032102
...
32
Ret.-Crankshaft HUS-530015789
...
33
Assy-Crankshaft HUS-530028807
...
34
Assy-Crankcase (Incl. 28-31) HUS-545081901
...
35
Assy-C'case/C'shaft (Incl. 32,33,34) HUS-545006037
...
36
Assy-Flywheel HUS-530055524
...
37
Washer HUS-530016030
...
38
Spacer HUS-530055620
...
39
Screw-Baffle HUS-530015775
...
40
Plate-Baffle HUS-545115201
...
41
Screw-Rope HUS-530016391
...
42
Kit-Pulley (Incl.41) HUS-530071399
...
43
KIT STARTER SPRING HUS-545008011
...
44
Grommet HUS-530019182
...
45
Screw HUS-530016386
...
46
Assy.-Fan Housing HUS-530056226
...
47
Washer-Clutch HUS-530094189
...
48
Assy-Clutch HUS-530055122
...
49
Drum-Clutch HUS-530028799
...
50
Assy-Conn. Rod HUS-530010960
...
51
Ret.-Piston pin HUS-530015162
...
52
Ring-Piston HUS-530012594
...
53
Kit-Piston (Incl. 51,52) HUS-530071998
...
54
Gasket-Cylinder(kit) HUS-530071401
...
55
Assy-Leadwire HUS-530058846
...
56
Kit-Muffler HUS-530069310
...
57
Shield HUS-530058957
...
58
Spring-Muffler HUS-530036409
...
59
Kit-Cylinder HUS-530071582
...
60
Plug-Spark(RCJ-6Y) HUS-952030249
...
61
Bolt-Cyl. 1/4-20" HUS-530001624
...
62
Module-Ignition HUS-530039218
...
63
Screw-Module HUS-530016357
...
64
Kit-Gasket (Incl. 14,19, 54) HUS-530071401
...
65
Assy-Throttle cable HUS-545026801

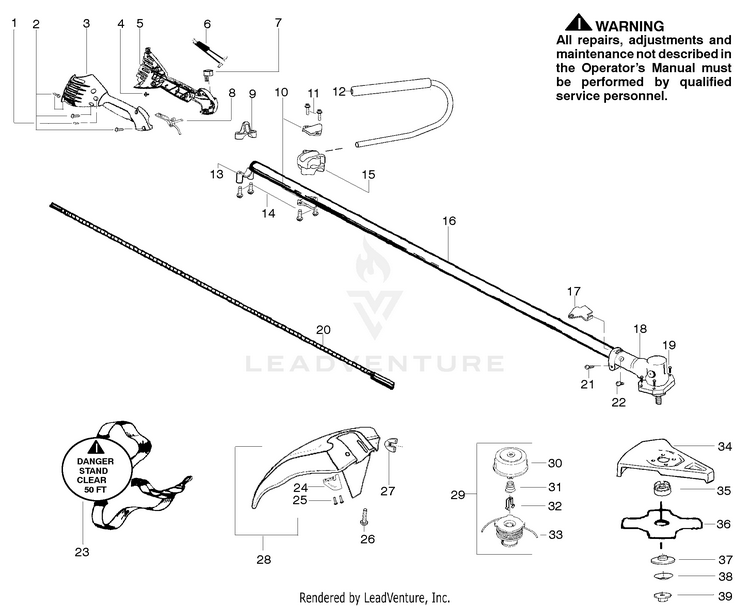

Handle & Controls

...
...
1
Screw HUS-530015886
...
2
Screw HUS-530015886
...
3
Hsg.-Throttle-right HUS-545019001
...
4
Screw-Cable Ret. HUS-530016326
...
5
Hsg.-Throttle-left HUS-545018801
...
6
Assy-Wire HUS-530058843
...
7
Kit-Switch HUS-530069572
...
8
Trigger-Throttle HUS-545017702
...
9
Clamp-Harness (upper) HUS-530057986
...
10
Clamp-Bracket HUS-530058563
...
11
Screw HUS-530015886
...
12
Kit-Handlebar Assy. (Incl. grip,cap,decal) HUS-530071993
...
13
Clamp-Harness (lower) HUS-530057987
...
14
Screw HUS-530015940
...
15
Clamp-Handlebar HUS-530058765
...
16
Kit-Shaft Assy. HUS-530071992
...
17
Bracket-Shield HUS-530057554
...
18
Gearbox HUS-530096100
...
19
Screw HUS-530016312
...
20
Shaft-Flex HUS-530096203
...
21
Screw HUS-530016014
...
22
Screw HUS-530016224
...
23
Shoulder Strap HUS-530094417
...
24
Limiter-Line HUS-530052285
...
25
Screw HUS-530015814
...
26
Bolt HUS-530015820
...
27
Wingnut HUS-530401992
...
28
Kit-Shield Assy. (Incl. 24,25) HUS-530071823
...
29
Accy-Cutting Head (Incl. 30,31,32,33) HUS-952711550
...
30
Assy-Hub HUS-530095772
...
31
Spring HUS-530053241
...
32
Retainer HUS-530401957
...
33
Accy-Wound Spool HUS-952711551
...
34
Kit-Metal Shield HUS-530071383
...
35
Dust cup HUS-530095815
...
36
ASSY BLADE BRUSH 20MM HUS-530054867
...
37
Washer HUS-530095816
...
38
Washer-Belleville HUS-530016240
...
39
Nut-Flange HUS-530015793
...
39
Operator Manual Not Shown HUS-545117593
...
39
Decal-Shaft Warning Not Shown HUS-530055349
...
39
Wrench-Hex 5/32" Not Shown HUS-530031159
