Husqvarna BC30B (2006-05) Trimmer/Edger

Model: BC30B (2006-05)

Save
 Part Not Listed?Part Not Listed?
product name

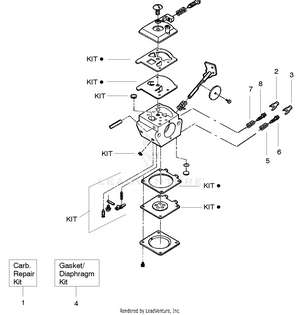

Carburetor

...
...
1
Carburetor Repair Kit (KIT= Indicates Contents) PLN-530069829
...
2
Limiter Cap (High-Red) PLN-530038318
...
3
Limiter Cap (Low-Blue) PLN-530038317
...
4
Gasket/Diaphragm Kit These parts are illustrated for clarity. Order complete assembly. PLN-530069844
...
5
Needle Spring-Low Speed PLN-530035293
...
6
Needle-Low Speed PLN-530035433
...
7
Needle Spring-High Speed PLN-530035295
...
8
Needle-High Speed PLN-530035388

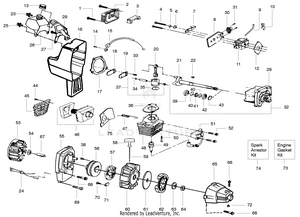

Engine

...
...
1
Screw PLN-530015773
...
2
Air Filter Cover PLN-530027529
...
3
Air Filter PLN-530027530
...
4
Screw PLN-530015849
...
5
Choke Spacer PLN-530015852
...
6
Washer PLN-530015254
...
7
Choke Shutter PLN-530038103
...
8
Air Filter Plate PLN-530037930
...
9
Fuel Line Kit PLN-530069247
...
10
Assy-Fuel Pick-up PLN-530095646
...
11
Carburetor Ass'y. Kit (Incls. Limiter Caps) PLN-530069651
...
12
Gasket-Carburetor PLN-530019156
...
13
Fuel Cap Ass'y. PLN-530014347
...
14
Screw PLN-530015775
...
15
Throttle Cable Ass'y. PLN-530047040
...
16
Shroud PLN-530027923
...
17
Gasket-C'case/Shroud PLN-530019154
...
18
Reed Valve PLN-530027593
...
19
Reed Stop PLN-530027594
...
20
Connecting Rod Ass'y. PLN-530010960
...
21
Crankshaft Ass'y. PLN-530010934
...
22
Flywheel Key PLN-530015126
...
23
Screw PLN-530015843
...
24
Leadwire/Grommet Ass'y. PLN-530047145
...
25
Screw PLN-530015771
...
26
Assy-Fuel Tank PLN-530038166
...
27
Screw PLN-530016386
...
28
Crankcase Ass'y. (Incls. 39-42) PLN-530014016
...
29
Bracket-Fuel tank PLN-530029370
...
30
Bulb Ass'y. PLN-530038874
...
31
Screw PLN-530016091
...
32
Assy-C'case/C'shaft (Incls.21, 28 & 39-43) PLN-530071705
...
33
SCREW 6-19X.437 PLN-545227101
...
34
Piston Pin Retainer PLN-530015162
...
35
Piston Ring PLN-530025875
...
36
GASKET CYL W/ ADHESIVE PLN-530019267
...
37
Piston Kit (Incls. 34, 35 & Pin) PLN-530069899
...
38
Screw PLN-530016080
...
39
Inner Bearing PLN-530032103
...
40
Retaining Ring PLN-530015787
...
41
Crankshaft Seal PLN-530019158
...
42
Outer Bearing PLN-530032102
...
43
Retaining Ring-C'shaft PLN-530015789
...
44
Screw PLN-530015717
...
45
Muffler Guard PLN-530027781
...
46
Muffler Kit PLN-530069310
...
47
Muffler Spring PLN-530036409
...
48
Cylinder Kit PLN-530069626
...
49
Spark Plug (RCJ-8Y) PLN-952030201
...
50
Screw PLN-530001624
...
51
Ignition Module PLN-530039134
...
52
Screw PLN-530015816
...
53
Flywheel Ass'y. PLN-530039189
...
54
Washer PLN-530016030
...
55
Fan Housing PLN-530027947
...
56
Kit-Starter Pulley (Incls. 38) PLN-530071387
...
57
SPRING STARTER PLN-545008015
...
58
Starter Handle PLN-530027569
...
59
Rope Kit PLN-530069232
...
60
Pulley Housing Ass'y. PLN-530014009
...
61
Washer-Clutch PLN-530094189
...
62
Clutch Ass'y. Kit PLN-530069254
...
63
Washer-Bevel PLN-530015796
...
64
Nut PLN-530001733
...
65
Clutch Housing PLN-530014017
...
66
Screw PLN-530015767
...
67
Spacer-Clutch PLN-530027511
...
68
Screw PLN-530015770
...
69
Screw PLN-530015769
...
70
Screw PLN-530015496
...
71
Retainer PLN-530027523
...
72
Locknut PLN-530015768
...
73
Engine Gasket Kit (Incls. 12, 17 & 36) PLN-530069276
...
74
Spark Arrestor Kit PLN-952701612
...
75
Shield PLN-530058957

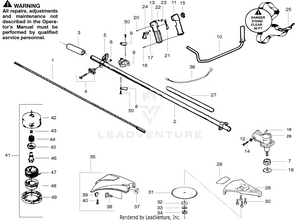

Shaft

...
...
1
Flex-Shaft-57" PLN-530094566
...
2
Drive Shaft Housing PLN-530069783
...
3
Pad-Drive Shaft PLN-530027706
...
4
HANDLE KIT PLN-530069347
...
5
Clamp Harness Assy. PLN-530094686
...
6
Nut PLN-530015197
...
7
Dust Cup PLN-530016166
...
8
Handlebar Bracket PLN-530094572
...
9
Clamp-Handlebar PLN-530012207
...
10
Handlebar Ass'y. PLN-530047139
...
11
HANDLE PLN-502208507
...
12
Lockwasher-Locator PLN-530015328
...
13
Throttle Hsg. Right PLN-502208602
...
14
Screw-Locator PLN-530016140
...
15
Rocker Switch PLN-503718201
...
16
Screw PLN-503210738
...
17
SPRING PLN-503794101
...
18
Screw-Pinch Clamp PLN-530015650
...
19
Washer-Blade Ret. PLN-530016167
...
20
Screw PLN-503210719
...
21
Throttle Lockout PLN-502199403
...
22
Spring Throttle Lock PLN-530403152
...
23
Throttle Lock PLN-502209602
...
24
Throttle Trigger PLN-502199203
...
25
Shoulder Strap PLN-530094417
...
26
Blade Shield Kit PLN-530069780
...
27
Shaft Warning Decal PLN-530038908
...
28
Assy-Gearbox PLN-530071585
...
29
Decal Blade Direction PLN-530049211
...
30
Screw PLN-530016141
...
31
ASSY BLADE BRUSH 20MM PLN-530054867
...
32
Washer-Flat PLN-530015792
...
33
Washer-Belleville PLN-530016240
...
34
Nut-Flange PLN-530015793
...
35
Shield Kit Ass'y. (Incls. 37-40) PLN-530069779
...
36
Wire Harness Ass'y. PLN-530053255
...
37
Wingnut PLN-530401992
...
38
Bolt PLN-530015820
...
39
Line Limiter PLN-530095387
...
40
Screw PLN-530015886
...
41
Cutting Head Ass'y. (Incls. 42-49) PLN-952701643
...
42
ASSY-HUB W/LN SAVER PLN-530071295
...
43
Line Saver PLN-530093898
...
44
Spring PLN-530340007
...
45
Cap Spring PLN-530328929
...
46
ASSY-HUB W/LN SAVER PLN-530071295
...
47
Accy-Spool w/line PLN-952701589
...
48
Release Button PLN-530401183
...
49
Cover PLN-530092133
...
50
Screw PLN-530015791
...
50
Operator Manual Not Shown PLN-530085757
...
50
Hex Wrench (3/16) Not Shown PLN-530031098
...
50
Hex Wrench (5/32) Not Shown PLN-530031159
...
...
...
