Husqvarna Auto Mower 220 AC (2010-01) Auto Mower

Model: Auto Mower 220 AC (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

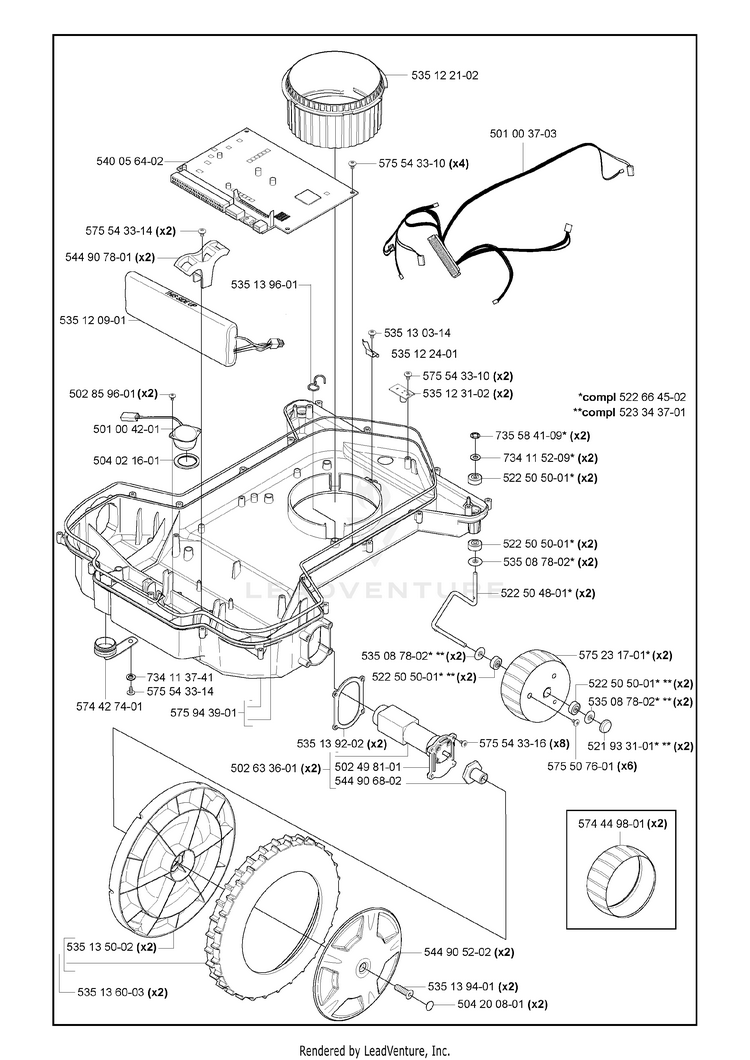

Drive

...
...
540056402
PRINTED CIRCUIT ASSY PCBA AM22 HUS-592852001
...
575543314
SCREW 14MM HUS-575543314
...
544907801
BRACKET HUS-544907801
...
535120901
BATTERY HUS-535120902
...
535139601
HOLDER HUS-535139601
...
502859601
SCREW HUS-502859601
...
501004201
HORN HUS-501004201
...
504021601
SEALING HUS-504021601
...
575543314
SCREW 14MM HUS-575543314
...
734113741
WASHER HUS-734113741
...
574427401
SERVICE PLUG HUS-574427401
...
575943901
CHASSIS LOWER HUS-575943901
...
535139202
GASKET HUS-535139203
...
502633601
HUS-502633601
...
544906802
HUB HUS-544906802
...
502498101
HUS-502498101
...
535135002
WHEEL LOGO ADDED HUS-535135002
...
535136003
GEAR WHEEL HUS-535136003
...
535139401
SCREW HUS-535139401
...
544905202
HUB CAP HUS-544905202
...
504200801
COVER WASHER HUS-504200801
...
574449801
WHEEL RUBBER TYRE HUS-574449801
...
575507601
SCREW ITXPANT PT 40 THREAD HUS-575507601
...
521933101
COVER WASHER HUS-521933101
...
575543316
SCREW HUS-575543316
...
535087802
WASHER HUS-535087802
...
522505001
BALL BEARING HUS-522505001
...
575231701
WHEEL, FRONT HUS-575231701
...
535087802
WASHER HUS-535087802
...
522505001
BALL BEARING HUS-522505001
...
522505001
BALL BEARING HUS-522505001
...
522505001
BALL BEARING HUS-522505001
...
522504801
SPINDLE HUS-522504801
...
535087802
WASHER HUS-535087802
...
735584109
LOCKWASHER STARLOCK SS 6MM GEO HUS-576019402
...
734115209
WASHER 6.4X12X1.6 SS HUS-734115209
...
522664502
KIT 6MM AXLE KIT - STANDARD WH HUS-522664502
...
523343701
BEARING KIT 6MM AXLE HUS-523343701
...
535123102
Circuits HUS-592852201
...
575543310
SCREW SILVER 10MM HUS-575543310
...
535130314
SCREW HUS-535130314
...
535122401
SPRING HUS-535122401
...
575543310
SCREW SILVER 10MM HUS-575543310
...
535122102
CUTTING HEIGHT NUT HUS-535122102
...
501003703
MAIN WIRING HUS-501003703
